INSTRUCTIONS
INSTALLATION
CHEMICAL FEEDER
EQUIPMENT
PRIMING CHEMICAL
FEEDER PUMPS
WARNING: Some of the
chemicals used in
dishwashing may cause
chemical burns if they
come in contact with skin.
Wear protective gear when
handling these chemicals.
If any skin comes in
contact with these
chemicals, immediately
follow the instructions
provided with the
chemicals for treatment.
TO PREPARE
CHEMICAL FEEDER
PUMPS FOR
OPERATION
This equipment is not recommended for use with deionized water or other aggressive uids.
Use of deionized water or other aggressive uids will result in corrosion and failure of
materials/components and will void the manufacturer's warranty.
The bottom of the chemical container cannot be located any higher than 8” from the
oor. If the unit is equipped with the 6” or 18” table stand, the highest position will be
14” or 26” respectively from the oor.
This dishmachine is supplied with detergent and rinse-aid chemical feeder pumps.
Locate the open ends of the chemical tubes with the tube stiffeners and place each
one in the appropriate container.
A. Red Tubing = Detergent B. Blue Tubing = Rinse-aid
Chemical feeder pumps need priming when the machine is rst installed or if the
chemical lines have been removed and air is allowed to enter. CAUTION! Water
must be in the sump and wash tank before dispensing chemicals. Sanitizer in
concentration is caustic and might cause damage without dilution.
1. Verify that the proper chemical tube stiffener inlet is in the proper container.
2. Use the prime buttons located on the control panel at the bottom of the unit to
prime each pump. The buttons are clearly marked as to which chemical feeder
pump they prime.
3. To prime the pumps, press the button until the chemical can be observed entering
the wash tank.
4. Detergent is dispensed as required during the wash cycle by the timer. The
amount of detergent may need to be increased or decreased depending upon water
quality and type of detergent.
5. Rinse additive is dispensed as required into the nal rinse. The amount of rinse
additive may need to be adjusted depending upon water hardness and results.
6. Please refer to "Programming Instructions for Chemical Feeder Pumps" on the
next page for instructions on adjusting the chemical feeder
pumps on the Programmable Logic Controller (PLC).
WARNING: Chlorine-
based sanitizers can
be detrimental to this
machine if the chemical
solution is too strong.
See a chemical supplier
to ensure the dispenser is
set-up correctly.

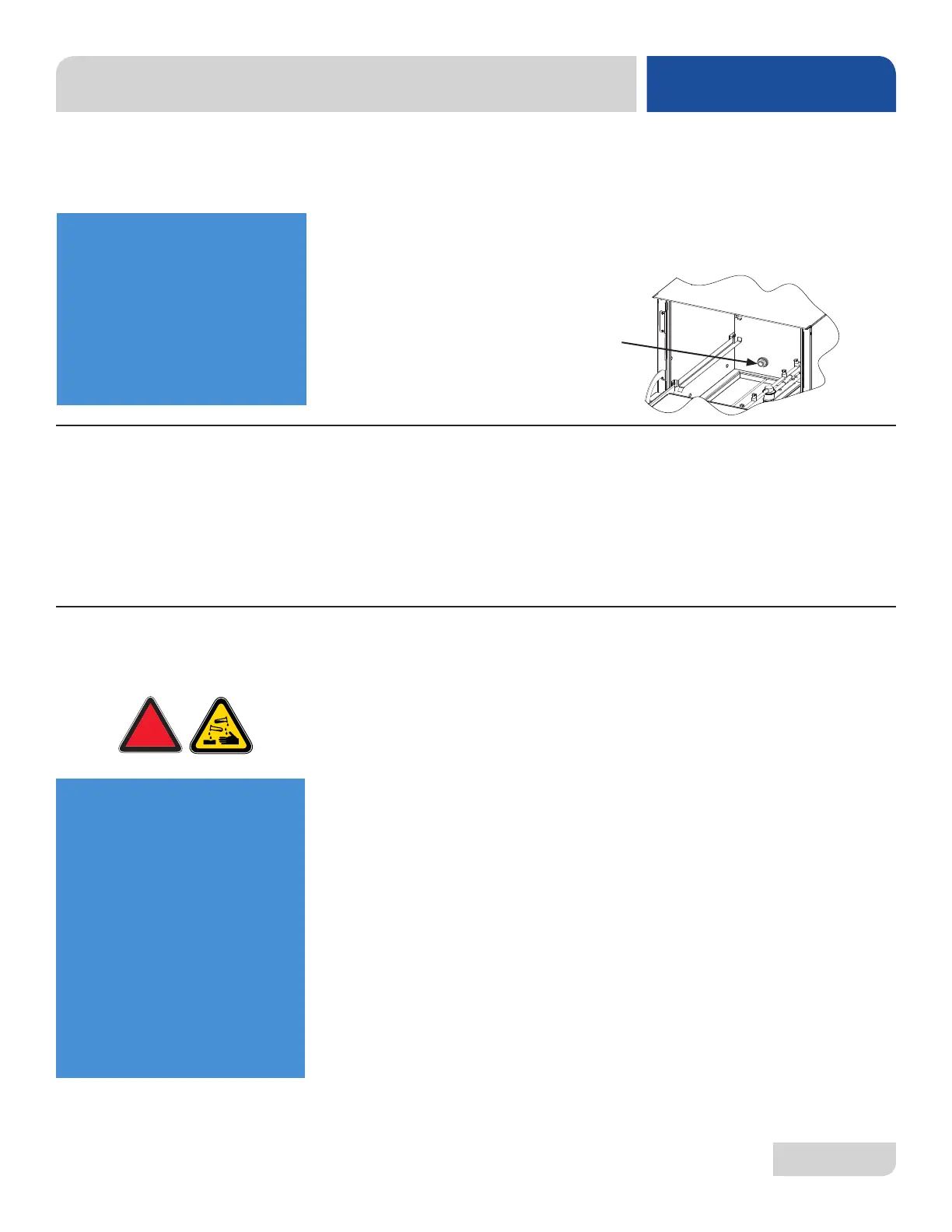

CAUTION: Chemical tube must not
extend past port into wash chamber.
!
WARNING
To Next Page
