Jackson AVENGER HT-E - Rinse Manifold Assembly

43
07610-004-04-18-R
2
3
6
7
3
1
5
4

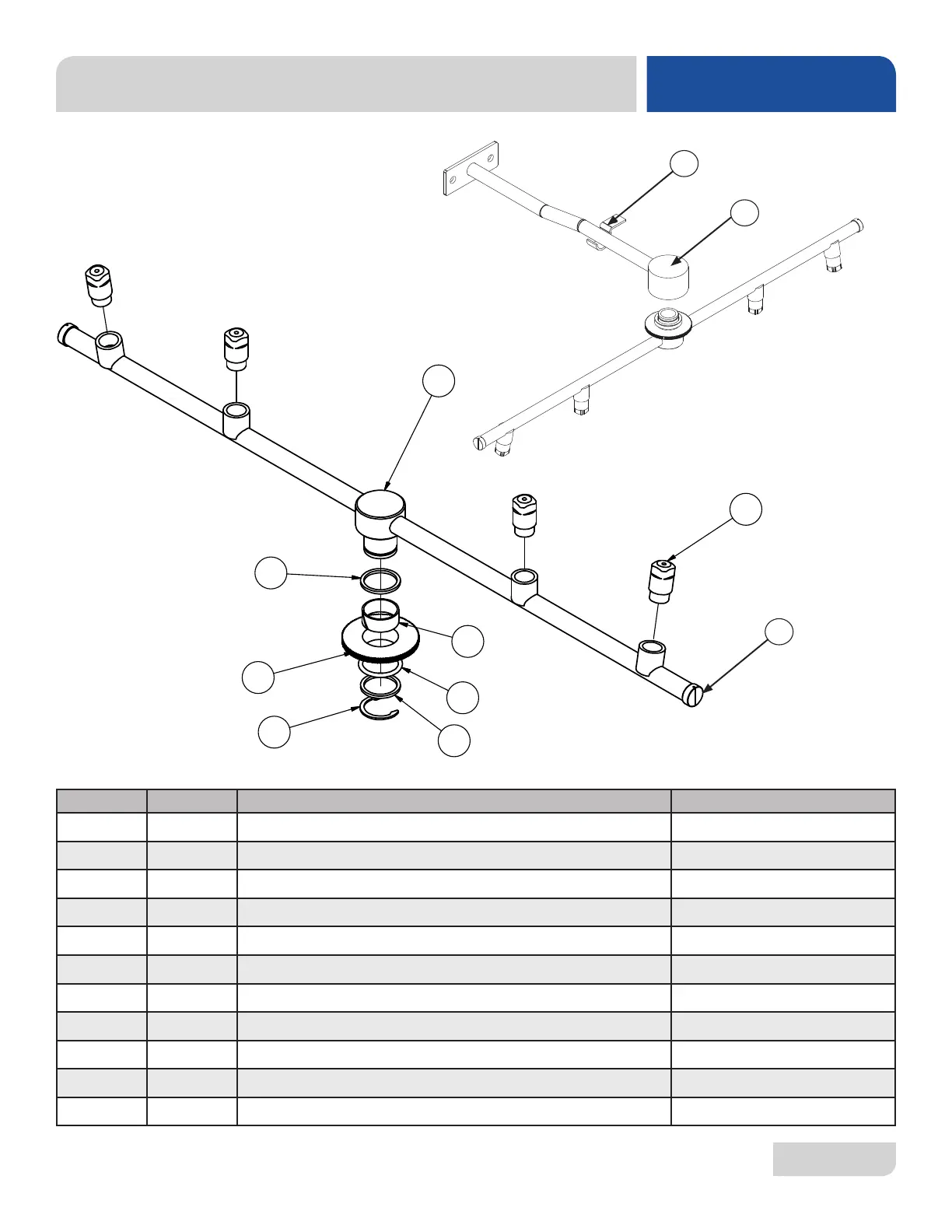

RINSE MANIFOLD ASSEMBLY
PARTS
ITEM QTY DESCRIPTION PART NUMBER
2 Complete Rinse Arm Assembly 05700-004-01-56
1 2 Rinse Arm 05700-004-05-23
2 8 Nozzle 04730-004-01-07
3 2 Washer, Rinse Arm 05330-011-42-10
4 2 Bearing, Rinse Arm 03120-004-12-13
5 2 Bushing, Rinse Head 05700-021-33-84
6 2 O-ring, Silicon 05330-002-60-69
7 2 Retaining Ring, Rinse Head Bushing 05340-112-01-11
8 2 Rinse Hub 05700-004-03-77
9* 1 Pipe Clamp 5/8" 05700-000-35-06
10 4 Rinse Arm End-cap 04730-111-60-41
8
9*
*Only present
on the upper
rinse hub.
10
RINSE ARM BEARING KIT
06401-004-34-89
