Jackson AVENGER HT-E - 208;230 V Control Box Parts List

35
07610-004-04-18-R

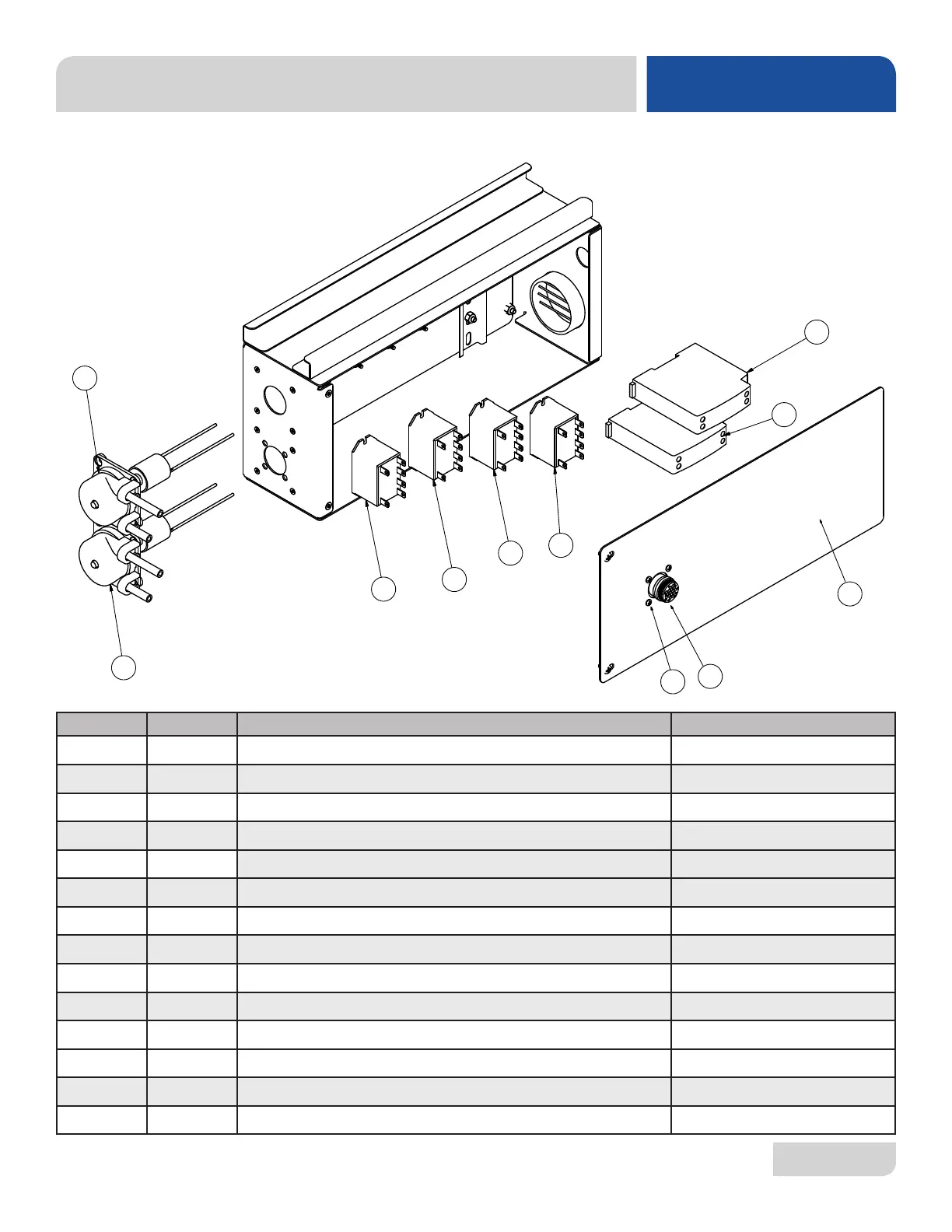

208/230 V CONTROL BOX
PARTS
C
1
H
C
1
H
C
2
H
C
3
11
5
10
4
2
8
11
7
1
12
VIO/WHT
ORG/WHT
WHT/RED
BLUE/WHT
9
2
2
5
3
3
5
5
5
13
14
6
ITEM QTY DESCRIPTION PART NUMBER
1 1 Control Box 05700-004-11-32
2 2 Power Supply, 100-240 VAC, 12 VDC, 1.2 A, 15 Watt 05950-004-11-16
3 2 Peri-pump, 36 RPM, 24 VDC 04320-004-09-56
4 2 Terminal Board 05940-021-94-85
5 4 Relay 05945-004-10-48
6 1 Control Box Cover 05700-004-11-39
7 1 Plug, 2.6" Louvered 05975-003-77-39
8 1 Din Rail, 3" Long 05700-011-84-65
9 1 Panel 05700-004-24-44
10 8 Lock Nut 6-32 Hex w/ Nylon Insert 05310-373-03-00
11 9 Lock Nut 10-24 S/S Hex w/ Nylon Insert 05310-373-01-00
12 2 Screw, 10-32 x 3/8" Phillips Pan Head 05305-173-26-00
13 4 Screw, 3/8" Pan Head 05305-171-02-00
14 1 Connector 05935-004-03-49
