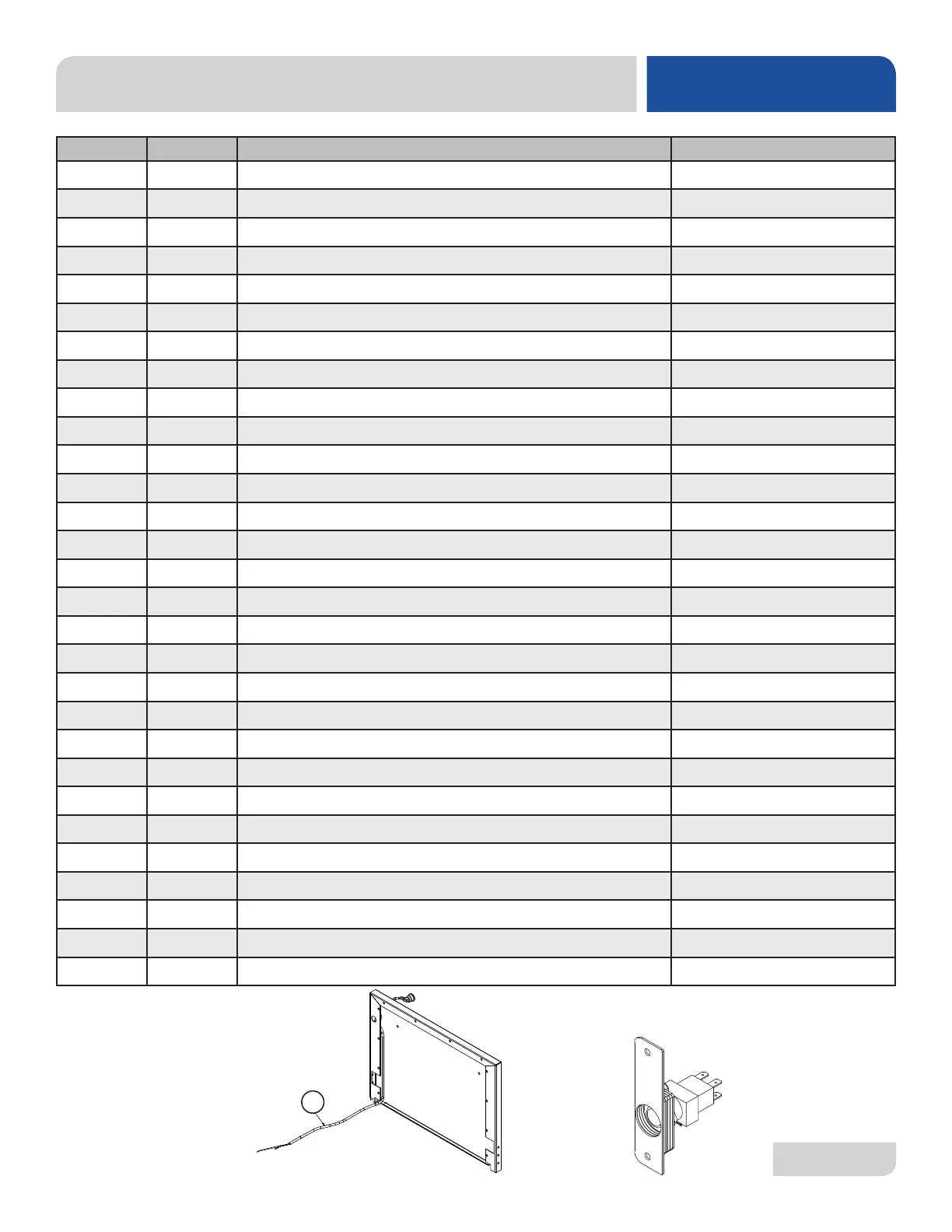

Jackson AVENGER HT-E - Door Assembly Parts List

39
07610-004-04-18-R
DOOR ASSEMBLY
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Flush Mount Plug 05975-004-04-36
2 12 10-32 x 1/2” Phillips Pan Head Screw 05305-173-12-00
3 1 Door Channel Seal 05700-003-55-49
4 2 Left and Right Door Gasket 05330-003-58-36
5 1 Top Door Gasket 05330-003-58-35
6 1 Inner Door 05700-003-33-21
7 1 Start Button 05930-004-04-22
8 1 Door Handle 05700-003-26-62
9 2 1/4-20 x 3/8” Hex Head Bolt 05305-274-20-00
10 1 Outer Door Weldment 05700-003-33-37
11 1 Door Bafe 05700-003-33-38
12 2 Retaining Plate 05700-011-44-37
13 2 Hinge Spacer 05700-003-33-42
14 1 Left Hinge Weldment 05700-003-32-71
15 6 1/4-20 x 1 1/2” Hex Head Screw 05305-173-23-00
16 2 Door Hinge Stop 05700-003-32-55
17 1 Door Magnet 05930-002-88-42
18 2 6/32" Locknut 05310-373-03-00
1 Right Hinge Weldment (not shown) 05700-003-32-72
2 10-32 x 1/4” Screw (not shown) 05305-173-01-00
2 Washer (not shown) 05311-174-01-00
19 1 Door Reed Switch 05930-003-31-44
20 2 Door Spring Assembly 05700-003-32-85
21 1 2 Wire AVG Door Switch Cable 05700-004-08-26
22 1 Left Shroud 05700-003-37-04
23 1 Switch Mount Plate 05700-003-33-54
24 1 Door Switch and Bracket Assembly 05700-003-32-21
25 2 Scrap Basket 05700-004-09-43
26 1* Tub Gasket 05330-004-14-08
PART NUMBERDESCRIPTIONQTYITEM
05340-003-32-37SPRING, DOOR 11
05700-003-32-84TUBE, DOOR SPRING22
PARTS LIST
21
*Gasket will be received as one
5 1/2' piece and must be cut into
three cut-to-t pieces.
Complete Switch Mount Assembly
06401-004-47-76
