JACOBSEN 405 Series: CH
MAINTENANCE AND PARTS MANUAL

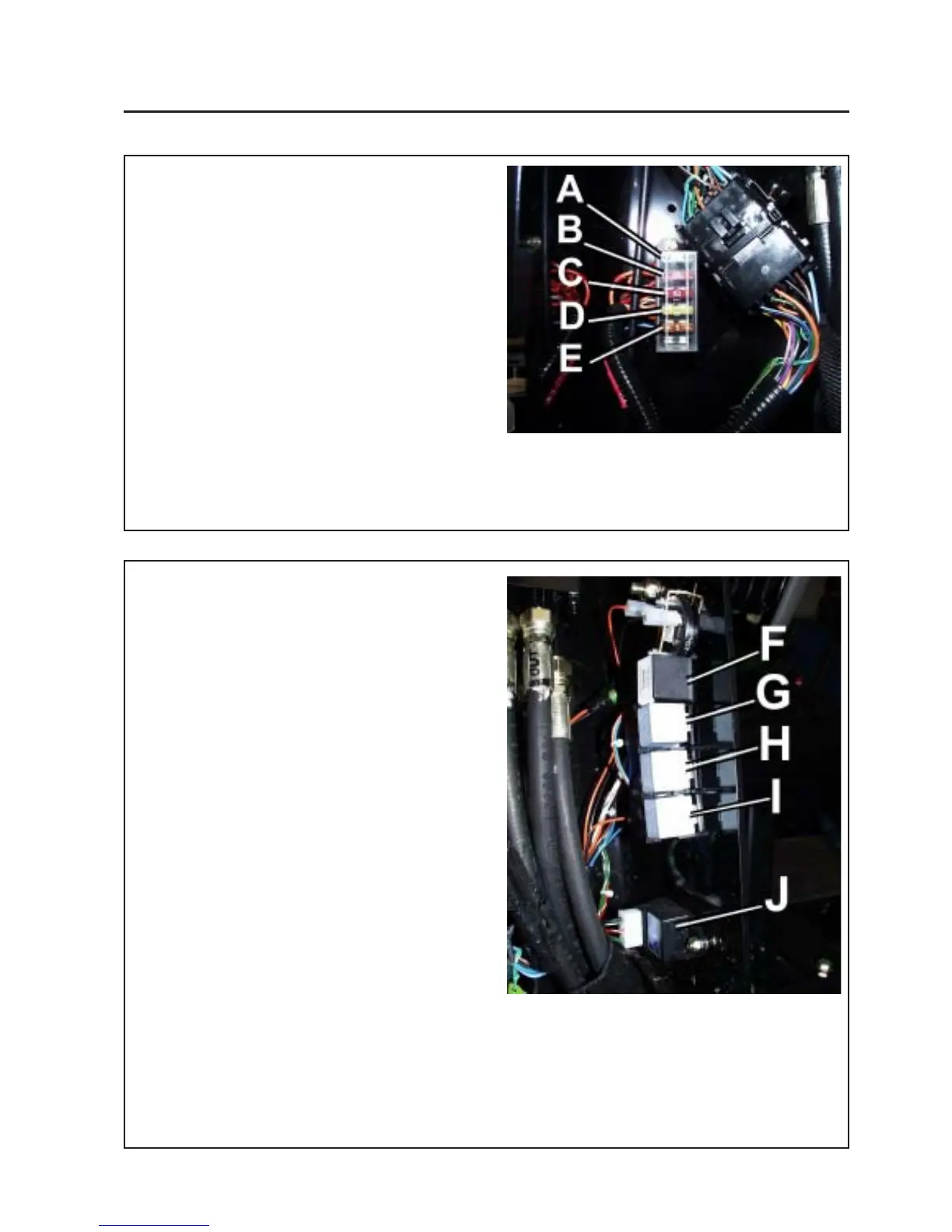

8.4 FUSES AND RELAYS/COMPONENTS
FUSES (STEER TOWER)
FUSE A - 30 AMP (IGNITION) WIRE COLOURS
RED/WHITE & REDWHITE
FUSE B - 10 AMP (FUEL PUMP/ALTERNATOR)
WIRE COLOURS ORANGE & ORANGE/
BLUE.
FUSE C - 10 AMP (LIGHT SWITCH) WIRE
COLOURS ORANGE & ORANGE/
BROWN.
FUSE D - 20 AMP (SPLIT TO CAB/HOUR METER/
SAFETY SWITCHES) WIRE COLOURS
ORANGE & ORANGE.
FUSE E - 5 AMP (SEAT SWITCH/BACKLAP
SWITCH) WIRE COLOURS BLUE/GREEN
& WHITE/BLUE.
Fig.24
8 SCHEMATICS
RELAYS/COMPONENTS(STEER TOWER)
COMPONENT F - SEAT SWITCH DELAY. WIRE
COLOURS ORANGE & BLUE/GREEN.
RELAY G - RELAY LH. WIRE COLOURS WHITE/
RED & YELLOW/RED & BLACK &
YELLOW/GREY.
RELAY H - RELAY CENTRE. WIRE COLOURS
YELLOW/GREEN & BLACK & YELLOW/
PINK & WHITE/RED.
RELAY I - RELAY RH. WIRE COLOURS YELLOW
& WHITE/RED & BLACK & YELLOW/
WHITE.
RELAY J - CUTTER RELAY. WIRE COLOURS
ORANGE & BLACK & WHITE/RED &
BROWN/BLACK.
RELAY K - STARTER RELAY. WIRE COLOURS
BLUE/YELLOW & BLACK & RED/WHITE
& BROWN & BLUE/GREEN & BLUE/
GREEN.
DIODE L - RH BRIDGE DIODE. WIRE COLOURS
YELLOW/VIOLET & BLACK & YELLOW/
WHITE & YELLOW/BLUE.
Fig.25
