JACOBSEN 405 Series: CH
MAINTENANCE AND PARTS MANUAL

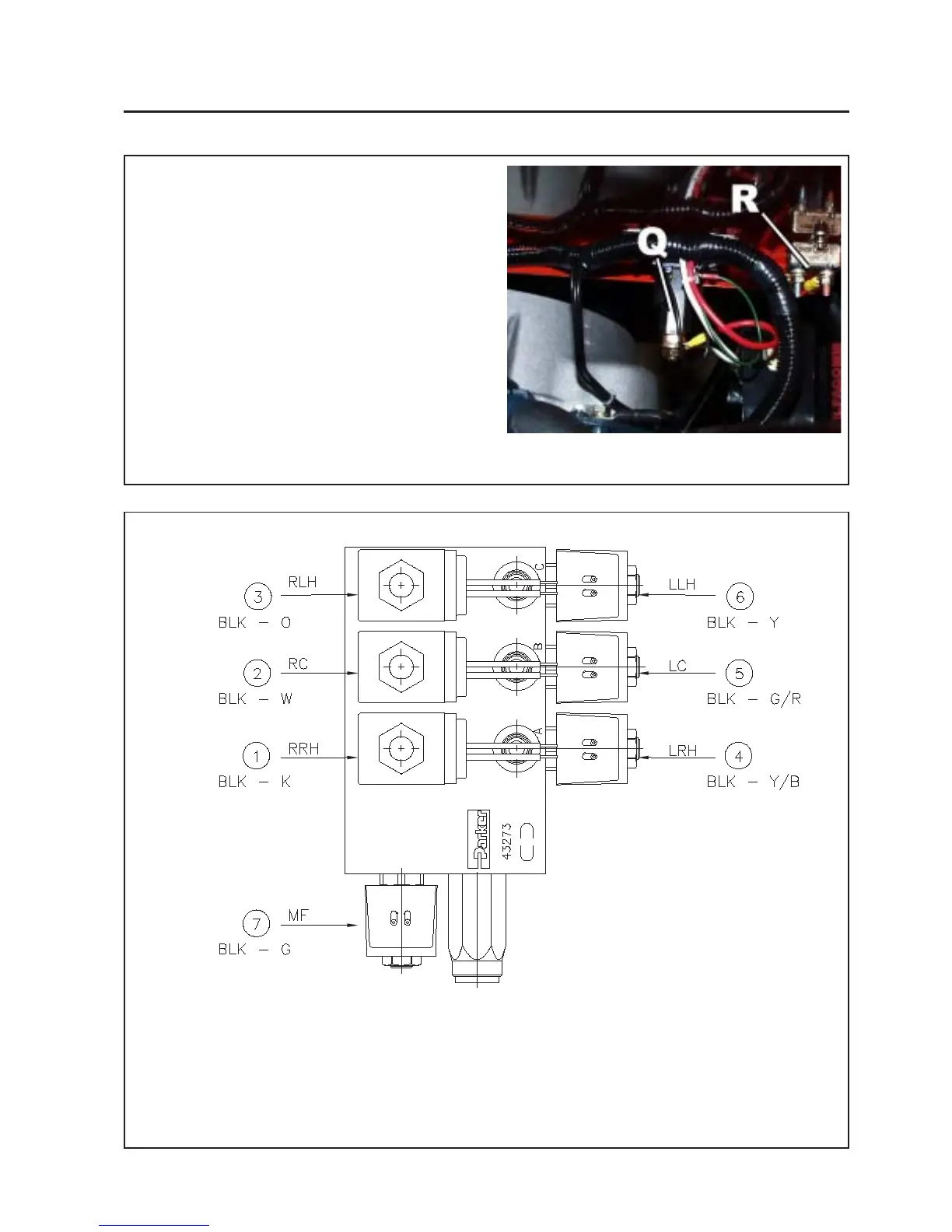

RELAYS/COMPONENTS(BONNET LANDING
PANEL)
RELAY Q - 70 AMP RELAY. GLOW PLUGS. WIRE
COLOURS WHITE & GREEN & BLACK &
RED.
COMPONENT R - 40 AMP CIRCUIT BREAKER.
WIRE COLOURS RED & RED.
Fig.27
8.4 FUSES AND RELAYS/COMPONENTS
COMPONENT-LIFT VALVE
KEY
1 – RRH = RAISE RIGHT HAND -BLK-K BLACK&PINK
2 – RC = RAISE CENTRE -BLK-W BLACK&WHITE
3 – RLH = RAISE LEFT HAND -BLK-O BLACK&ORANGE
4 – LRH = LOWER RIGHT HAND -BLK-Y/B BLACK&YELLOW/BLACK
5 – LC = LOWER CENTRE -BLK-G/R BLACK&GREEN/RED
6 – LLH = LOWER LEFT HAND -BLK-Y BLACK&YELLOW
7 – MF = MASTER FLOW -BLK-G BLACK&GREEN
8 SCHEMATICS
