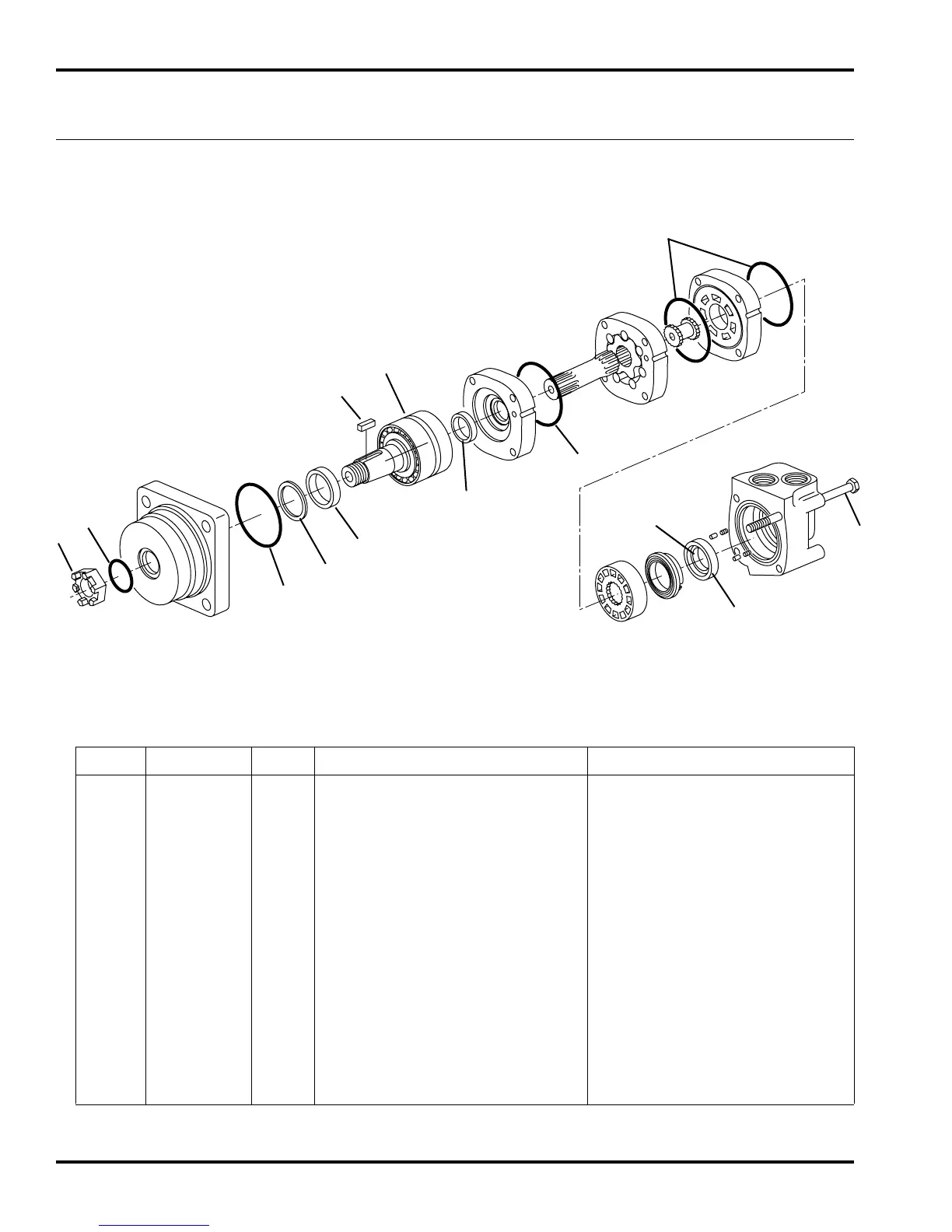

HR-5111
61.1 Rear Wheel Motor
Part Number 5003218
Serial No. 69116-6707 and Up
Serial No. 69158-1719 and Up
Item Part No. Qty. Description Serial Numbers/Notes
●
1
N/S 1 Seal Exclusion
● 2 N/S 4 Seal, 3” I.D.
● 3 N/S 1 Back-Up Ring
● 4 N/S 1 Shaft Seal
5 5003384 1 Shaft and Bearing Kit
6 554780 1 Key
7 554779 1 Nut
● 8 N/S 1 Shaft, Face Seal
● 9 N/S 1 Inner Face Seal
● 10 N/S 1 Outer Face Seal
11 556450 4 Bolt
● 5003385 1 Seal Kit
1
2
3
4
5
6
7
8
9
10
11
2
2
