Jacobsen HR 5111

97
> Change from previous revision
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
340070 2 Adapter, 90°
2 339989 4 Adapter, Straight
3 362288 1 Adapter, 90°
4 366445 1 Adapter, Tee
1003133 1 Right Wing Deck Hose Assembly
5 1003138 1 • Hose, Right Wing Deck Drain
6 1003137 1 • Hose, Right Valve to Motor Right Wing Deck Valve Port A
7 1003136 1 • Hose, Motor to Right Valve Right Wing Deck Valve Port B
132594 1 Motor Hose Assembly
8 132596 1 • Hose, Motor Drain
9 132597 1 • Hose, Motor Outlet to Motor Inlet
10 REF 1 Adapter, Tee See 35.1

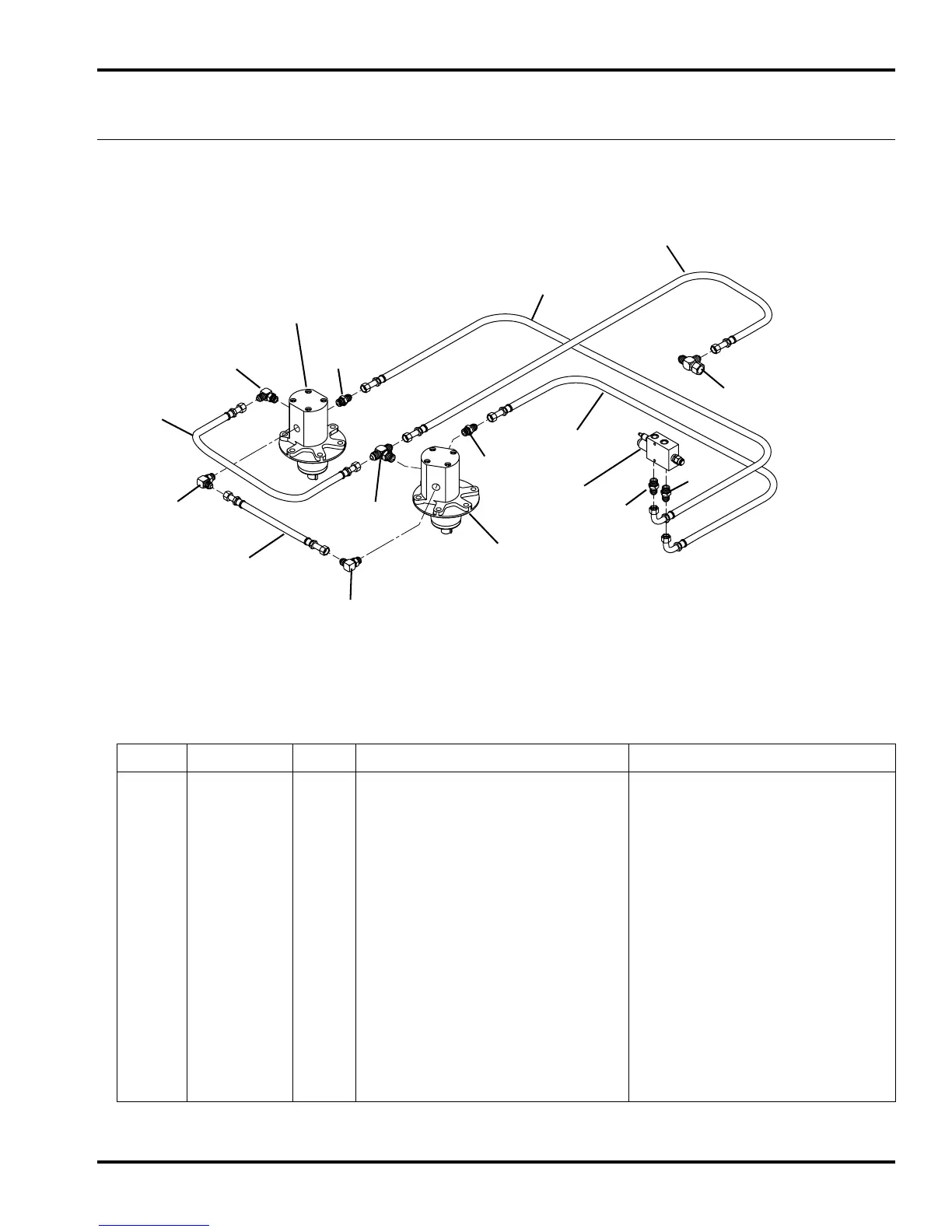

41.1 Right Wing Deck Hydraulics
Serial No. 69116-6707 and Up
Serial No. 69158-1719 and Up
1
2
3
4
5
6
7
8
9
10
Right Wing
Deck Valve
Inside
Motor
Outside
Motor
2
2
2
1
