HR-5111

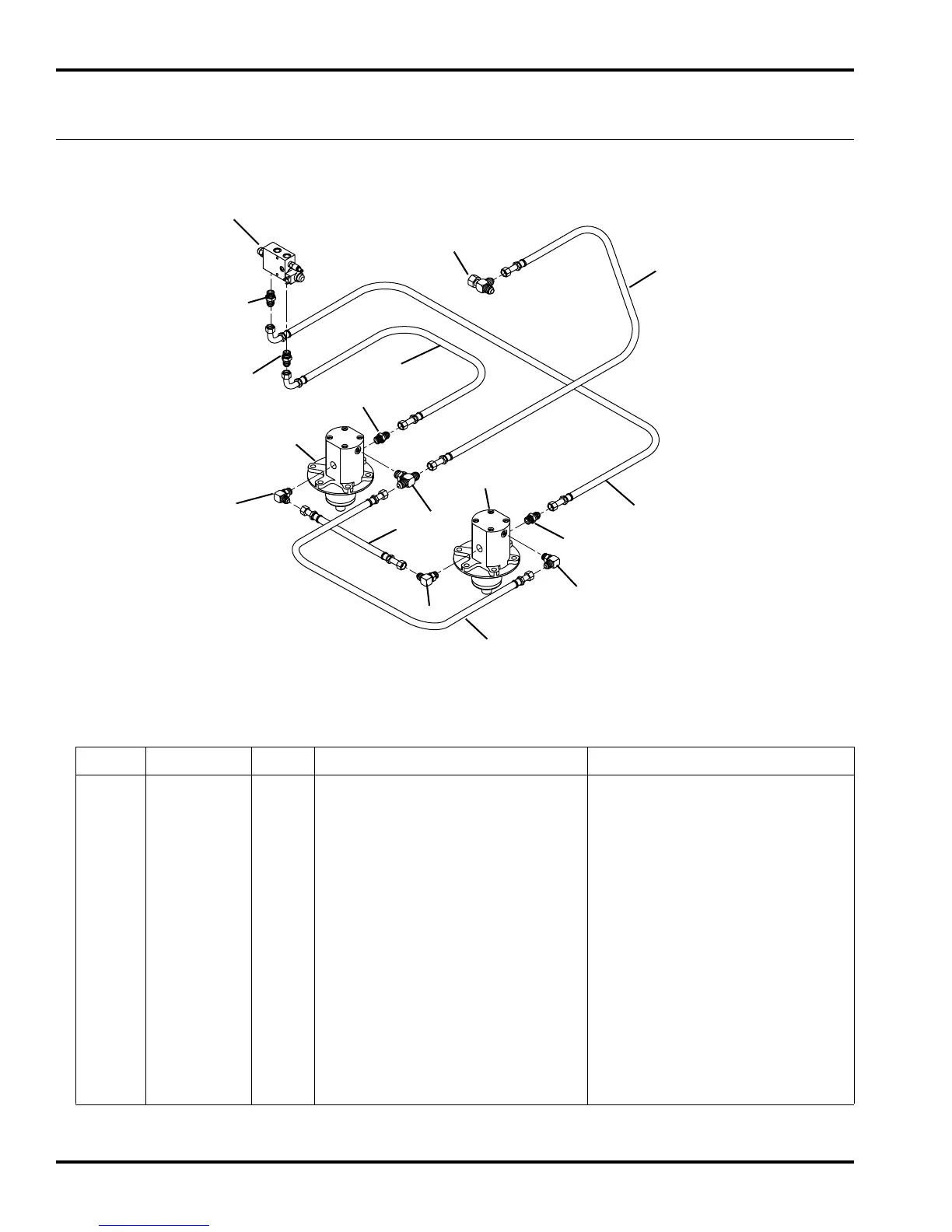

40.1 Left Wing Deck Hydraulics
Serial No. 69116-6707 and Up
Serial No. 69158-1719 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
340070 2 Adapter, 90°
2 339989 4 Adapter, Straight
3 366445 1 Adapter, Tee
4 362288 1 Adapter, 90°
1003134 1 Left Wing Deck Hose Assembly
5 132575 1 • Hose, Left Valve to Motor Left Wing Deck Valve Port A
6 132576 1 • Hose, Motor to Left Valve Left Wing Deck Valve Port B
7 132574 1 • Hose, Left Deck Drain
132594 1 Motor Hose Assembly
8 132596 1 • Hose, Motor Drain
9 132595 2 • Hose, Motor Outlet to Motor Inlet
10 REF 1 Adapter, Tee See 35.1
1
2
3
4
5
6
7
8
9
10
Outside
Motor
Inside
Motor
Left Wing
Deck Valve
2
2
2
1
