HR-5111

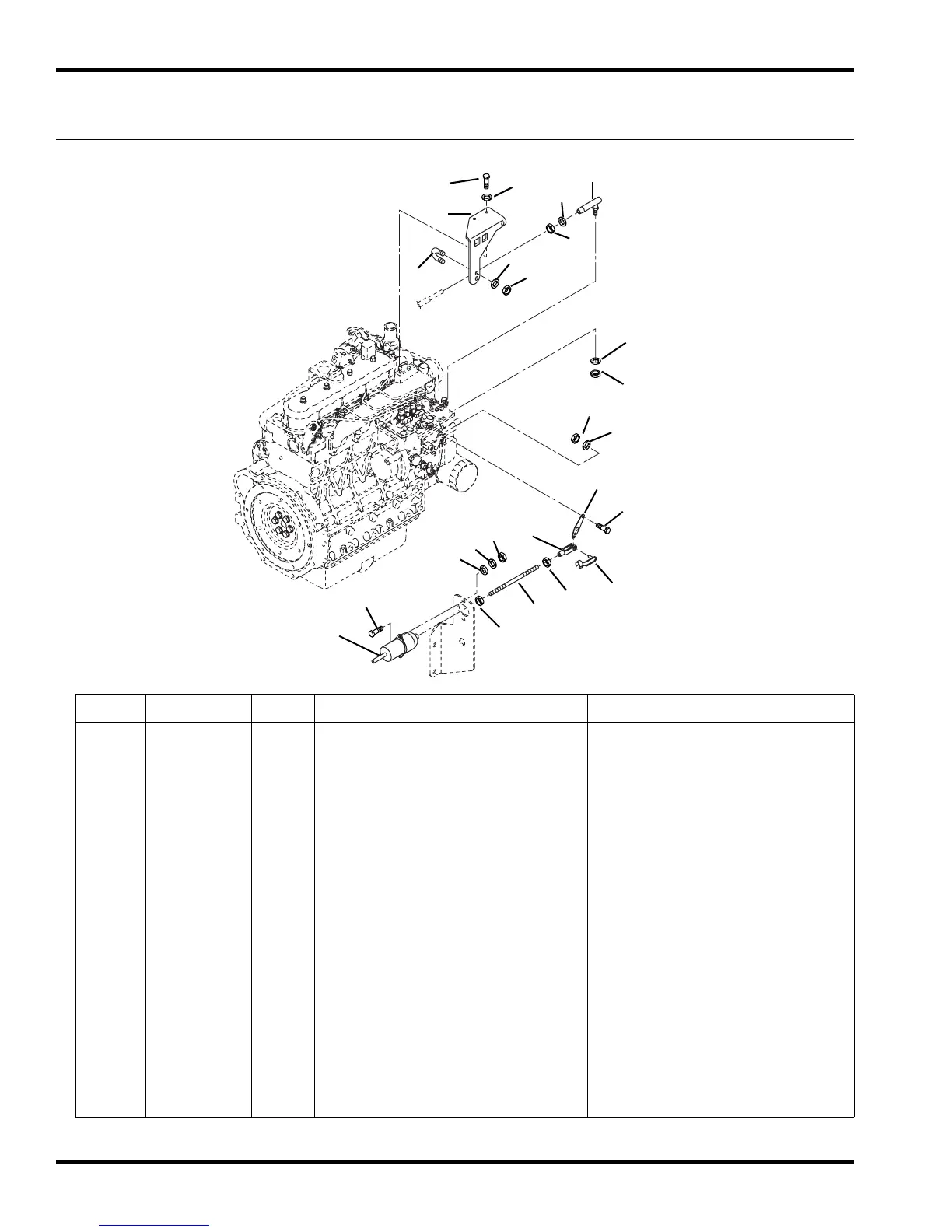

23.1 Engine Fuel Control
Serial No. 69116-6707 and Up
Serial No. 69158-1719 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
338289 1 Fuel Solenoid REFERENCE K17, See 67.1
2 400108 2 Screw, 1/4-20 x 3/4” Hex Head
3 453023 2 Flat Washer, 1/4
4 446130 5 Lockwasher, 1/4 Heavy
5 443102 3 Nut, 1/4-20 Hex
6 443104 4 Nut, 1/4-28 Hex
7 367191 1 Rod, Solenoid Adjusting
8 162478 1 Ball Joint
9 4114474 1 Pin, Clevis Spring
10 3005731 1 Bracket, Throttle Cable
11 362744 1 U-Bolt, 5/16-18
12 446136 4 Lockwasher, 5/16 Heavy
13 443106 2 Nut, 5/16-18 Hex
14 363586 2 Screw, M8-1.25 x 20 mm
15 366071 1 Bracket, Fuel Solenoid
16 400106 1 Screw, 1/4-20 x 5/8” Hex Head
17 4114473 1 Clevis, Solenoid
1
2
3
4
5
6
7
17
9
10
11
12
13
14
15
16
4
4
5
6
6
6
8
12
4
