HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
REF 1 Bracket, Bulkhead See 15.1
1003613 1 Front Deck Hose Assembly
2 1003614 1 • Hose, Front Valve to Motor Front Deck Valve Port A
3 1003615 1 • Hose, Front Deck to Bulkhead
4 340070 2 Adapter, 90°
5 339989 4 Adapter, Straight
6 362288 1 Adapter, 90°
132591 2 Motor Hose Assembly
7 132562 1 • Hose, Motor Outlet to Motor Inlet
8 132563 1 • Hose, Motor Drain
9 366445 2 Adapter, Tee
10 132565 1 Hose, Motor to Front Valve Front Deck Valve Port B
11 362078 1 Adapter, Bulkhead
12 339960 1 • Nut, Bulkhead

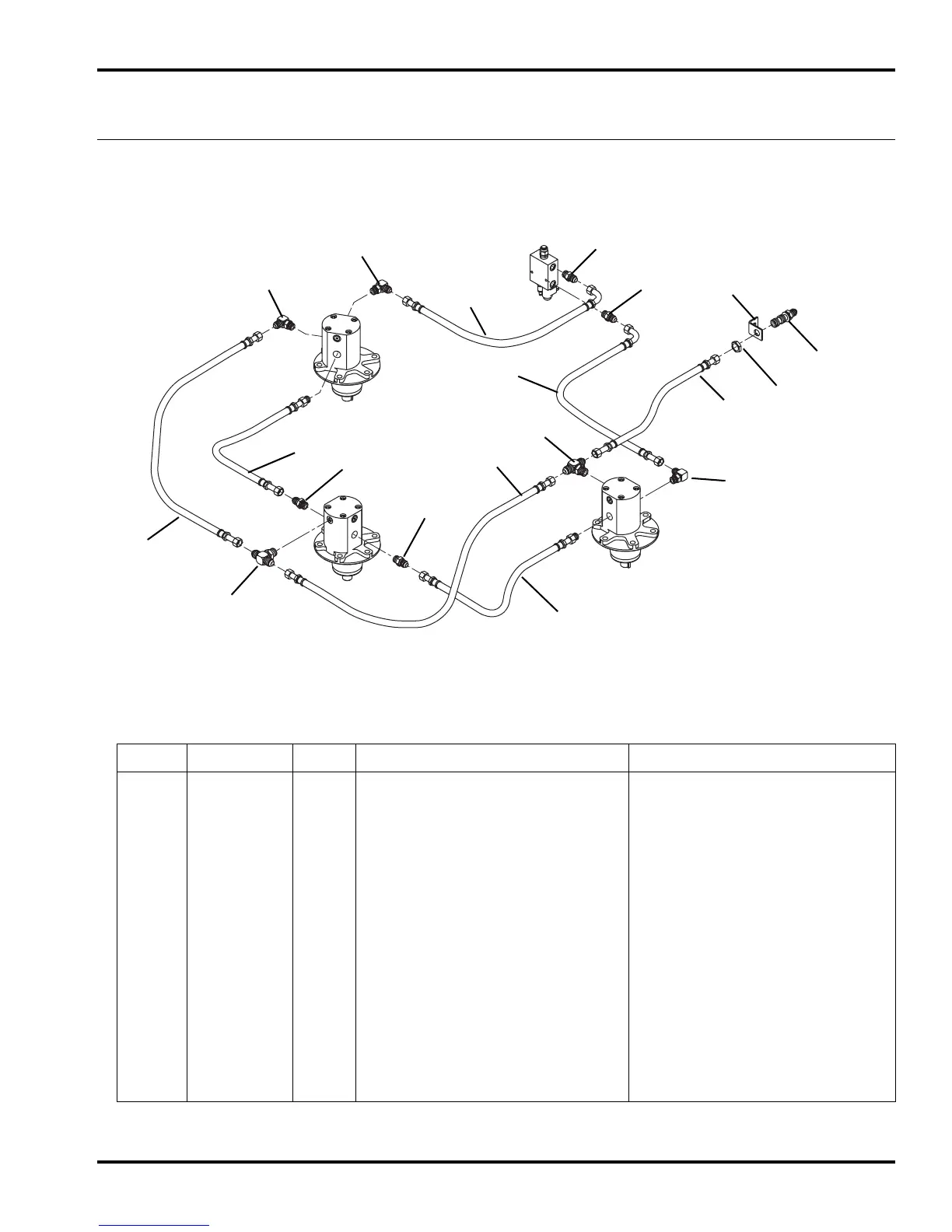

39.1 Front Deck Hydraulics
Serial No. 69116-6707 and Up
Serial No. 69158-1719 and Up
