Jacobsen HR 5111

87
> Change from previous revision
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
340065 3 Adapter, 90°
2 364945 3 Adapter, Diagnostic Port
3 363030 3 Dust Cover
4 339989 1 Adapter, Straight
5 1003105 1 Hose, Pump to Control Valve Control Valve Port P
6 340033 1 Adapter, 45°
7 340061 3 Adapter, 90°
8 2500115 1 Tube, Control Valve to Front Axle
9 366418 1 Adapter, Straight
10 132447 1 Hose, Control Valve to 4WD Valve

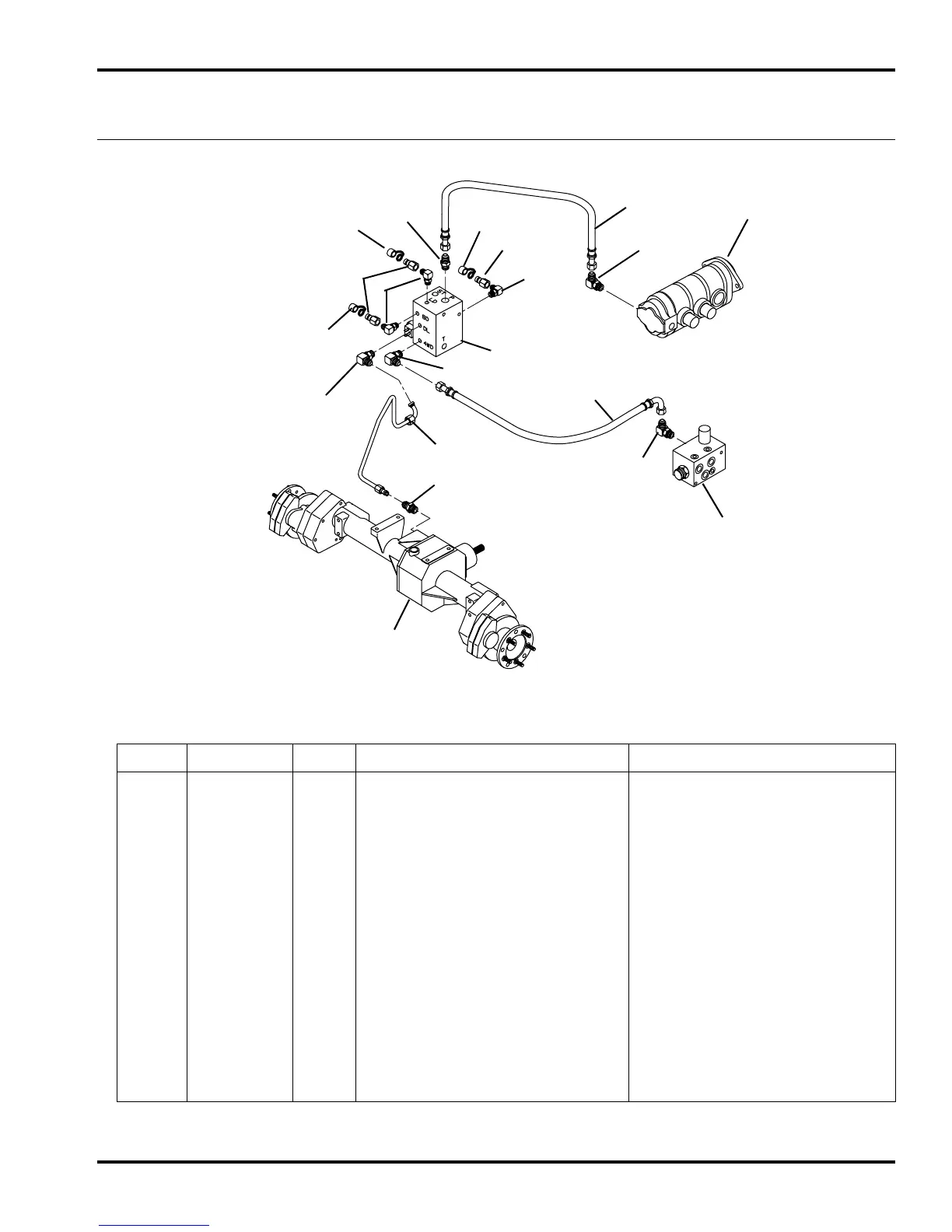

31.1 Control Valve Hydraulics
Serial No. 69116-6707 and Up
Serial No. 69158-1719 and Up
1
2
3
4
5
6
7
8
9
10
4WD Valve
Control Valve
Gear Pump
Front Axle
1
2
3
3
7
7
