Jacobsen R-311 Parts & Maintenance Manual

127
> Change from previous revision
1
2
3
4
5
5
6
6
7
7
7
7
8
8
8
8
9
9
10
10
11
11
12
12
13
13
13
13
14
14
15
15
15
15
15
15
16
16
16
16
16
16
17
17
17
17
17
17

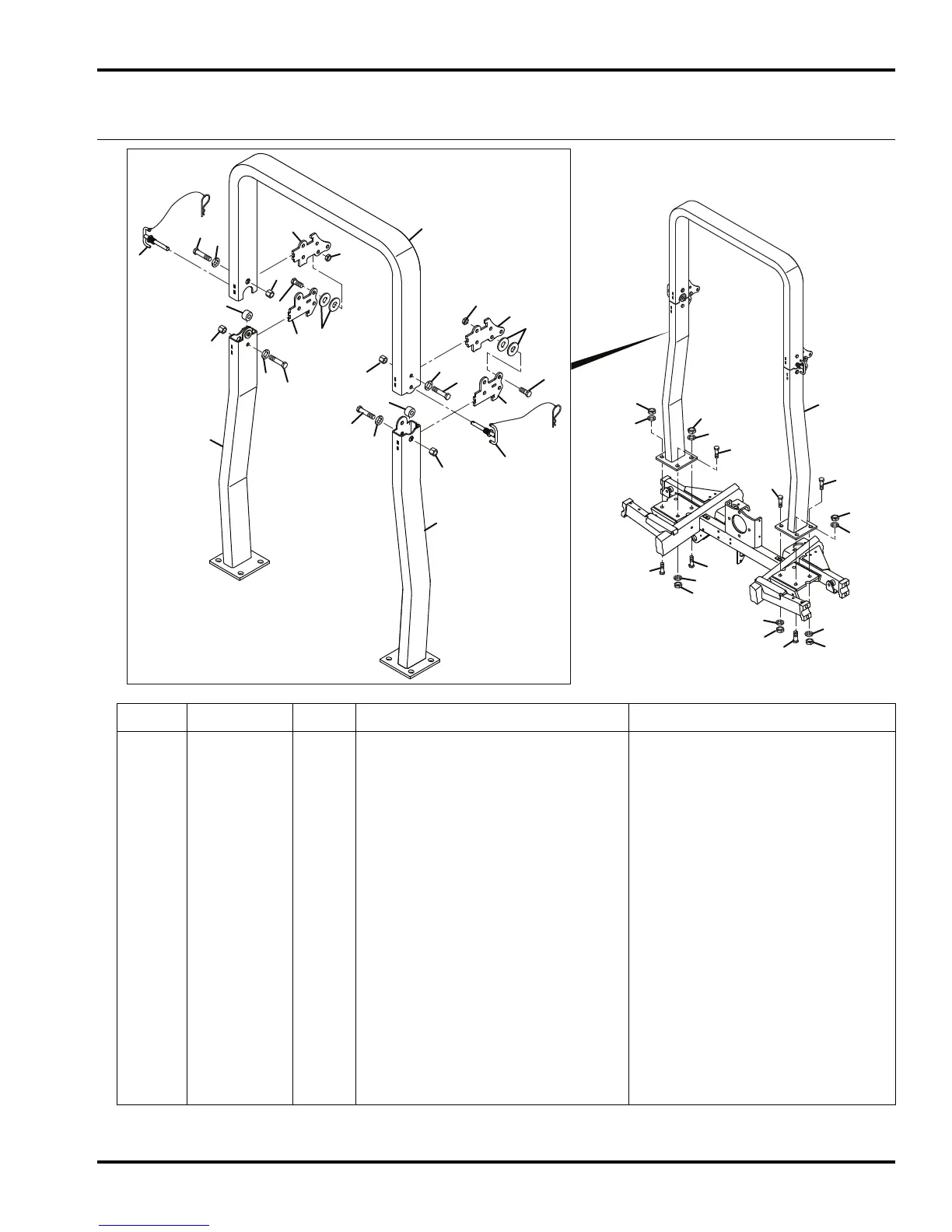

R-311
Item Part No. Qty. Description Serial Numbers/Notes
1
4179004 1 ROPS
2 N/S 1 • Upper ROPS
3 N/S 1 • Right Lower ROPS
4 N/S 1 • Left Upper ROPS
5 4193120 2 • Tube, Polyurethane
6 4192460 2 • Pull Pin Assembly
7 800788 4 • Screw, 1/2-120 x 2-1/4” Hex Head
8 446152 4 • Lockwasher, 1/2
9 400406 2 • Screw, 1/2-13 x 1-1/4” Hex Head
10 N/S 2 • Plate, Upper Hinge
11 N/S 2 • Plate, Lower Hinge
12 4193184 4 • Washer
13 4193200 4 • Nut, 1/2-20 Long Hex
14 64151-5 2 • Nut
15 400616 8 Screw, 5/8-11 x 2” Hex Head
16 446166 8 Lockwasher, 5/8 Heavy
17 443126 8 Nut, 5/8-11 Hex
58.1 ROPS
Serial No. All
