MAINTENANCE & LUBRICATION CHARTS 6
29
6 MAINTENANCE & LUBRICATION CHARTS
6.1 GENERAL ________________________________________________________________
1. Always clean the grease fitting before and after
lubricating.
2. Lubricate with grease that meets or exceeds NLGI
Grade 2 LB specifications. Apply grease with a
manual grease gun and fill slowly until grease begins
to seep out. Do not use compressed air guns.
3. Periodically apply a small amount of lithium based
grease to the seat runners.
4. For smooth operation of all levers, pivot points and
other friction points that are not shown on the
lubrication chart apply several drops of SAE 30 oil
every 40 hours or as required.
5. Grease fittings every 25 hours.

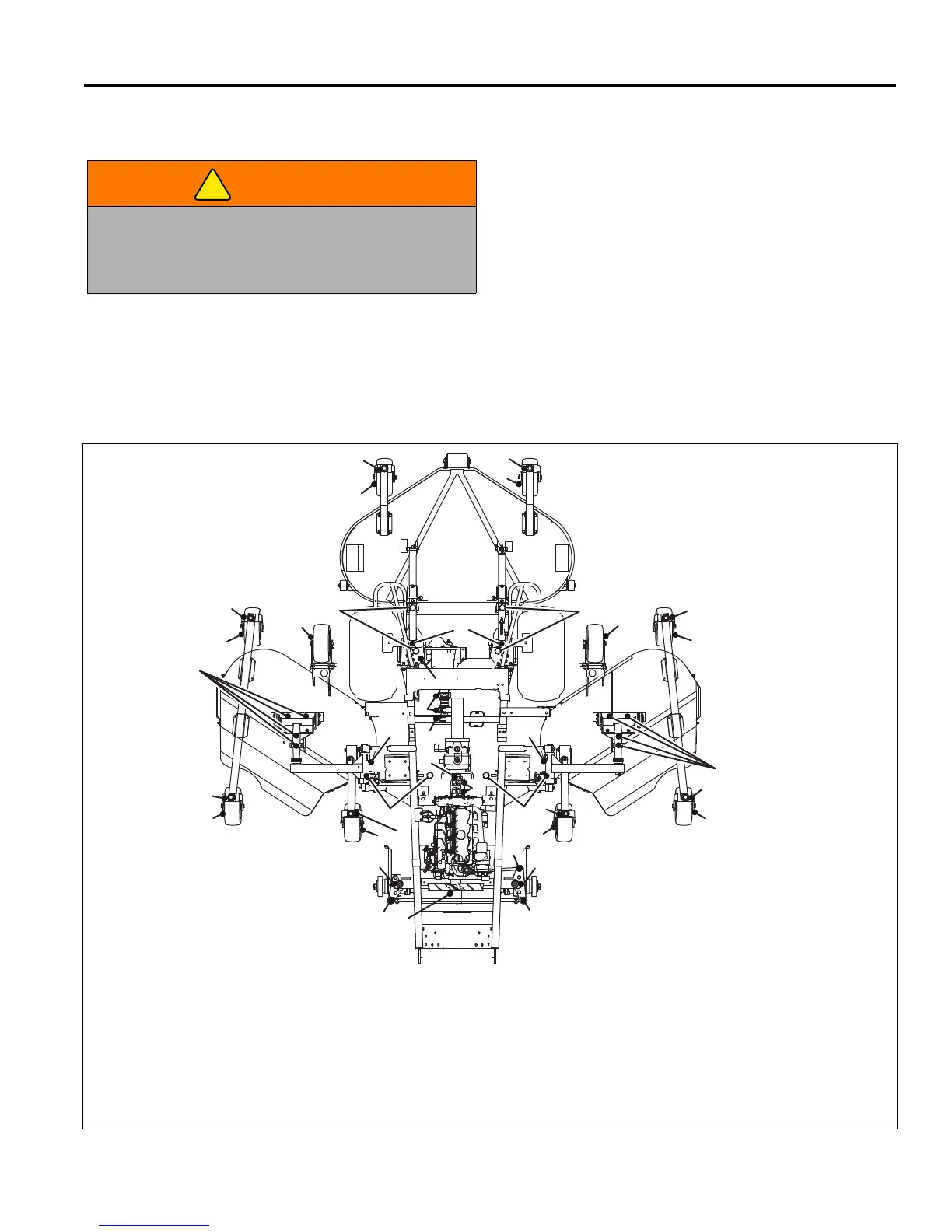

6.2 LUBRICATION CHART______________________________________________________
WARNING
Before you clean, adjust, or repair this equipment
disengage all drives, lower implements to the ground,
engage parking brake, stop engine, and remove key
from ignition switch to prevent injuries.
E
E
E
E
E
E
E
E
E
E
I
M
F
F
F
F
F
F
F
F
J
J
J
N
G
G
K
O
A
B
B
C
C
D
D
H
H
L
Description Fittings
A Front mower arm pivot (2)
B Front lift cylinders (4)
C Wing mower arm pivot (2)
D Wing mower lift cylinders (4)
E Caster Wheels (10)
F Caster Arms (8)
G Deck Pivot Housing (8)
H Steering Axle Spindle Housing (2)
I Steering Axle Pivot (1)
J Steering Axle Ball Joints (4)
K Brake Pedal Pivot (1)
L Pump Drive Shaft Crosses (2)
M Pump Drive Shaft Spline (2)
N Axle Drive Shaft Crosses (2)
O Axle Drive Shaft Spline (1)
