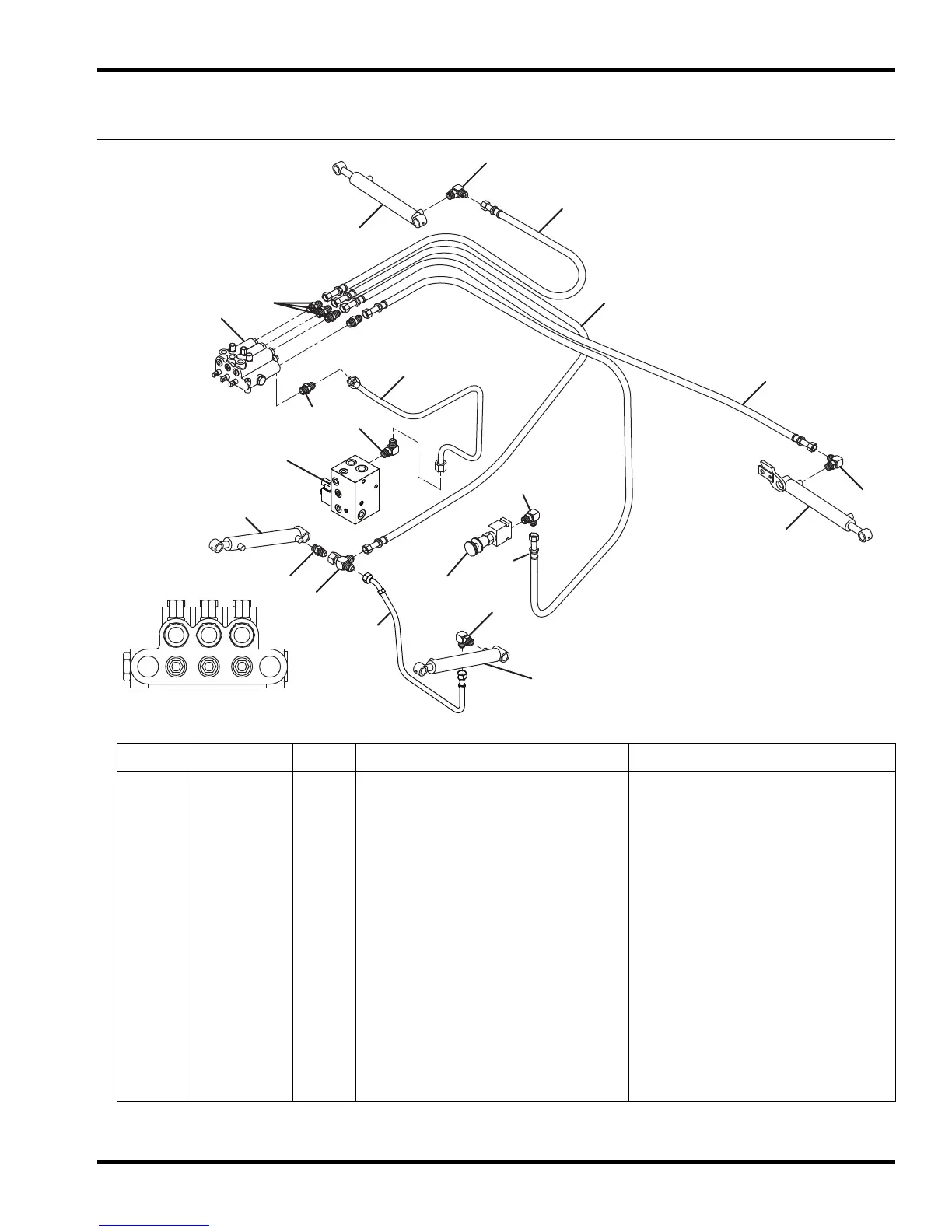

87
> Change from previous revision
IN
OUT
B
D
F
Lift Valve
1
Right Front
Cylinder
Control
Valve
11
3
Back Pressure
Valve
1
12
Right Wing
Cylinder
8
9
Left Front
Cylinder
13
10
Left Wing
Cylinder
6
11
4
7
5
2
ST
P
LD
T
SD
DL
4WD
R-311
Item Part No. Qty. Description Serial Numbers/Notes
1
340066 2 Adapter, 90°
2 123222 1 Tube, Control Valve to Lift Valve Lift Valve Port IN
3 339984 2 Adapter, Straight
4 132571 1 Hose, Lift Valve to Front Cylinders Lift Valve Port D
5 132571 1 Hose, Lift Valve to Left Cylinder Lift Valve Port F
6 132573 1 Hose, Lift Valve to Right Cylinder Lift Valve Port B
7 4188043 1 Hose, Lift to Backpressure Valve Lift Valve Port OUT
8 340119 1 Adapter, Tee
9 340003 1 Adapter, Straight
10 4193301 1 Hose, Cylinder to Cylinder
11 340078 2 Adapter, 90°
12 339979 3 Adapter, Straight
13 340088 1 Adapter, 90°
31.1 Lift Hydraulics
Serial No. All
