> Change from previous revision
11
Steering
Valve
8
Traction
Pump
5
4WD Valve
Contol
Valve
2
4
6
3
1
9
2
7
Charge
Filter
To Charge
Filter
9
10
ST
P
LD
T
SD
DL
4WD
R
L
P
T
R-311

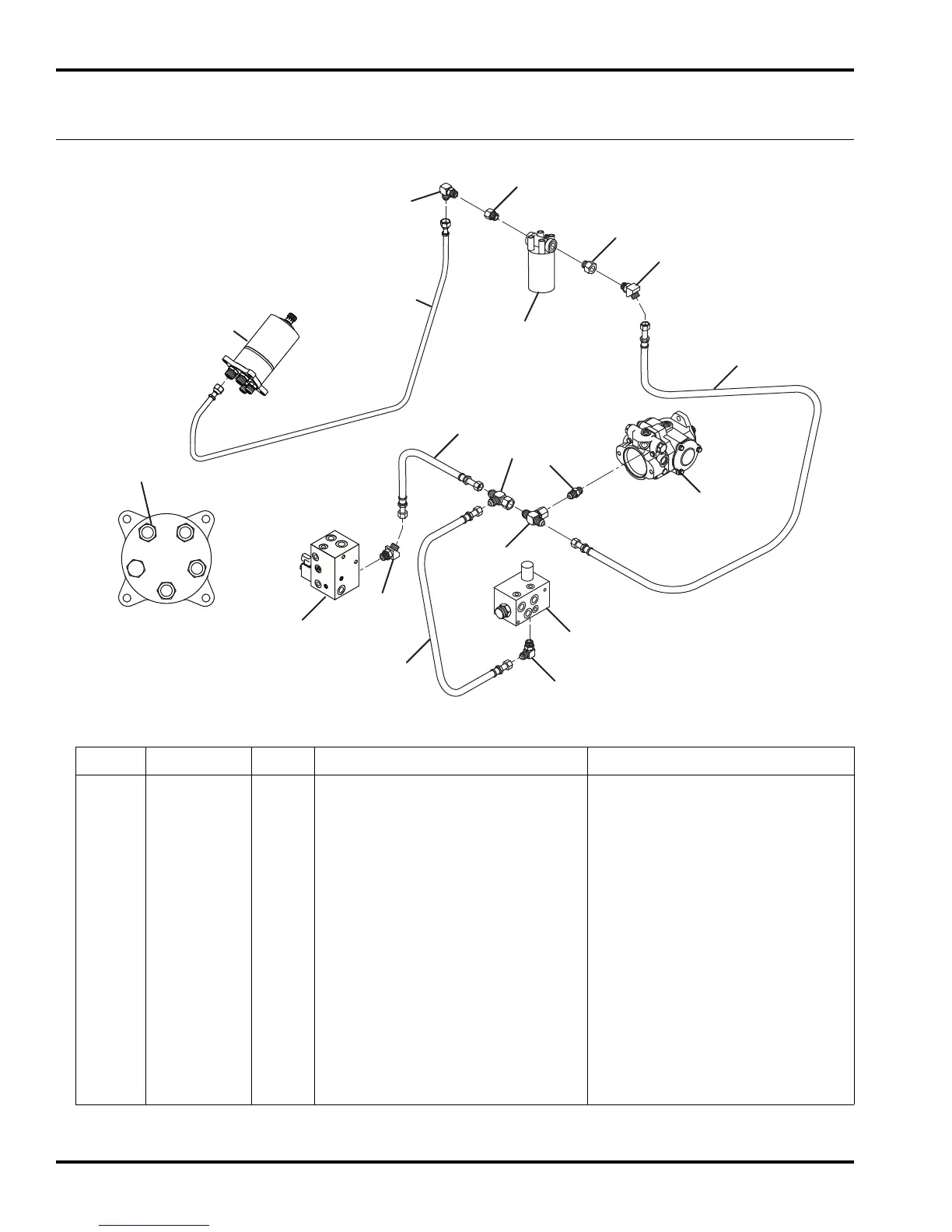

34.1 Charge Hydraulics
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
132540 1 Hose, Control Valve to Tee Control Valve Port F
2 340029 2 Adapter, 45°
3 340120 1 Adapter, Tee
4 132864 1 Hose, 4WD Valve to Tee 4WD Valve Port C
5 340061 1 Adapter, 90°
6 340144 1 Adapter, Tee
7 132486 1 Hose, Tee to Charge Filter
8 339984 1 Adapter, Straight
9 366430 2 Reducer
10 340066 1 Adapter, 90°
11 4197741 1 Hose, Steering Valve to Filter Steering Valve Port T
To Next Page
