R-311

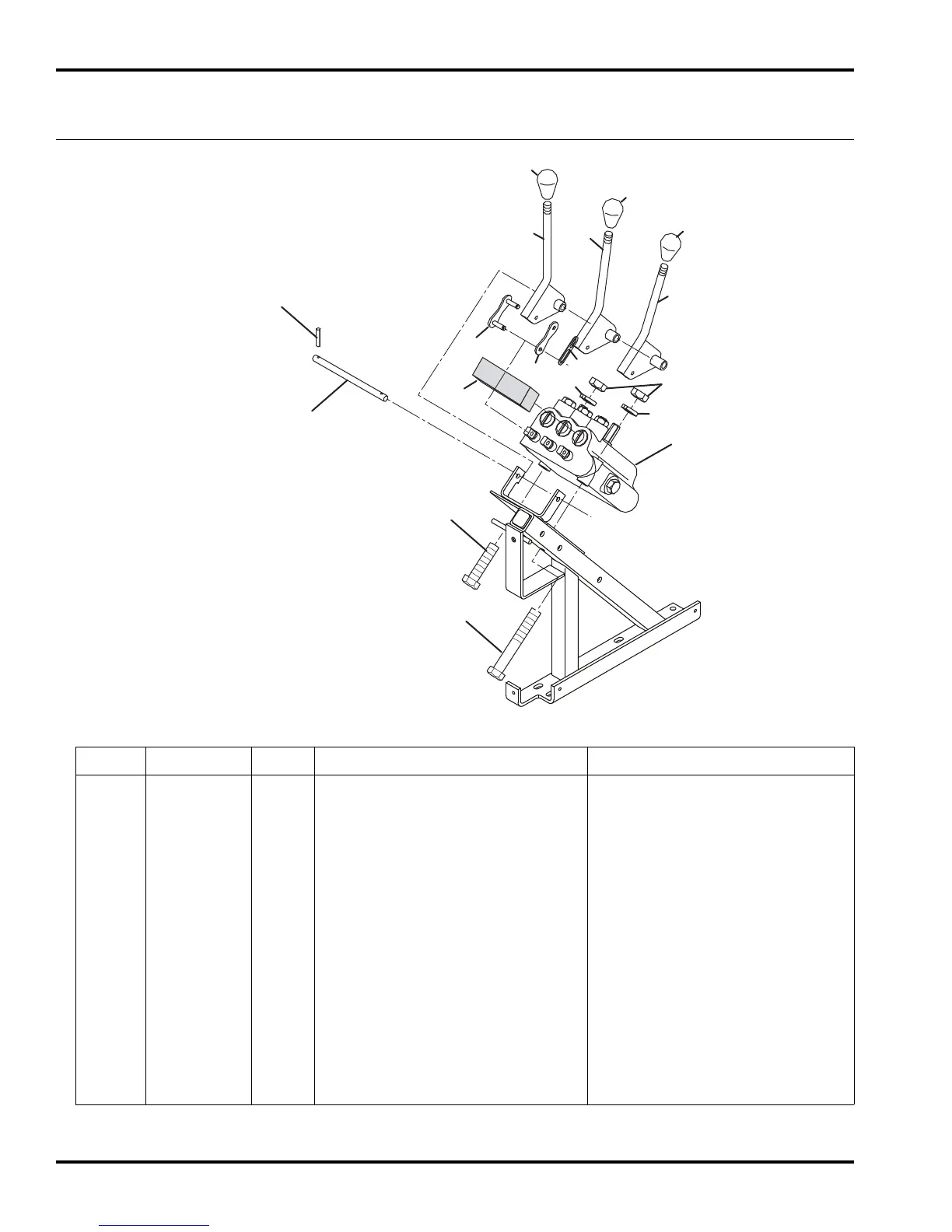

8.1 Lift Valve
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1001802 1 Lift Valve See 53.1
2 366150 1 Weather Strip
3 132473 1 Right Wing Lift Lever
4 132472 1 Center Lift Lever
5 132471 1 Left Wing Lift Lever
6 366522 3 Knob, Lift Lever
7 366133 3 Chain Link
8 461356 2 Roll Pin, 3/32 x 1/2”
9 361833 1 Pin, Lift Lever
10 400124 1 Screw, 1/4-20 x 2-1/2” Hex Head
11 400128 1 Screw, 1/4-20 x 3-1/2” Hex Head
12 446130 2 Lockwasher, 1/4 Heavy
13 443102 2 Nut, 1/4-20 Hex
