Jacobsen R-311 Parts & Maintenance Manual

88
> Change from previous revision
Front Left
Cylinder
11
10
Front Right
Cylinder
12
5
6
7
6
5
2
1
4
3
Left Wing
Cylinder
Hydraulic
Tank
Right Wing
Cylinder
1
1
9
8
R-311

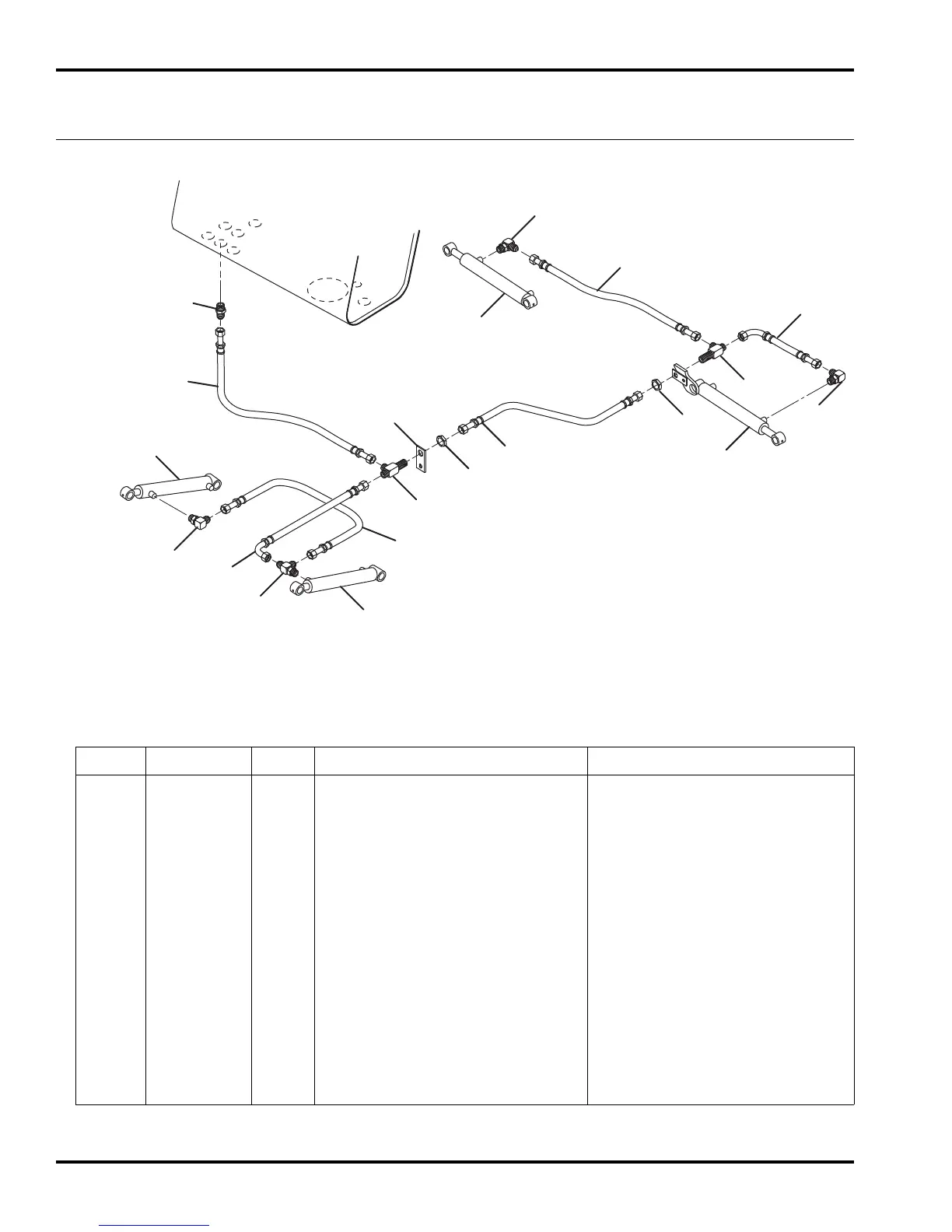

32.1 Lift Return Hydraulics
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
340061 3 Adapter, 90°
2 1003595 1 Hose, Cylinder to Cylinder
3 340263 1 Adapter, Tee
4 4197560 1 Hose, Front Cylinder to Bulkhead
5 340215 2 Adapter, Bulkhead Tee
6 339961 2 • Nut, Bulkhead
7 4193300 1 Hose, Tee to Tee
8 132569 1 Hose, Left Cylinder to Bulkhead
9 132568 1 Hose, Right Cylinder to Bulkhead
10 132583 1 Hose, Tee to Tank
11 351124 1 Adapter, Straight
12 366437.7 1 Bracket, Bulkhead See 44.1
