Jacobsen R-311 Parts & Maintenance Manual

86
> Change from previous revision
5
1
Control
Valve
To Control
Valve
To Steering
Cylinder
Steering
Cylinder
Steering
Valve
ST
P
LD
T
SD
DL
4WD
2
3
4
R
L
P
T
R-311

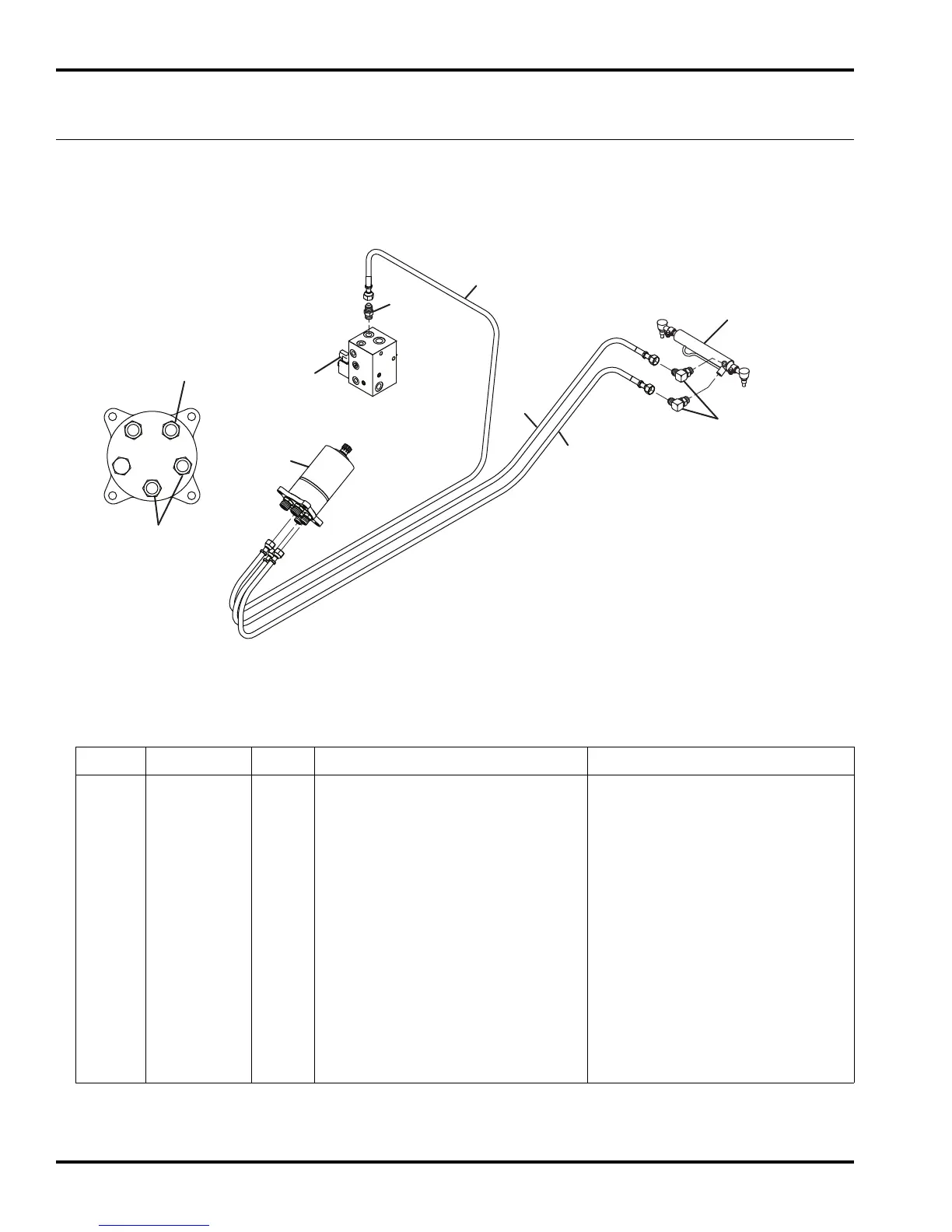

30.1 Steering Hydraulics
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
339984 1 Adapter, Straight
2 4185401 1 Hose, Control Valve to Steering Steering Valve Port P
3 4189080 1 Hose, Steering Valve to Cylinder Steering Valve Port L, Base Port
4 4189080 1 Hose, Steering Cylinder to Valve Steering Valve Port R, Rod Port
5 340061 2 Adapter, 90°
