Jacobsen R-311 Parts & Maintenance Manual

2 SPECIFICATIONS
6
2 SPECIFICATIONS
2.1 PRODUCT IDENTIFICATION_________________________________________________
69166.............................. R-311 with folding ROPS.
69167.............................. R-311 with folding ROPS EC.

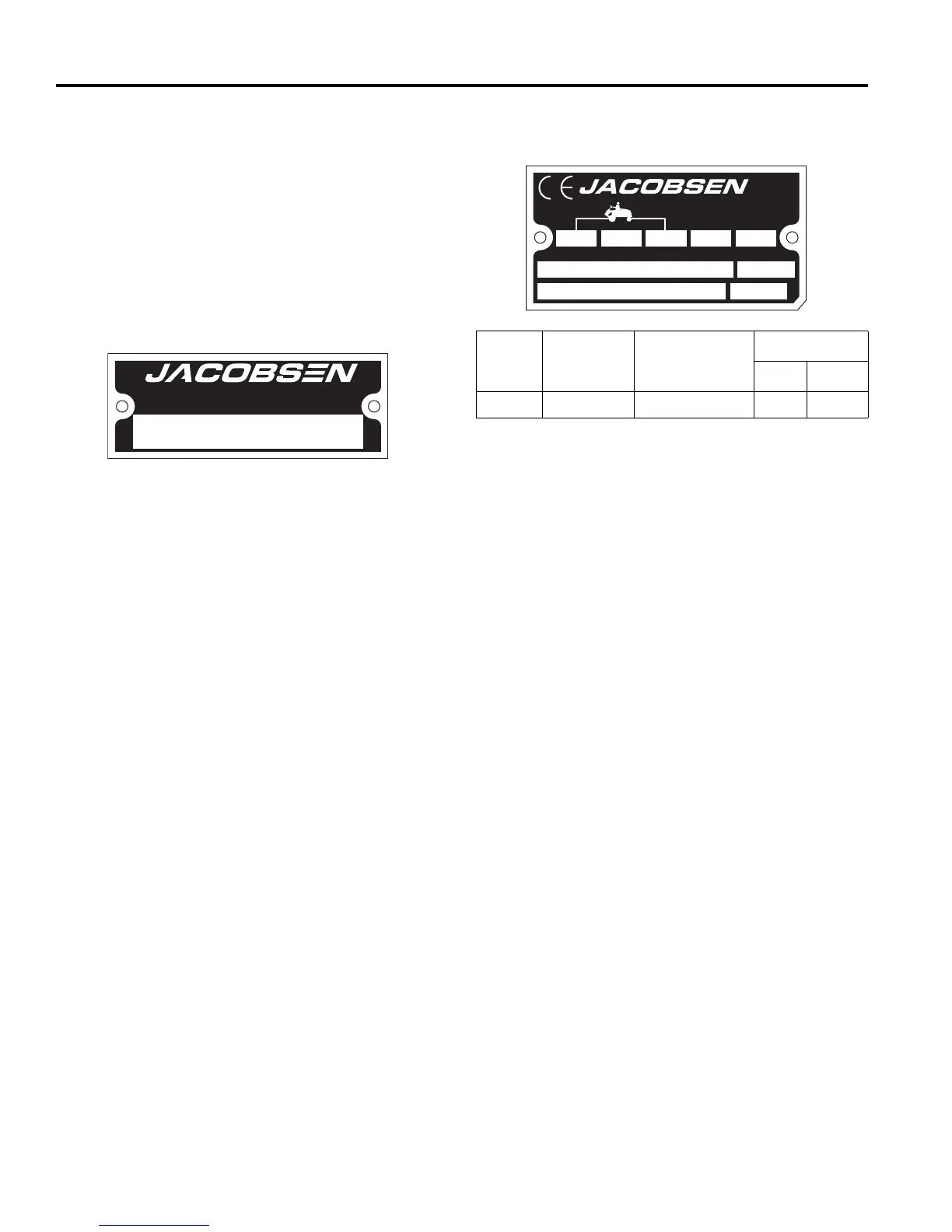

Serial Number ................ An identification plate, like the one
shown, listing the serial number, is
attached to the frame of the
mower near the center lift arm
mount.
Always provide the serial number of the unit when ordering
replacement parts or requesting service information.
2.2 ENGINE__________________________________________________________________
Make ............................... Kubota
Model .............................. V2203-M-E3B
Horsepower (69166) ....... 44.9 hp (33.5 kW) @2600 rpm
Horsepower (69167) ....... 42.1 hp (31.4 kW) @2450 rpm
Note: Actual sustained horsepower will likely be lower
than listed in specifications due to operating limitations
and enviromental factors
Displacement .................. 134.1 cu. in. (2197 cc)
Bore and Stroke.............. 3.43 x 3.64 in. (87 x 92 mm)
Compression Ration ....... 22:1
Torque.............................104 ft. lbs. (140.7 Nm) @ 1600
rpm
Fuel:
Type ..........................No. 2 Low or Ultra Low Sulfur
Diesel
Rating ....................... Min. Cetane rating 45
Capacity.................... 20 U.S. Gal. (75.7 liters)
Fuel Injection Pump........ Bosch K type Mini Pump
Ignition Timing ................ 18° before TC
Governor......................... Centrifugal ball mechanical
Low Idle ................... 900 RPM
High Idle ................... 2800 RPM (69166)
High Idle ................... 2650 RPM (69167)
Lubrication:
Capacity.................... 10 quarts (9.5 liter) with filter
Type.......................... 10W30
API Classification ..... CD, CE
Air Filter .......................... Dry type with evacuator valve and
service indicator
Alternator........................ 45 amp
Cooling System .............. Liquid Cooled
Capacity...................... 8 qt. (7.6 l) 50/50 water / ethylene
glycol mix
Thermostat ............... 185° F (95° C)
2.3 MOWER _________________________________________________________________
Tires:
Front..........................26 x 12-12, 6 Ply
Rear .......................... 23 x 10.5-12, 4 Ply
Pressure:
Front..........................16-20 psi (1.10-1.38 BAR)
Rear .......................... 10-12 psi (0.69-0.83 BAR)
Battery:
Type ..........................12 Volt Lead/Acid
Group........................AABM #75NF
Rating ....................... 750 CCA at 0° F (-18° C)
Service Brake .................Pedal operated disc brakes
Parking Brake ................. Pedal operated disc brakes
Differential....................... Single speed, limited slip
Speed:
Forward (2WD) ........ 0 - 14.9 mph (0 - 24.0 km/h)
Forward (4WD) ......... 0 - 7.8 mph (0 - 12.5 km/h)
Mow.......................... 0 - 7.7 mph (0 - 12.4 km/h)
Reverse .................... 0 - 6 mph (0 - 9.6 km/h)
Hydraulic System:
Capacity.......................... 17 U.S. gal. (64.3 liters)
Fluid Type ....................... 10W30
Return Filter.................... Full Flow 10 micron
Charge Filter................... Full Flow 10 micron
Steering ......................... Power steering, rear wheels
Mower Lift....................... 3 spool manual valve and single
acting cylinders
PTO Drive....................... Fixed Flow Hydraulic
CHARLOTTE, NC PRODUCT OF U.S.A.
®
A Textron Company
69166 1651
Product
EEC Sound
Power
Sound Pressure
Level
Operator Ear
Vibration M/S
2
Arms Body
69167 105 dBa 88 dBa 1.87 0.027
®
P.O. BOX 7708,
CHARLOTTE,
NC 28241, USA
A T extron Compa n y
kg kg kg kW
Jacobsen.com
1-800-848-1636 (US)
PRODUCT OF U.S.A.
69167
R-311
WIDE AREA ROTARY MOWERS
31.4
1651
XXXX
