Jacobsen R-311 Parts & Maintenance Manual

91
> Change from previous revision
4
3
2
1
Left Wing
Deck Valve
Front
Deck Valve
Hydraulic
Tank
7
6
10
Oil
Cooler
5
5
9
10
8
Return
Filter
R-311
Item Part No. Qty. Description Serial Numbers/Notes
1
340070 1 Adapter, 90°
2 4192440 1 Hose, Front to Left Wing Deck Valve
3 2720559 1 Adapter, Tee
4 132441 1 Hose, Left Valve to Oil Cooler
5 340077 2 Adapter, 90°
6 1003705 1 Hose, Oil Cooler to Return Filter
7 340089 1 Adapter, 90°
8 163917 1 Adapter, Beaded
9 4148897 1 Hose, Return Filter to Tank
10 326112 2 Clamp, Hose

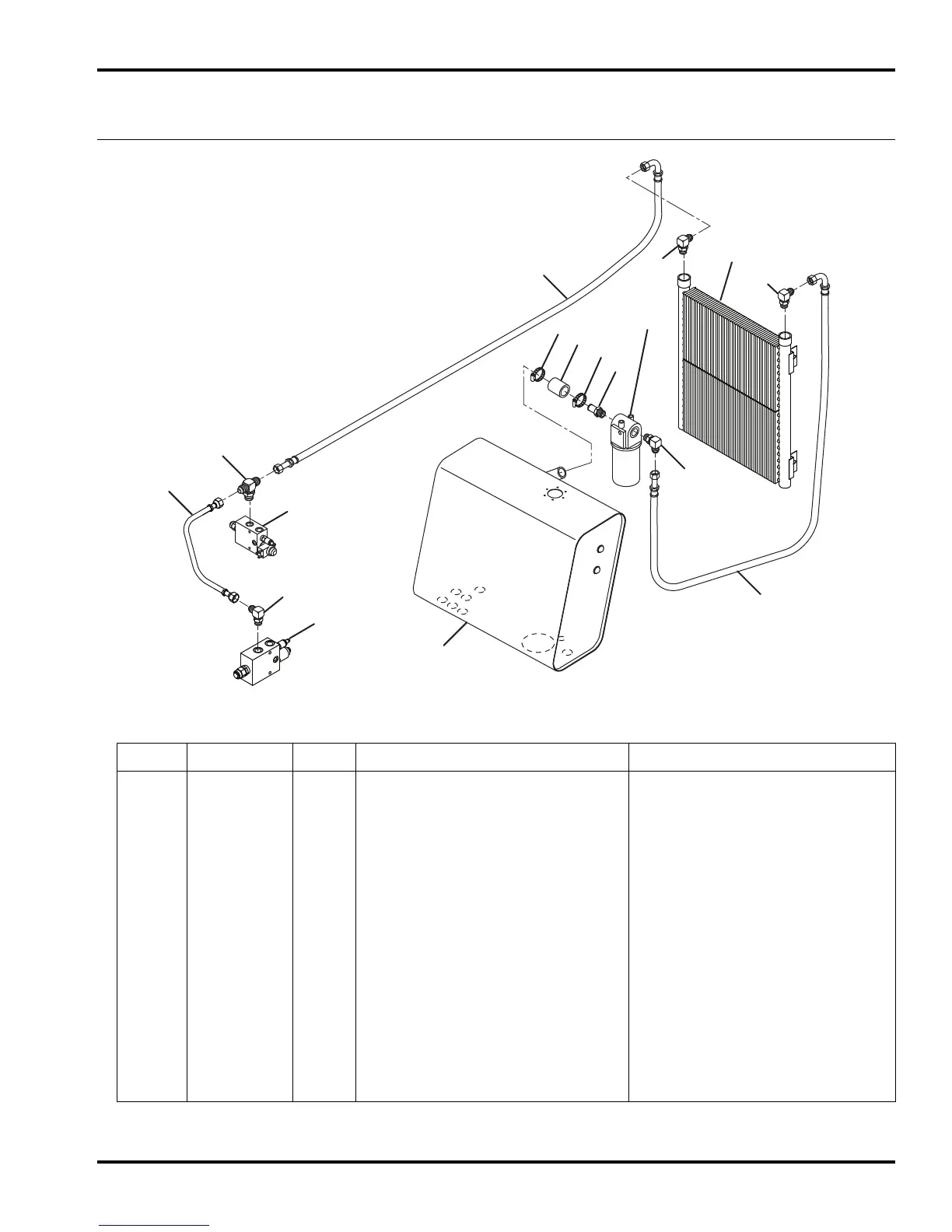

35.1 Oil Cooler Hydraulics
Serial No. All
