Jacobsen Tri King Parts & Maintenance Manual

49
> Change from previous revision
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
13
14
14
!
WARNING
This structure's
proctective capability
may be impaired by
structural damage,
overturn, or alteration.
If any of these
conditions occur, this
structure must be
replaced.
5003597
!
WARNING
5003598
Use seat belt

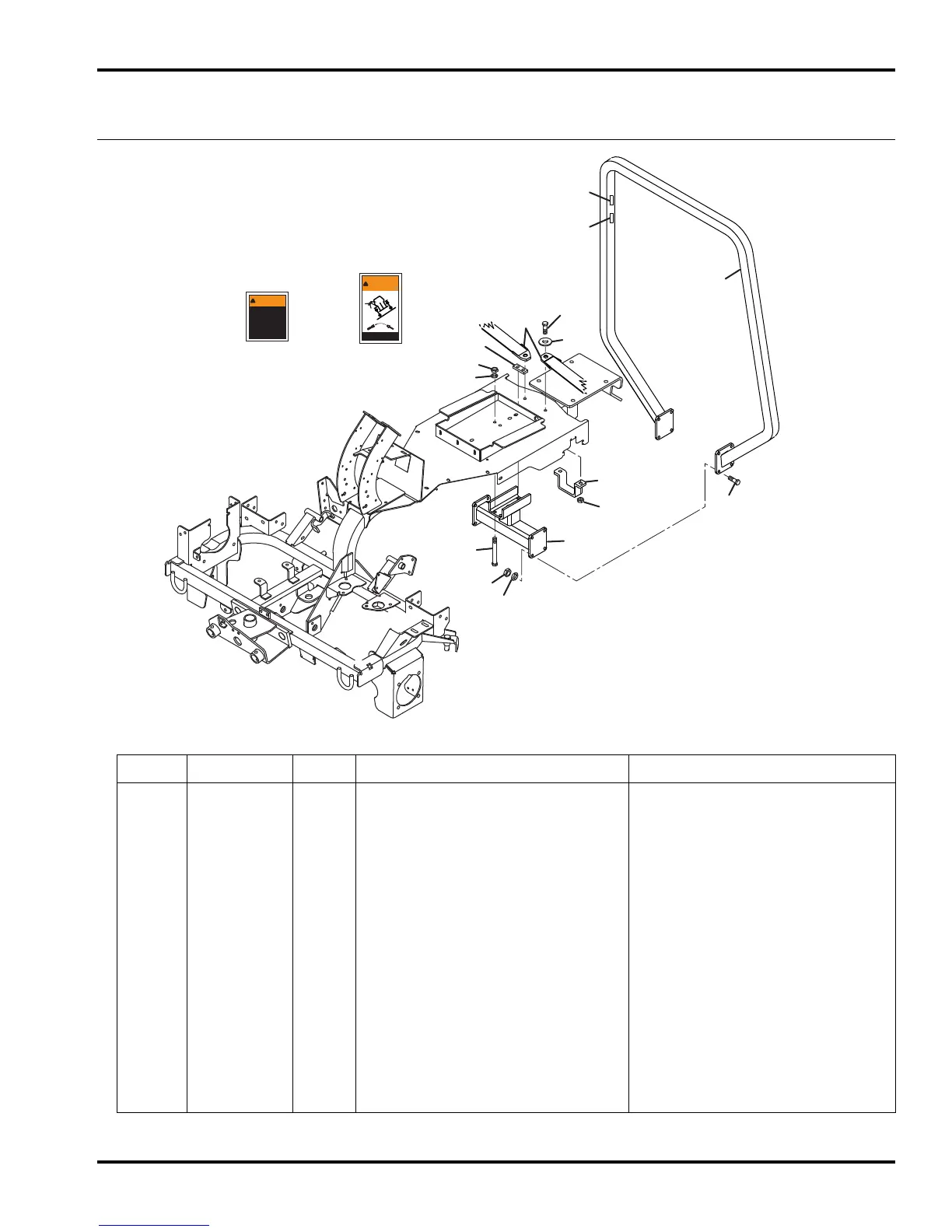

Item Part No. Qty. Description Serial Numbers/Notes
1
69157 1 ROPS Assembly
2 N/S 1 • Base, ROPS
3 5003595 1 • Rear Backing Plate
4 5003596 1 • Seat Belt Bracket
5 5000629 1 • Seat Belt, 60”
6 400370 2 • Screw, 7/16-20 x 1” Hex Head
7 452010 2 • Flat Washer, 7/16
8 444730 2 • Locknut, 7/16-20 Uni-Torque
9 400408 8 • Screw, 1/2-13 x 1-1/2” Hex Head
10 446154 12 • Lockwasher, 1/2 Heavy
11 443118 12 • Nut, 1/2-13 Hex
12 400420 4 • Screw, 1/2-13 x 3-1/2” Hex Head
13 5003598 1 • Decal, Seat Belt Warning
14 5003597 1 • Decal, Structure Warning
15 5003599 1 • Drill Template Not Shown, See 2.1
TRI-KING
10.1 ROPS
Serial No. All
