ADJUSTMENTS 3
11

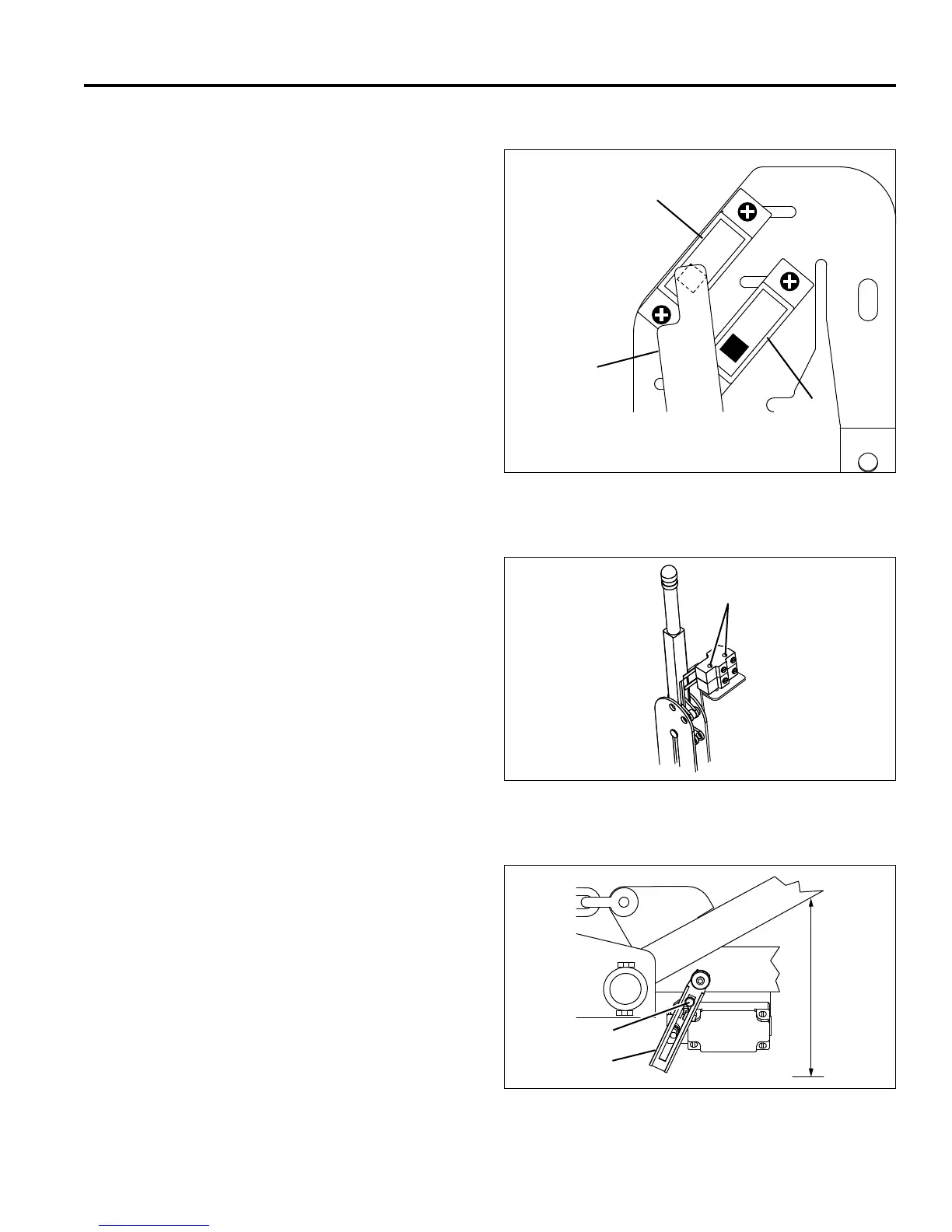

3.4 NEUTRAL AND 3WD SWITCHES _____________________________________________
1. Check traction pedal adjustment.
2. Use a v olt/ohm m eter to det ermine wh en s witch
opens or closes.
a. Adjust switch (G) so “finger” of actuating arm (F)
is c entered over s ensing portion o f s witch.
Switch c ontacts sh ould be c losed wit h tr action
pedal in neut ral and open wi th mi nimal pedal
travel in forward or reverse direction.
b. Adjust 3WD switch (H) so contacts are open with
traction pedal in neutral, and contacts close with
minimal pedal travel in forward direction.
Figure 3C
3.5 PARKING BRAKE SWITCHES________________________________________________
Loosen screws (K) and adjust both switches so contacts
just cl ose as the brake le ver is moved to the eng aged
position then tighten screws.
Figure 3D
3.6 LIFT LIMIT SWITCH ________________________________________________________
The lift l imit s witch must be ad justed so th e r eels s top
turning b efore the c utting pl ane b etween th e r eel an d
ground r each 15- 3/4 in. ( 400 mm). T o adjust, loosen
screw (L), and adjust arm (M).
Figure 3E
