89
> Change from previous revision
1
2
3
4
5
6
7
8
9

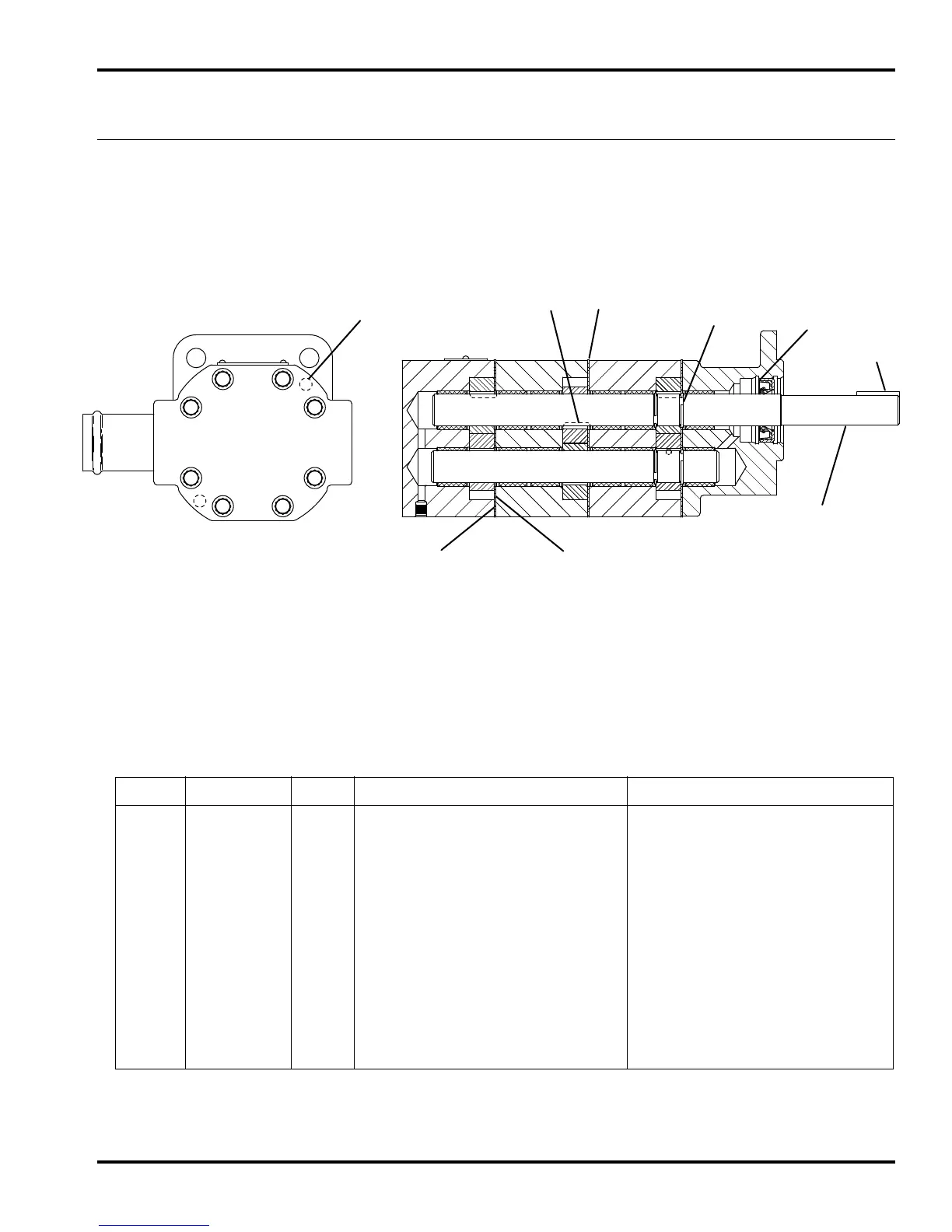

Item Part No. Qty. Description Serial Numbers/Notes
1
N/S 3 Shear Pin (Included in A)
2 N/S 4 Snap Ring (Included in A)
3 N/S 1 Oil Seal (Included in A)
4 5001435 1 Driveshaft
5 N/S 3 Seal Plate (Included in A)
6 N/S 6 Alignment Pin
7 5001437 1 Drive Key
8 N/S 3 Wear Plate (Included in A)
9 N/S 3 Diamond O-Ring (Included in A)
A 5001436 1 Repair Kit Includes 1~3, 5, 8 & 9
TRI-KING
31.1 Reel Pump
Part No. 4174020
Serial No. All
