88
> Change from previous revision
10
13
9
8
7
11
12
5
1
2
3
6
4
14
16
15
TRI-KING

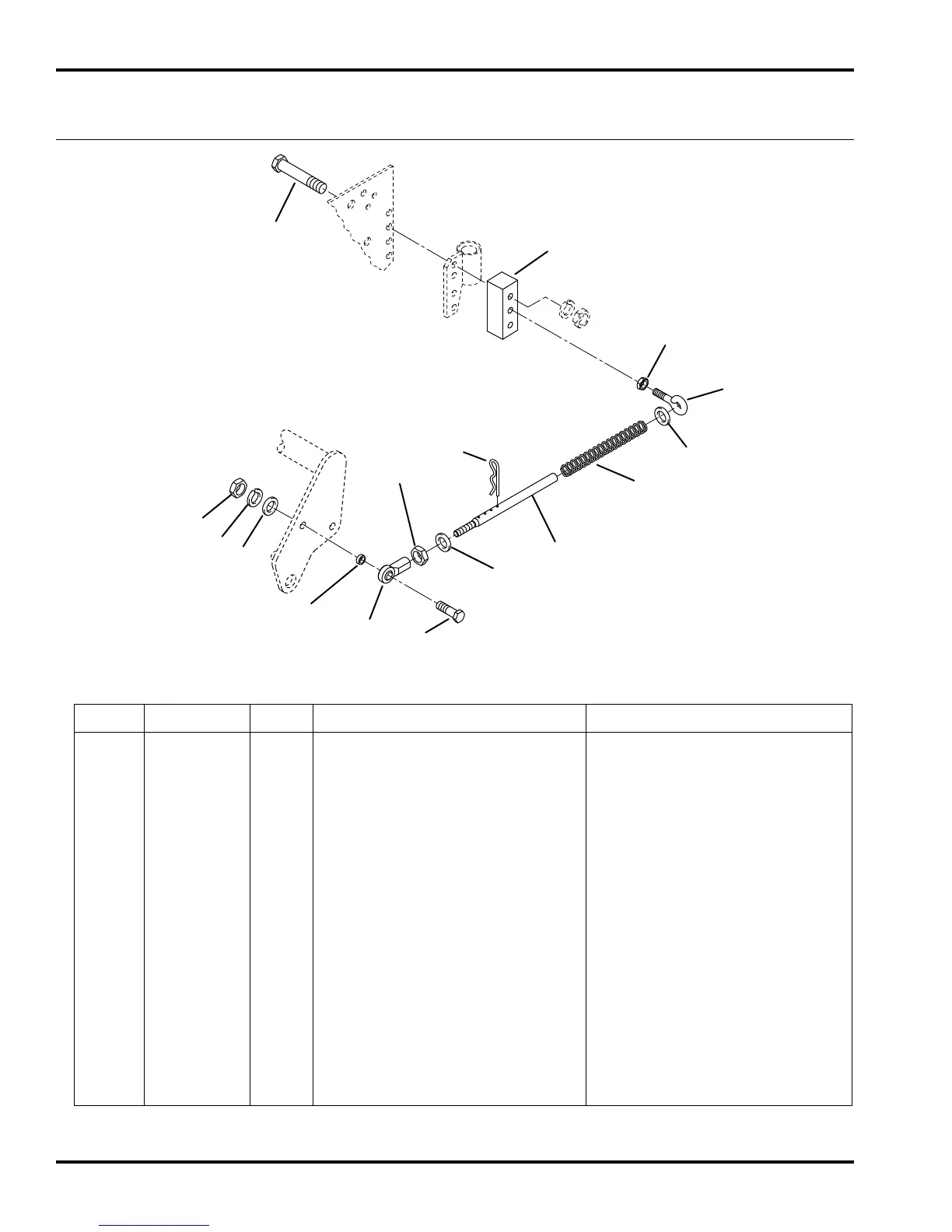

30.1 Down Pressure Kit
Optional Kit
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1002588 1 Down Pressure Kit
1
400268 2 Screw, 3/8-16 x 1-3/4”
2 366974 2 Rod End
3 364328 2 Spacer
4 443812 2 Nut, 3/8-24
5 347935 2 Washer - Special
6 460312 2 Hairpin
7 453017 2 Washer
8 366978 2 Eye Bolt
9 443810 2 Nut, 3/8-16 Jam
10 400272 4 Screw, 3/8-16 x 2-1/4
11 366976 2 Spring
12 366975 2 Tube-Down Pressure
13 3005136 2 Block
14 453011 2 Washer, 3/8
15 443110 2 Nut, 3/8-16
16 446142 2 Lockwasher, 3/8
