6.1 GENERAL ________________________________________________________________
1. Always clean the gr ease fitt ing befo re and a fter
lubricating.
2. Lubricate wit h grease that mee ts or exceeds NLG I
Grade 2 LB sp ecifications. Apply grease wit h a
manual grease gun and fill slowly until grease begins
to seep out. Do not use compressed air guns.
3. Periodically apply a sm all amo unt of li thium based
grease to the seat runners.
4. For sm ooth ope ration of all le vers, pivot poi nts, an d
other friction points th at ar e no t shown on th e
lubrication ch art apply se veral drops of SA E 30 oil
every 40 hours or as required.
5. Grease fittings (A - F) every 50 hours and fittings (G -
K) every 100 hours.
6.2 LUBRICATION CHART______________________________________________________
WARNING
Before you clean, adj ust, or r epair thi s equ ipment,
disengage all drives, lower implements to the ground,
engage parking br ake, s top engine an d r emove k ey
from ignition switch to prevent injuries

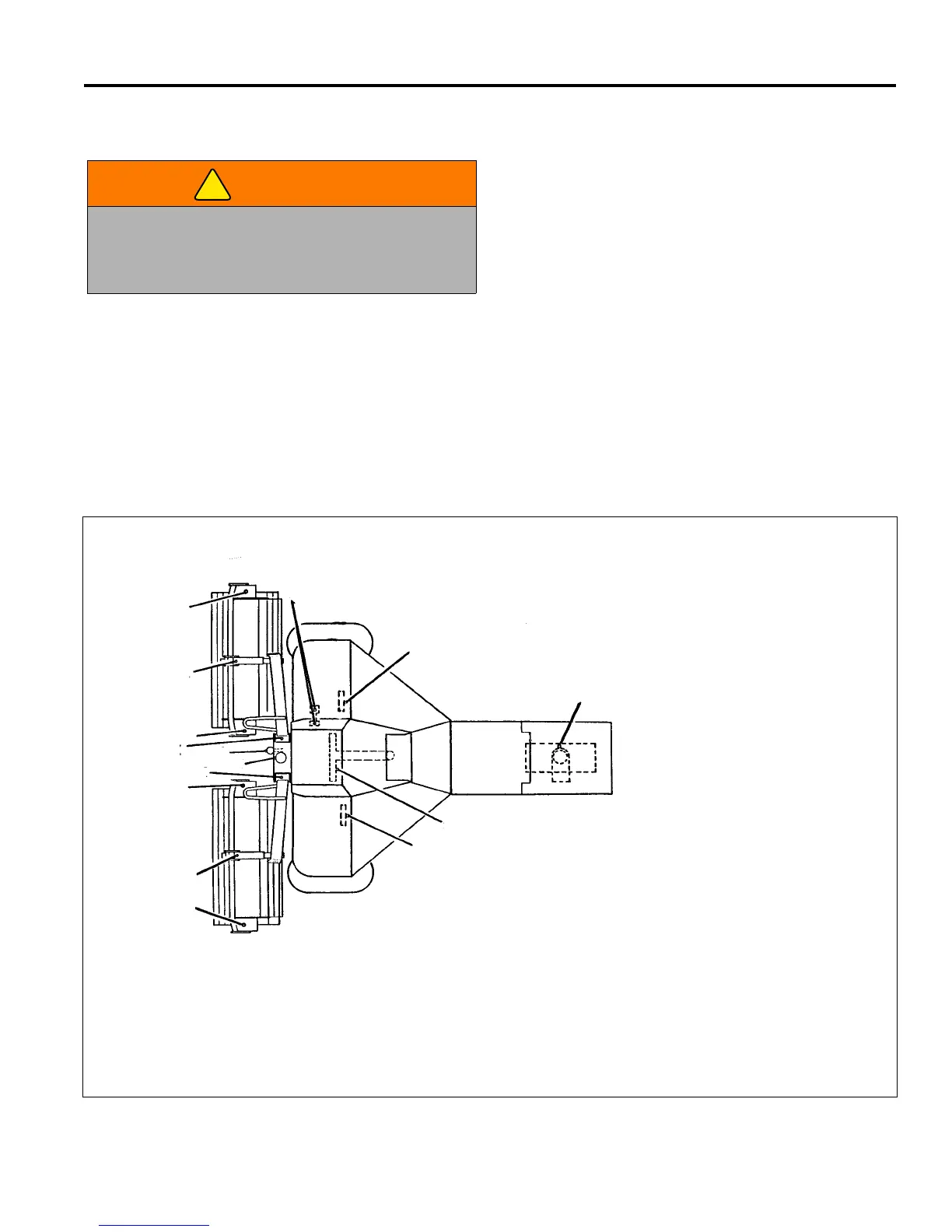

A. Mower Pivot (3 Fittings)
B. Front Lift Arms (2 Fittings)
C. Crank Hub
D. Hydraulic Cylinder
E. Center Lift Arm
F. Control Pedal Pivot (2 Fittings)
G. Steering Yoke
H. Drive Shaft Bearings (2 Fittings)
J. Reel Bearings (6 Fittings)
K. Rollers (As Required)
A
B
C
D
E
F
G
H
J
J
J
J
A
B
F
