Jadever JCL Service Manual

JADEVER SCALE CO., LTD - www.dongminhphat.com
1 JCL Service Manual - www.cantudong,com
1.Assembly Drawing

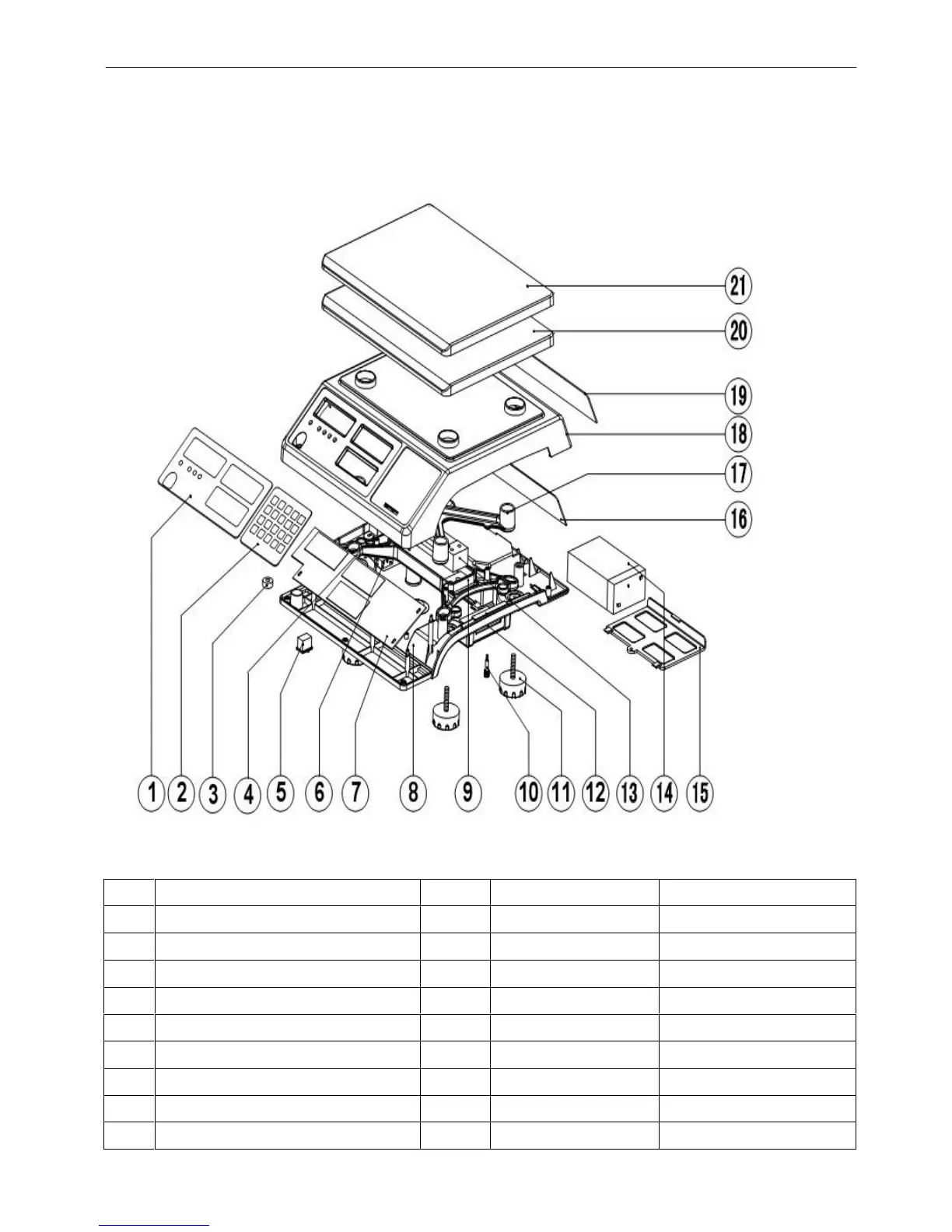

1.1 Explosive view
1-2 List of parts
No.
Part Name
Quantity
Part No.
Material No.
1
Xm JCL front panel
1
JCL-1
20-1925-0001
2
Xm Keypad
1
JCL-2
21-0506-0010
3
Xm Leveler
1
JCL-3
02-0108-0003xm(14mm)
4
Xm Transformer
1
JPL-4
61-0003-0400
5
Xm Switch
1
JCL-5
60-0000-0000xm
6
Xm Socket
1
JCL-6
60-0503-0001xm
7
Xm JCL main board
1
JCL-7
80-0124-0000
8
Xm Bottom cover
1
JCL-8
02-0000-6020
9
Xm Lower support
1
JCL-9
10-0425-0100

Jadever JCL Specifications

General

Brand	Jadever
Model	JCL
Category	Scales
Language	English
