JADEVER SCALE CO., LTD - www.dongminhphat.com
26 JCL Service Manual - www.cantudong,com

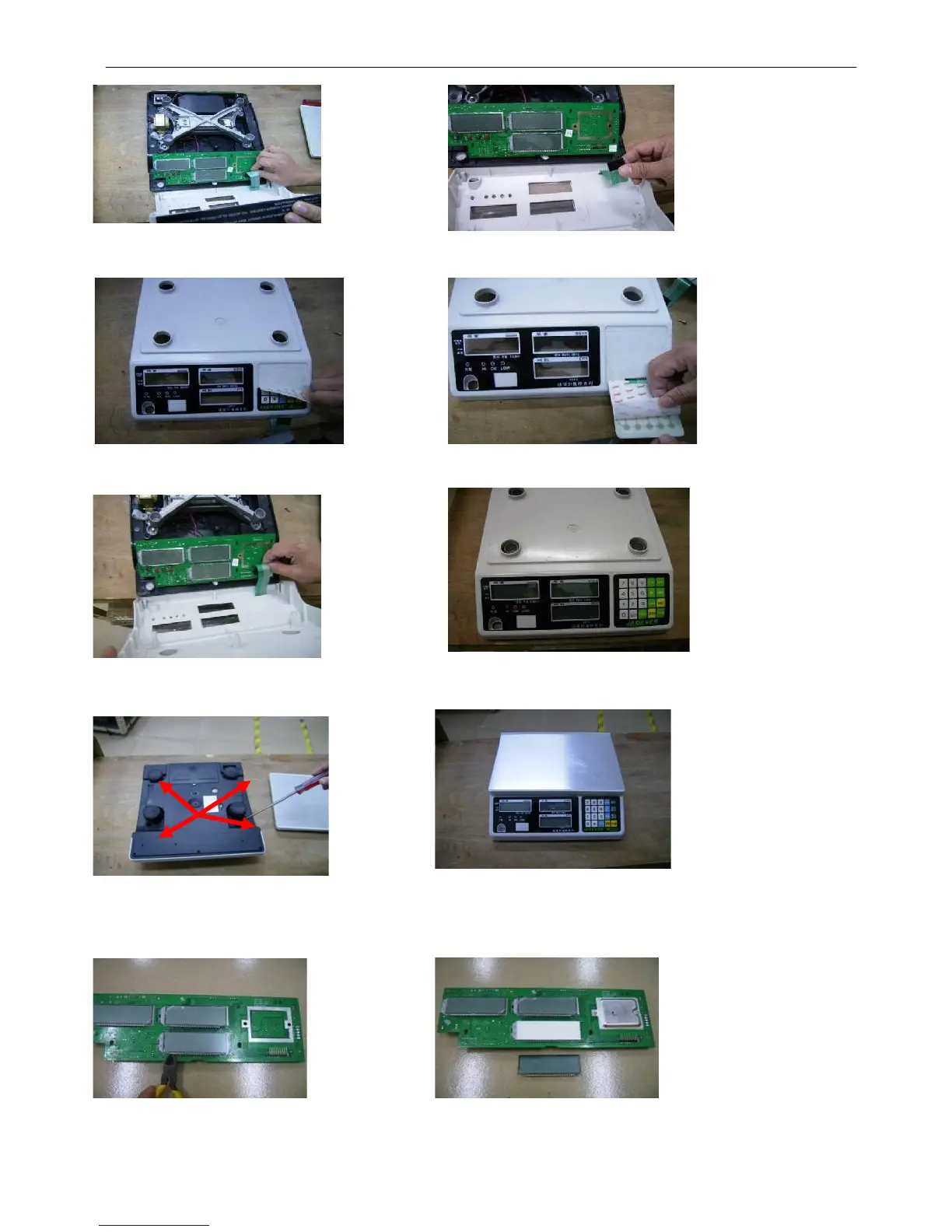

3. Open the upper cover. 4. Remove the keypad from the main board.
5.Remove the upper house and tear 6.After the removal of residual glue,
off the keypad. attach the new keypad.
7.Please insert the keypad . 8. Put the upper housing on the scale
and test the keypad (refer to 4-6)
9. Put the scale upside down, and 10. Install the stainless steel weighing
tighten the 4 fixing screws. pan properly.
6-6 LCD replacement
1. Cut off the defective LCD. 2. Remove the LCD which is been cut off from
the main board.
To Next Page
