J ADEVER SCALE CO., LTD
JWI-700W 6

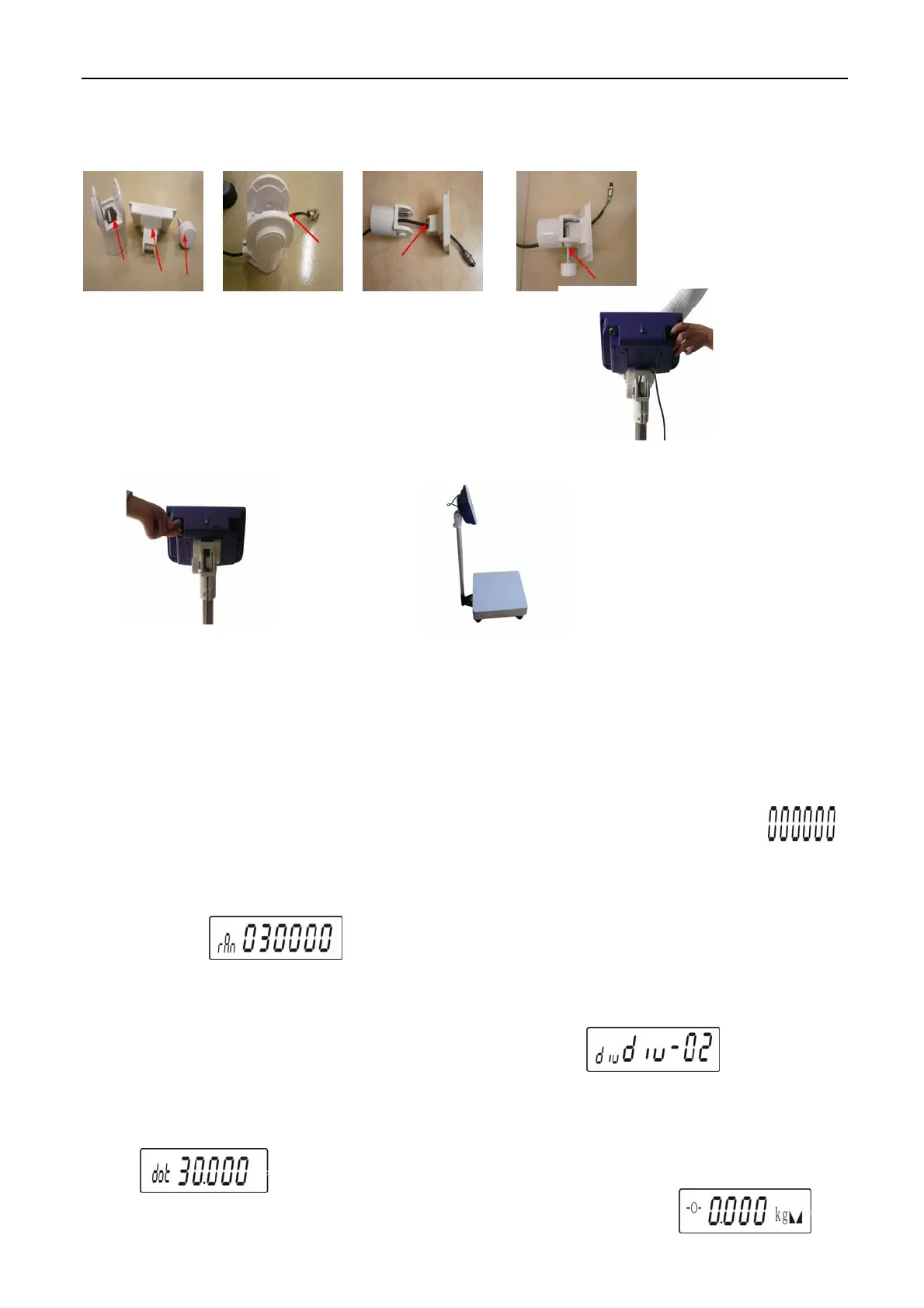

Note: if the load cell connector is too big to thread through the bracket, separate the
Bracket by Removing the Knob pole (7), see the following pictures.
→ → →
Step 3: Install the Indicator (4) on the bracket,
With the bracket aligning with the bracket slot
(8) Of the indicator.
Step 4: After connecting load cell connector to load cell port, the installation is completed.
Note: Use the knob pole (7) to adjust the inclination angle of indicator and the screw (6) to
adjust direction of the indicator. After adjusting the indicator to an optimal position and lock
the screw.
5. Setting Mode
5-1 Maximum Weighing Capacity & Division Setting
Example for setting capacity 30kg/division 2g
1) Turn on the power while pressing key
MR . Do not release key pressing till "
appears and with the right-most digit blinking. Use key UNIT/LO to shift leftwards, key
PRINT/HI to shift rightwards, key M+ to increase setting values and key M- to decrease
setting value
.
Note: settings from 1 to 999999 are available.
2Press key
G/N to advance to division setting, Use key UNIT/LO or key PRINT/HI to
steps through available setting and release on desired one.
3) Press key G/N to accept the current setting on the display and advance to decimal place
setting. Use key
UNIT/LO (leftwards) or key PRINT/HI (rightwards) to move the decimal
point.
4) Press key G/N to save all the settings and return to weighing mode.
