ENGLISH
Jandy
®
VS FloPro™ Variable-Speed Pumps
|
Installation & Operation Manual
Table 1. Pipe Sizing Chart for Schedule 40 PVC
Pipe Size Maximum Flow
Suction
(6 feet per second)
Maximum Flow
Discharge
(8 feet per second)
1½"
(38 mm)
37 GPM
(140 LPM)
50 GPM
(189 LPM)
2" (51 mm) 62 GPM
(235 LPM)
85 GPM
(322 LPM)
2½"
(64 mm)
88 GPM
(333 LPM)
120 GPM
(454 LPM)
3"
(76 mm)
136 GPM
(515 LPM)
184 GPM
(697 LPM)
4"
(102 mm)
234 GPM
(886 LPM)
313 GPM
(1185 LPM)
Installation Recommendations
1. To help prevent difculty in priming, install the
suction pipe without high points (above inlet
of pump - inverted “U”s, commonly referred to
in plumbing as an airlock) that can trap air. For
installations of equipment up to 100 feet (30 m)
from the water, refer to Table 1, the pipe sizing
chart. For installations of equipment more than 100
feet (30 m) from the water, the recommended pipe
size must be increased to the next size.
2. VS FloPro Pumps come equipped with unions on
both the suction and discharge ports. This feature
simplies installation and service and eliminates
the possibility of leaks at threaded adapters.
3. The VS FloPro Pump must be connected to at least
two (2) hydraulically-balanced main drains for each
pool pump suction line. Each drain (suction outlet)
assembly must be provided with covers and must be
listed or certied to the latest published edition of
ANSI
®
/ASME
®
A112.19.8, or its successor standard,
ANSI/APSP-16. The suction ttings of the main
drains must be at least three (3) feet (1 m) apart or at
different planes. The suction ttings can be a drain
and skimmer, two (2) drains, two (2) skimmers, or a
skimmer with an equalizer line installed. Check the
local codes for proper installation.
Pump
Height
Suction
Side
Height
No Base Required
Hayward
®
Super Pump
®
Pentair
®
SuperFlo
®
Sta-Rite
®
SuperMax
®
Small Base
Hayward Super II™
Jandy PlusHP by Zodiac
®
Jandy Max HP by Zodiac
Small Base + Large Base
Sta-Rite Max-E-Pro
®
Sta-Rite Dura-Glas
®
Sta-Rite Dura-Glas II
Sta-Rite Max-E-Glas
®
Small Base with Spacers
Pentair WhisperFlo
®
Sta-Rite Dyna-Glas™
VS FloPro with Small Base
Option
1
Option
2
Option
3
Option
4*
* Optional
(Order R0546400)

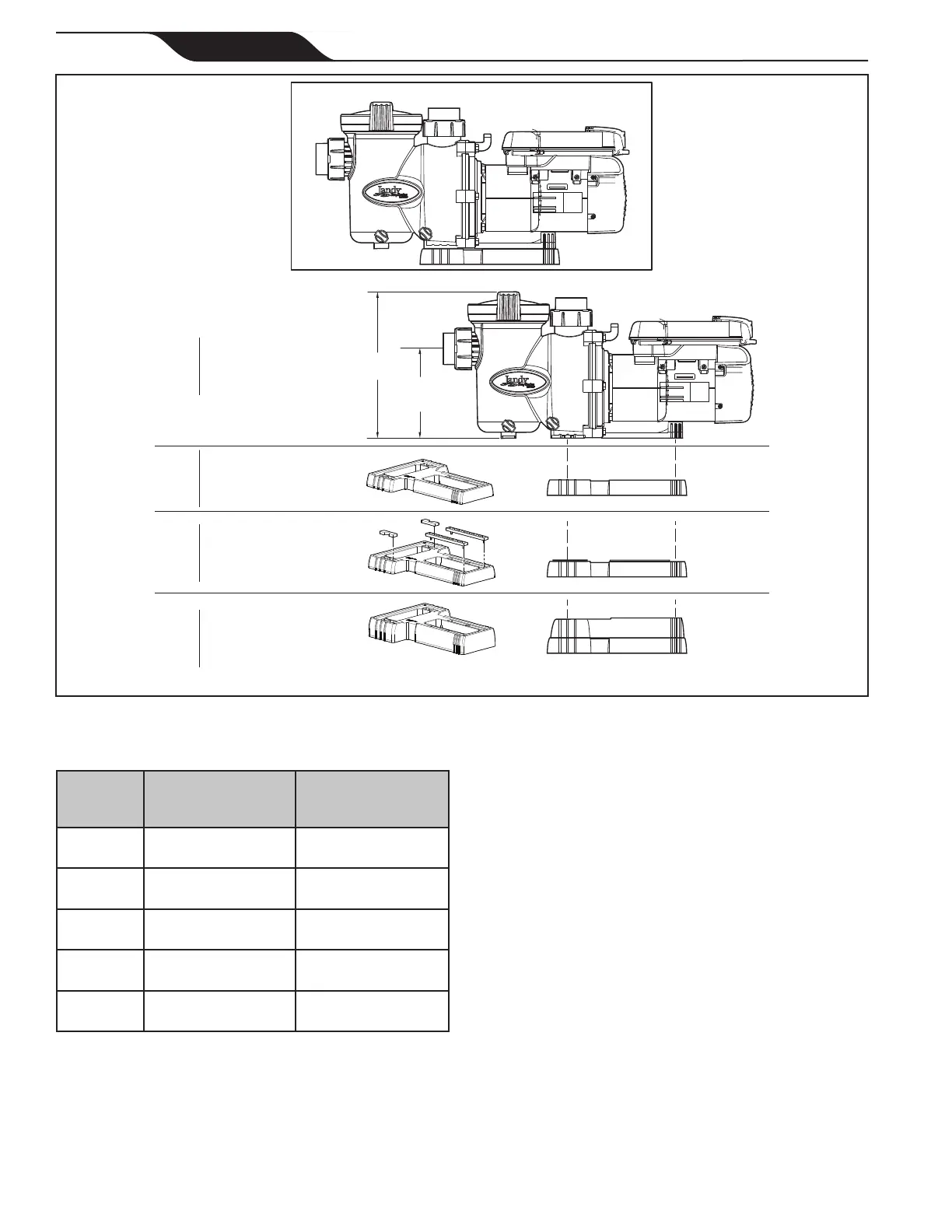

Figure 3. VS FloPro Pump and Base Options
