Jandy VSFHP185DV2A - Product Specifications and Technical Data; Exploded Views

Page 21
ENGLISH
Jandy
®
Variable-Speed Pumps
|
Installation & Operation Manual
Section 7. Product Specications and Technical Data
For a complete list of replacement parts, please visit www.Jandy.com or contact Zodiac Technical Support
at 1.800.822.7933 or email productsupport@zodiac.com. In Canada, please call 1.888.647.4004 or email
customerservicePSC@zodiac.com.
7.1 Exploded Views
1 - Motor, Drive
2 - Access Cover
3 - Access Cover O-Ring
4 - Fan Cover
5 - Motor Hardware
6 - Motor Mounting Foot
7 - Backplate Hardware
8 - Backplate O-Ring
9 - Impeller and Hardware
10 - Diffuser O-Ring
11 - Pump Body
12 - Drain Plugs with O-Ring
13 - Tail Piece, O-Ring and Union Nut
14 - Pump Debris Filter Basket
15 - Locking Ring and O-Ring
16 - Diffuser and Hardware
17 - Mechanical Seal
18 - Backplate
19 - Small adjustable base w/spacers (VSFHP Models Only)
20 - Large Adjustable Base (Optional part # R0546400 for use
with VSFHP Models Only)

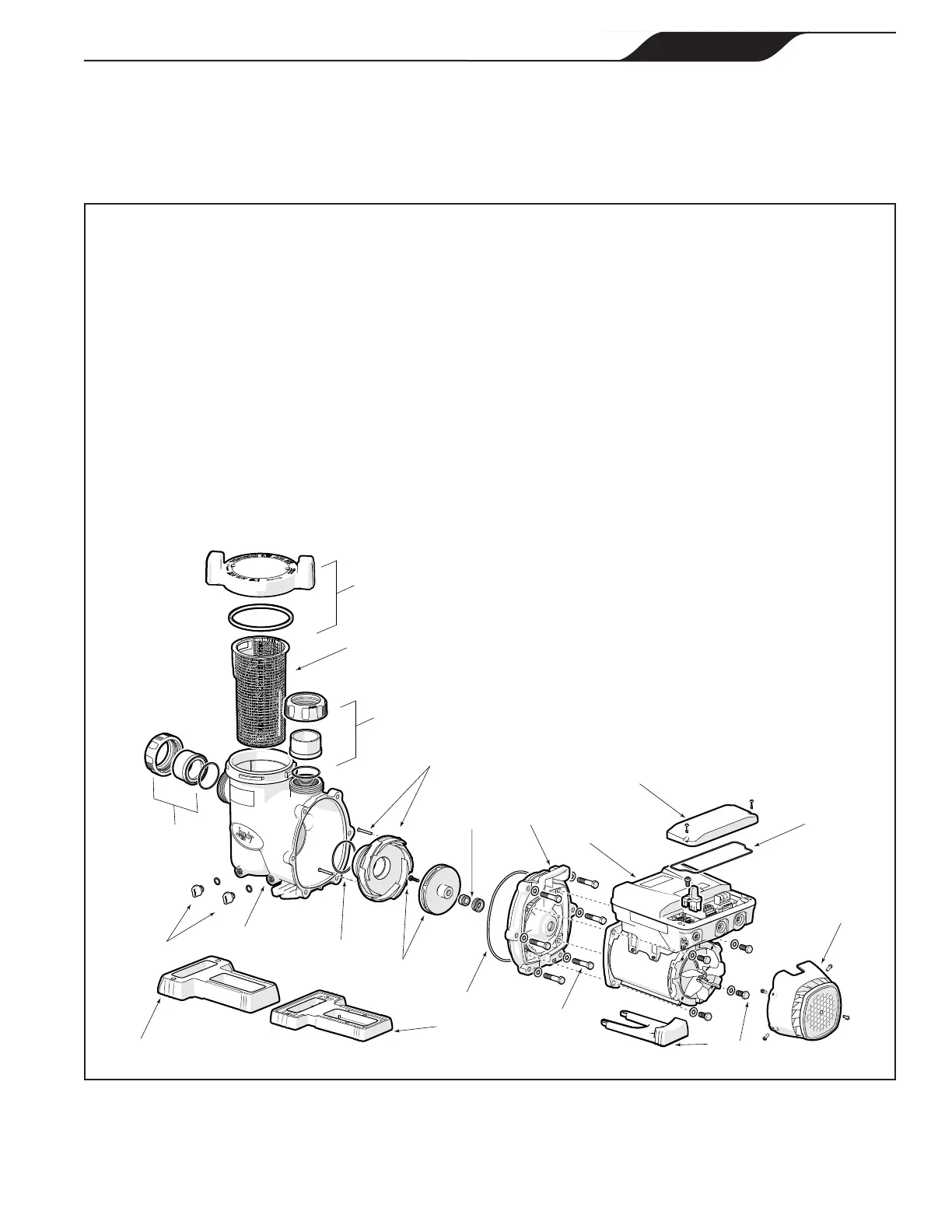

Figure 15. Jandy DV2A Model Variable Speed Pump Exploded View
15
14
13
12
11
7
10
2
1
4
3
6
8
9
5
16
17
18
19
20
13
Exploded view for general reference only. Specic
models may differ. Please refer to contact information
above to obtain spare parts information for specic
pump models.
