Page 24
Reactive Power Controller
= Key 1 = Key 2 = Key 3
Prog

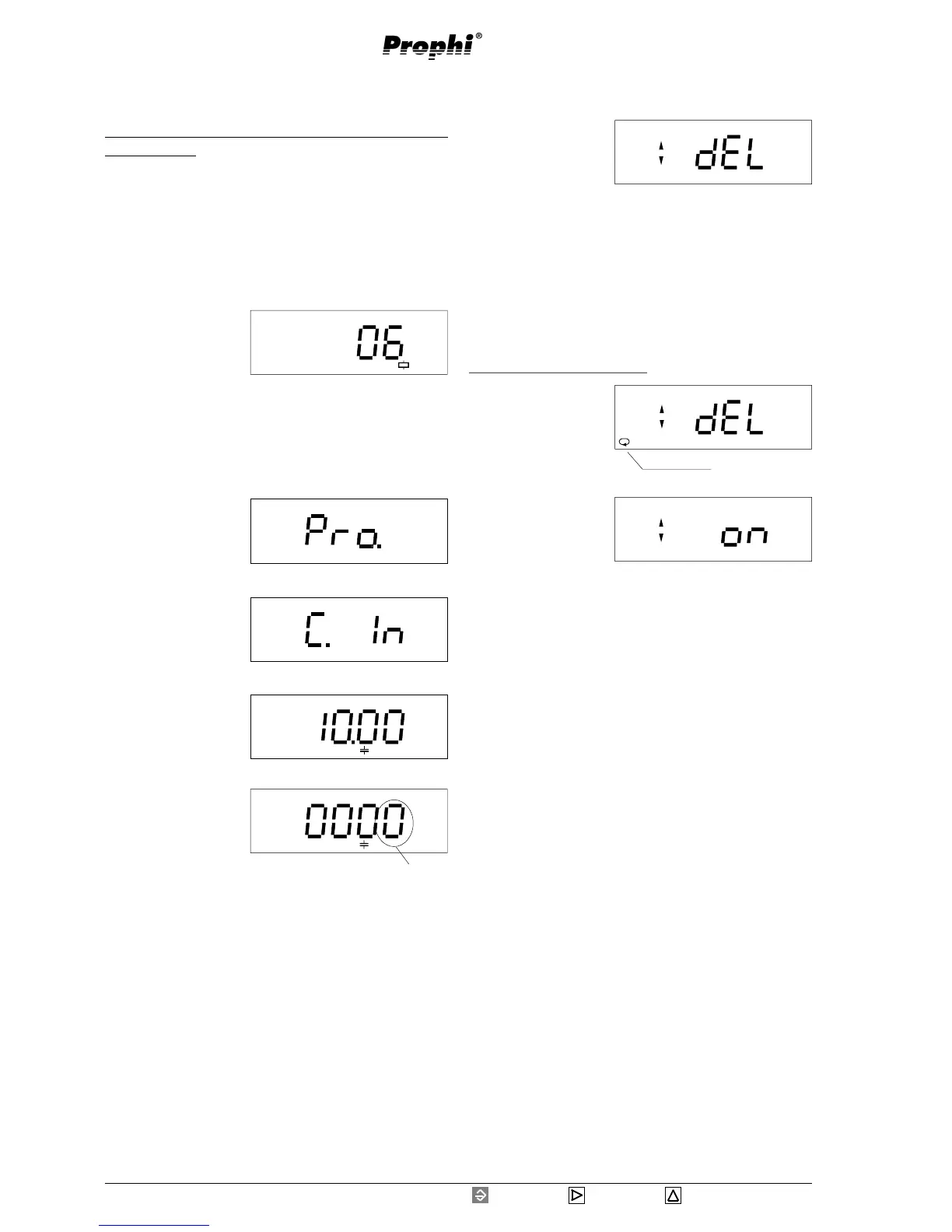

Example 3: Prophi 6R6T with 6 transistor outputs and
6 relay outputs
Two transistor outputs and 6 relay outputs shall be pro-
grammed.
The programming of the relay outputs is carried out in
the menu standard programming, and the programming
of the transistor outputs is carried out in the menu ex-
panded programming.
1. step: Programming of the relay outputs.
In standard program-
ming you move to the
indication of the
number of stages using
key 1. 6 stages are pro-
grammed, so no change is required.
2. step: Programming of the transistor outputs.
The programming of the transistor outputs is carried
out in the expanded
programming.
Please move to the ex-
panded programming
using key 1. Now press
key 2.
In the expanded pro-
gramming appears the
menu point "Fix
stages".
Prog
Prog
Using key 3, you reach
the indication stage
power.
Here the stage (7) is se-
lected by pressing key
2. Please confirm with
key1. One digit for the
stage power is flashing.
k VAr
1
Prog
If this stage is engaged, the required stage power must
be programmed by pressing the keys 2 and 3.
Select the digit to be changed using key 2. The selected
digit is flashing. Now change the digit using key 3.
If all ciphers are flashing, the shown digit can be multi-
plied by 10 using key 3. Also the dimension of the unit
can be changed.
Delete peak and lowest values
Peak and lowest values
of various measured
values are saved every
15 minutes.
The peak values and
lowest values can only be deleted altogether.
The following values are not deleted:
Peak temperature value,
Switching time of the capacitor stages and
Number of switchings per stage.
Example: Delete peak values
Move to indication for
peak and lowest values
by pressing key 1.
The automatic symbol
disappears.
Select delete with key 3.
Text "on" is flashing.
With key 1 you move
to the expanded pro-
gramming and activate
deletion.
VAr
7
flashing
Automatic
