Page 9
Reactive Power Controller
= Key 1 = Key 2 = Key 3
Diagr. Measurement with Amperemeter in series
Diagr. Measurement via sum current transformers
Current measurement
The current measurement is carried out via ../5A or ../
1A current transformers.
If the current must be measured with an Amperemeter
additionally to Prophi, it must be connected in series.
Sum current measurement
If Prophi is connected to a sum current transformer, the
total transformation ratio must be programmed.
Attention!
For unequal load of the outer conductors, the
current should be measured in the outer con-
ductor, which is loaded most heavily.
Verbraucher 1
Consumer 1
Verbraucher 2
Consumer 2
Einspeisung 1
Supply 1
Einspeisung 2
Supply 2
Prophi
L l
k K
l L
K k
AK AL BK BL
kl
kl
Verbraucher
Consumer
Prophi
Einspeisung
Supply
L l
K k
A
k
l
m

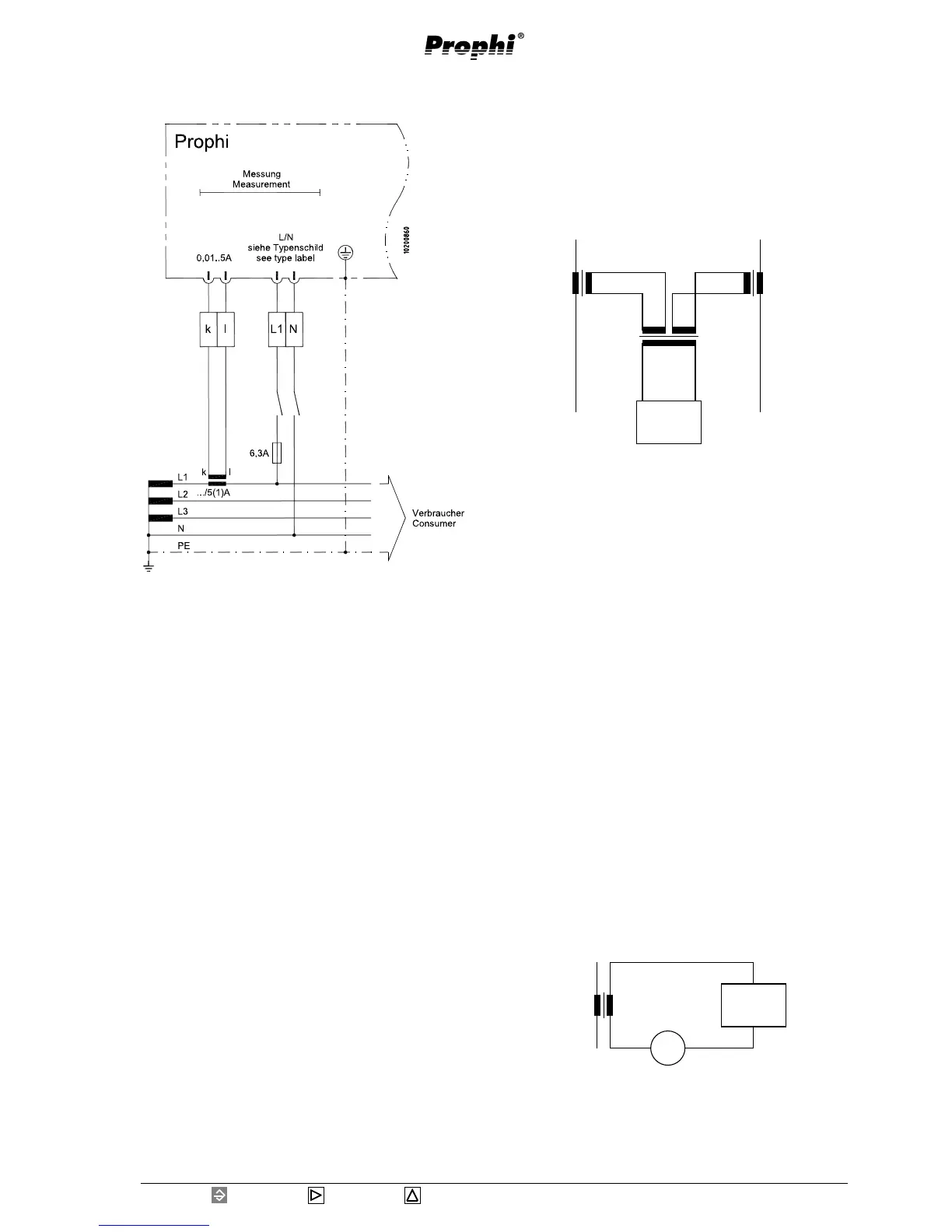

Abb.: Anschluss der Mess- und Hilfsspannung zwischen
L1-N und der Strommessung über Stromwandlers.
