Page 25
Reactive Power Controller
= Key 1 = Key 2 = Key 3
Prog

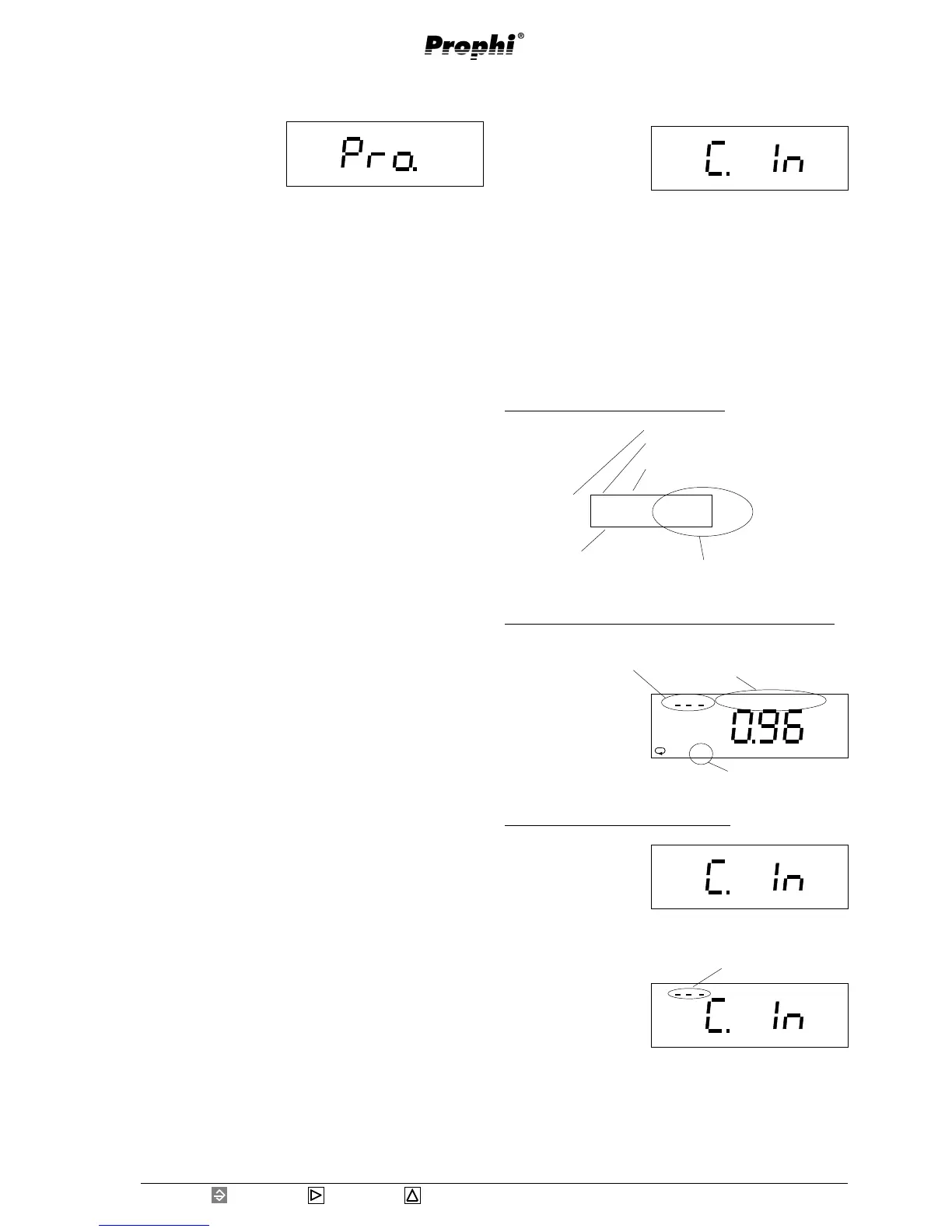

Fix stages
The first three capaci-
tor stages can be fixed
switched in alterna-
tively. Fix stages are
marked by a line be-
low the number of the capacitor stage.
Fix stages cannot be included in the controlling. Never-
theless they are considered in the stage ratio, so that in
the stage ratio in the most disadvantageous case (three
fix stages) in the standard programming only two stage
ratios are available. To get a better solution of the stage
power, the capacitor power must be set for every single
stage in the expanded programming .
Prog
1. capacitor stage (Fix stage)
2. capacitor stage (Fix stage)
3. capacitor stage (Fix stage)
controllable capacitor stages
Example 1: Indication of stage ratio
Example: Programming of fix stages
Please select the fix
stages by using key 1.
The first three stage
numbers are flashing.
1 2 3
Prog
cos
ϕϕ
ϕϕ
ϕ
ind
1 2 3 5 6 12
ϕ2 ϕ2
ϕ2 ϕ2
ϕ2
The fix stages 1, 2 and
3 are switched in
Target-cos(phi2) is active.
Capacitor stages 5,6 and 12
are switched in
The actual mean cos
(phi) is 0.96ind.
Example 2:Indication of fix stages in automatic mode
Indicated on display
Expanded programming
In the expanded pro-
gramming those set-
tings are carried out,
which are required
very rarely.
With key 3 you can change between the indications.
With key 1 the selected indication can be chosen for
changing.
The following settings and readings can be carried out in
expanded programming:
Fix stages,
Discharge time,
Disconnection pause of relay stages,
Power station service,
Stage power, 1. - 2. stage,
Choke degree,
Voltage transformer ratio,
Harmonic table,
Switching frequency of transistor stages,
Alarm calls,
Averaging time for reactive power,
Averaging time of the mean value cos(phi),
Fan control,
Overtemperature disconnection,
Indication in manual mode,
Password,
Contrast,
Reset of programming,
Connection configuration,
Software release and
Serial number.Power station service,
Stage power, 1. - 2. stage,
Choke degree,
Voltage transformer ratio,
Harmonic table,
Switching frequency of transistor stages,
Alarm calls,
Averaging time for reactive power,
Averaging time of the mean value cos(phi),
Fan control,
Overtemperature disconnection,
Indication in manual mode,
Password,
Contrast,
Reset of programming,
Connection configuration,
Software release,
Serial number and
RS485 interface.
1 : 2 : 4 : 8 : 8 : 8....
All three fix stages
are switched on.
1 2 3
Prog
With key 3 you switch
in the fix stages.
With key 2 you dis-
connect the fix stages.
Confirm selection with
key 1 and continue with expanded programming using
key3.
