Page 36
Reactive Power Controller
= Key 1 = Key 2 = Key 3
Prog
Upper temperature limit
Prog
Lower temperature limit
Example: Assign one output to ventilator control
Go to upper tempe-
rature limit in ex-
panded programming
using key 3.
Move to selection of
the output using key 2.
Output number 13 means the alarm output. Confirm
selection with key 1. The first digit is flashing.
Select the digit to be changed with key 2 and change
with key 3.
Confirm selection with key 1. No digit is flashing.
Carry on in expanded programming with key 3.
Example: Programming of the lower temperature limit
Go to upper tempe-
rature limit in ex-
panded programming
using key 3.
Go to lower limit us-
ing key 2.
Confirm selection with
key 1. The first number
is flashing.
Select number with key
two and change with key 3.
Confirm selection with key 1. No digit is flashing.
Carry on in expanded programming with key 3.

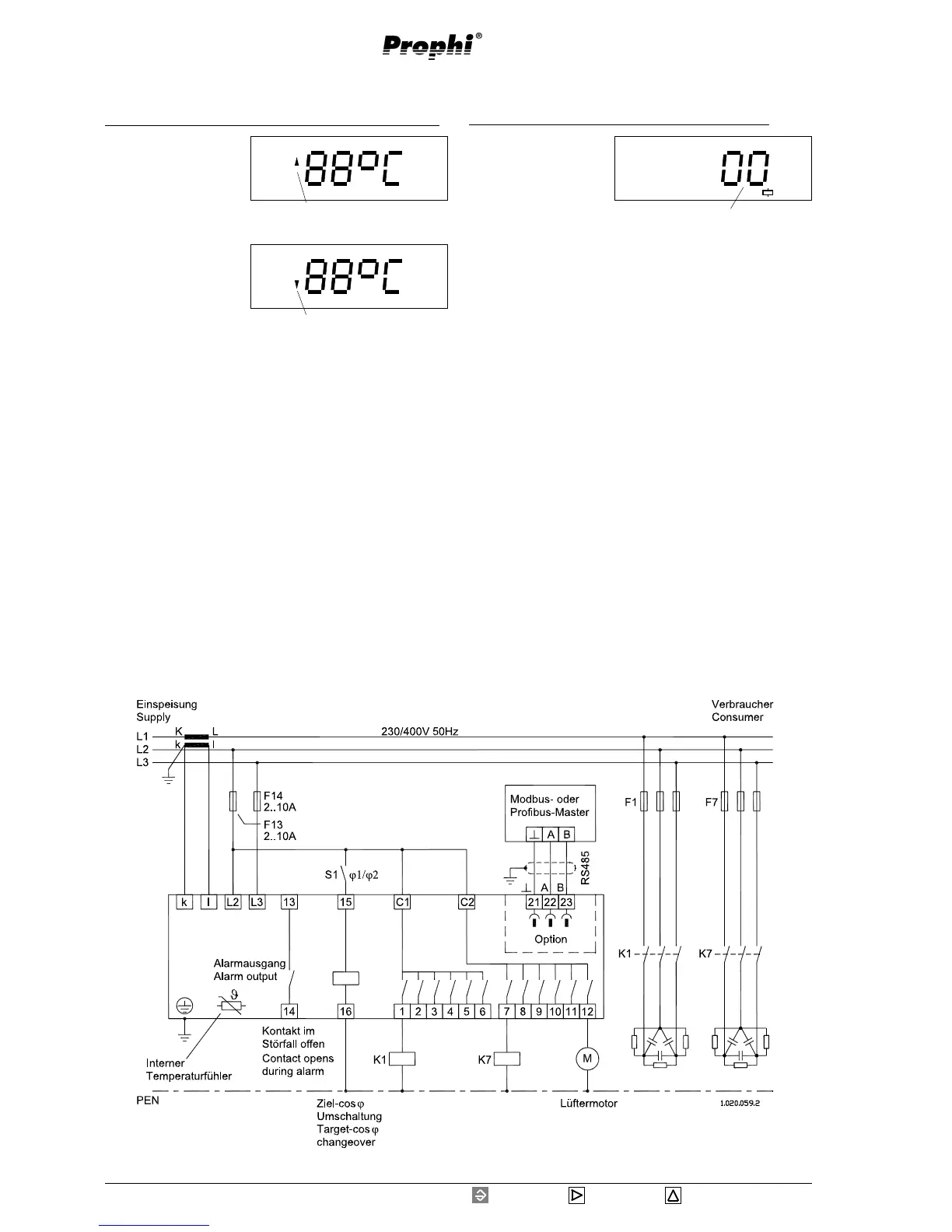

Diagr.: Connection example, reactive power controller with connected ventilator motor
motor of
ventilator
Prog
No output selected
