UMG 604
RS485 profibus DP V0 slave
The profibus connection in the UMG604 is a
9 pin DSUB socket.
We recommend use of a 9 pin profibus
connector for the connection, e.g. as made by
Phoenix, type “SUBCON-Plus-ProfiB/AX/SC”
with product number 2744380. (Janitza art.
no.: 13.120.539)
Profibus connection

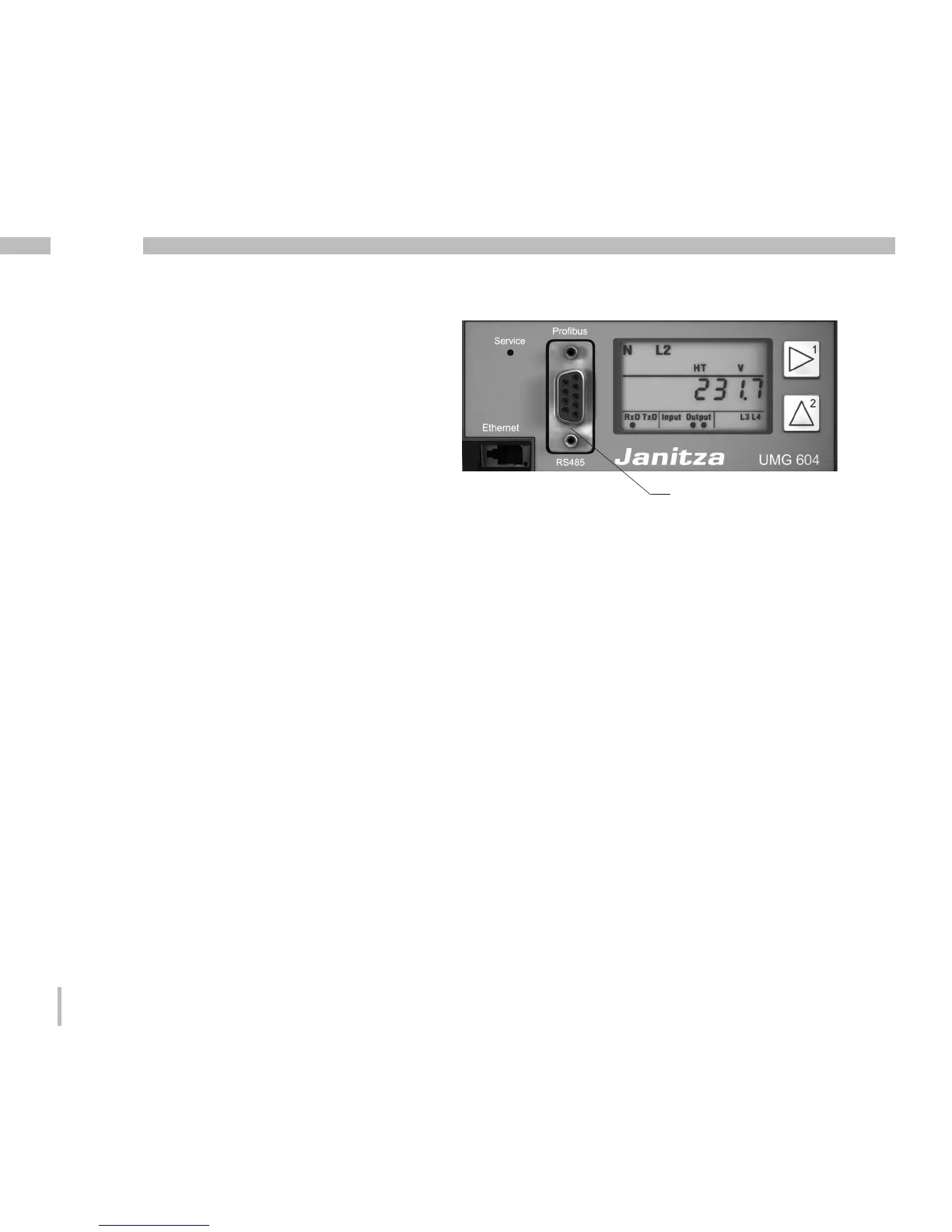

Fig. 36.1 UMG604 with profibus interface.
