Usage and indication

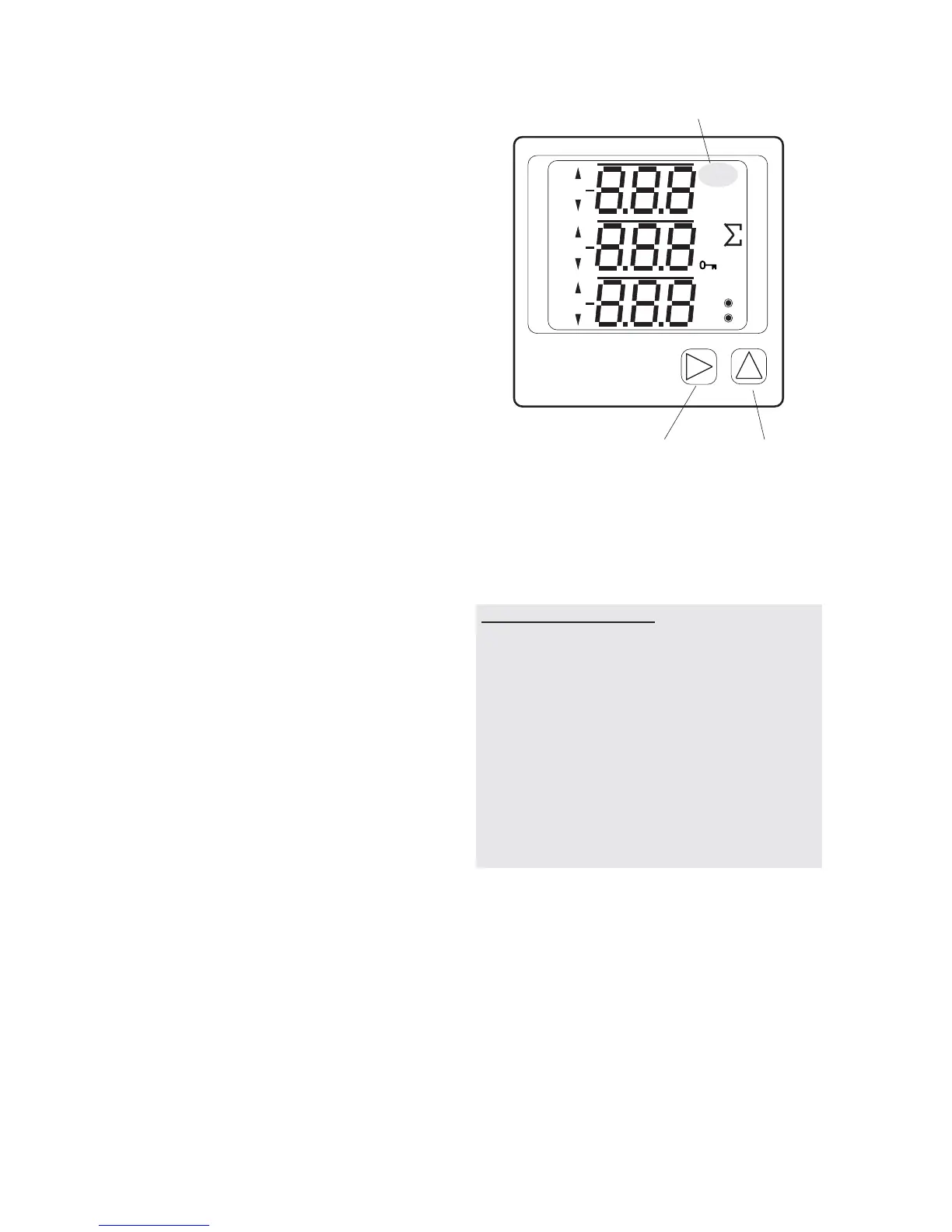

The usage of the UMG96L is carried out via the
keys one and two. Measured values and pro-
gramming data are indicated on the liquid crys-
tal display. You must distinguish between
Indication mode and
Programming mode.
By entering a password, you can avoid uninten-
tional change of programming data.
Indication mode
In indication mode please scroll through the
programmed measured value indications by
using the keys 1 and 2. When the device is de-
livered, you can call up all measured values
shown in table 1. For each measured value in-
dication, up to three measured values are indi-
cated. The measured value rotation allows to
indicate all selected measured values on an al-
ternate basis with a selectable changing time.
Programming mode
In programming mode the settings, which are
necessary for the operation of the UMG96L,
can be indicated and changed. Pressing the
keys 1 and 2 simultaneously for about 1 sec-
ond, you reach programming mode via the
password indication. If no user password is pro-
grammed, you reach the first programming
menu directly. The programming mode is
marked with the text „PRG“ in the display.
With key 2 you can shift between the program-
ming menues.
If you are in the programming mode and no
keys are pressed for 60 seconds, or you press
the keys 1 or 2 simultaneously for approx. 1
second, you return to the indication mode.
Programming mode
Key 2
Key1
12
cap
cos
ind
ϕϕ
ϕϕ
ϕ
cap
cos
ind
ϕϕ
ϕϕ
ϕ
cap
cos
ind
ϕϕ
ϕϕ
ϕ
L1
L2
L3
Hz
S
CT VT
K1
K2
L-L
PRG
MkWh
MkVArh
Programming menus:
- Current transformer,
- Voltage transformer,
- Averaging times,
Measured value indications
- Changing time,
- Measured value selection,
- Measured value rotation,
- Delete minimum and peak values,
- Delete energy,
- LCD contrast,
- Software Release,
- User pasword.
