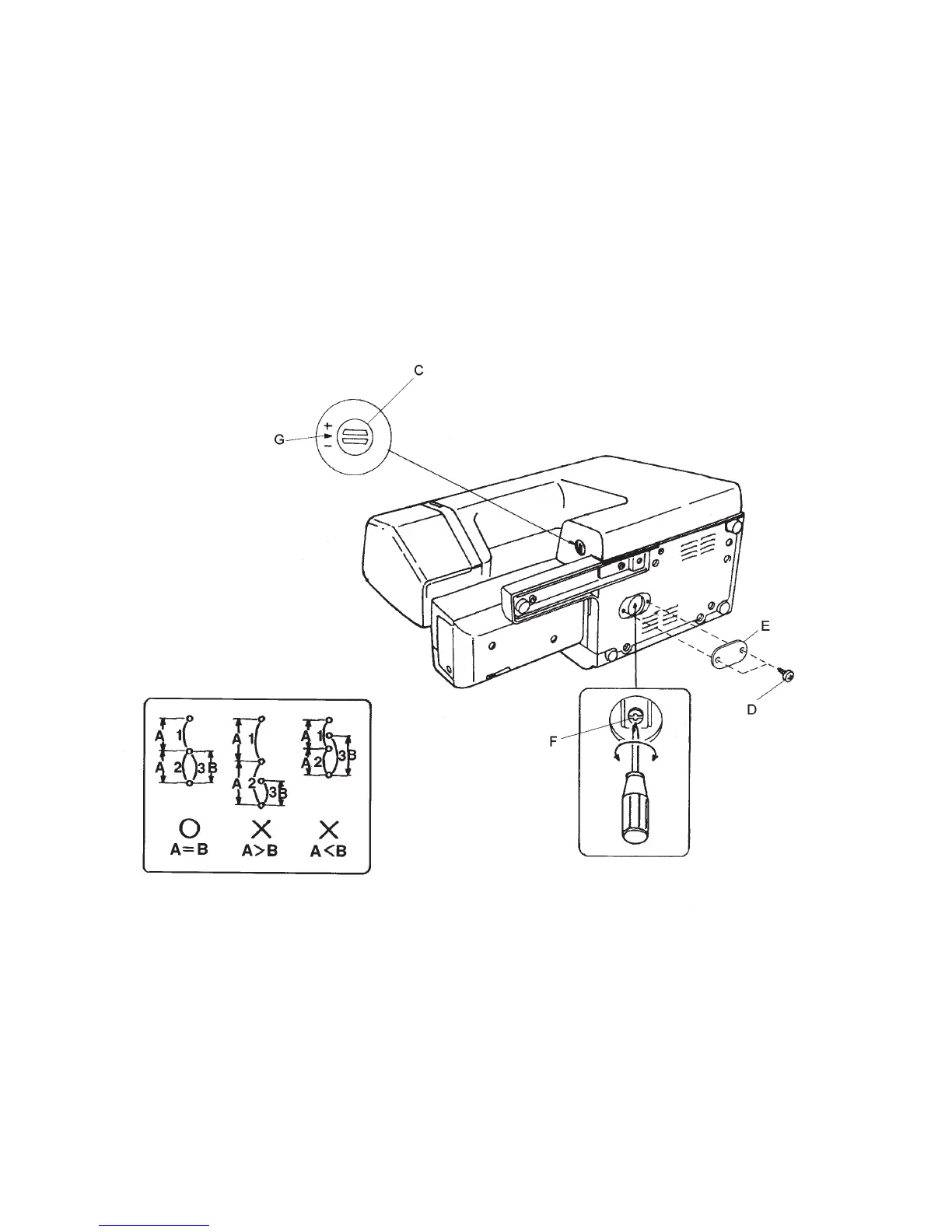

To adjust the stretch feed balance
When the triple straight stitch is sewn with the feed balancing dial (C) at the standard setting
mark (G, the forward feed (A) and reverse feed (B) should be same length.
1. Set the triple straight stitch and the feed balancing dial at standard setting mark (G).
2. Remove the screws (D) and base cap (E).
3. Adjust the stretch stitch feed balance by turning the adjusting screw (F) in direction A or B.
4. Attach the base cap (E) with screws (D).
14
