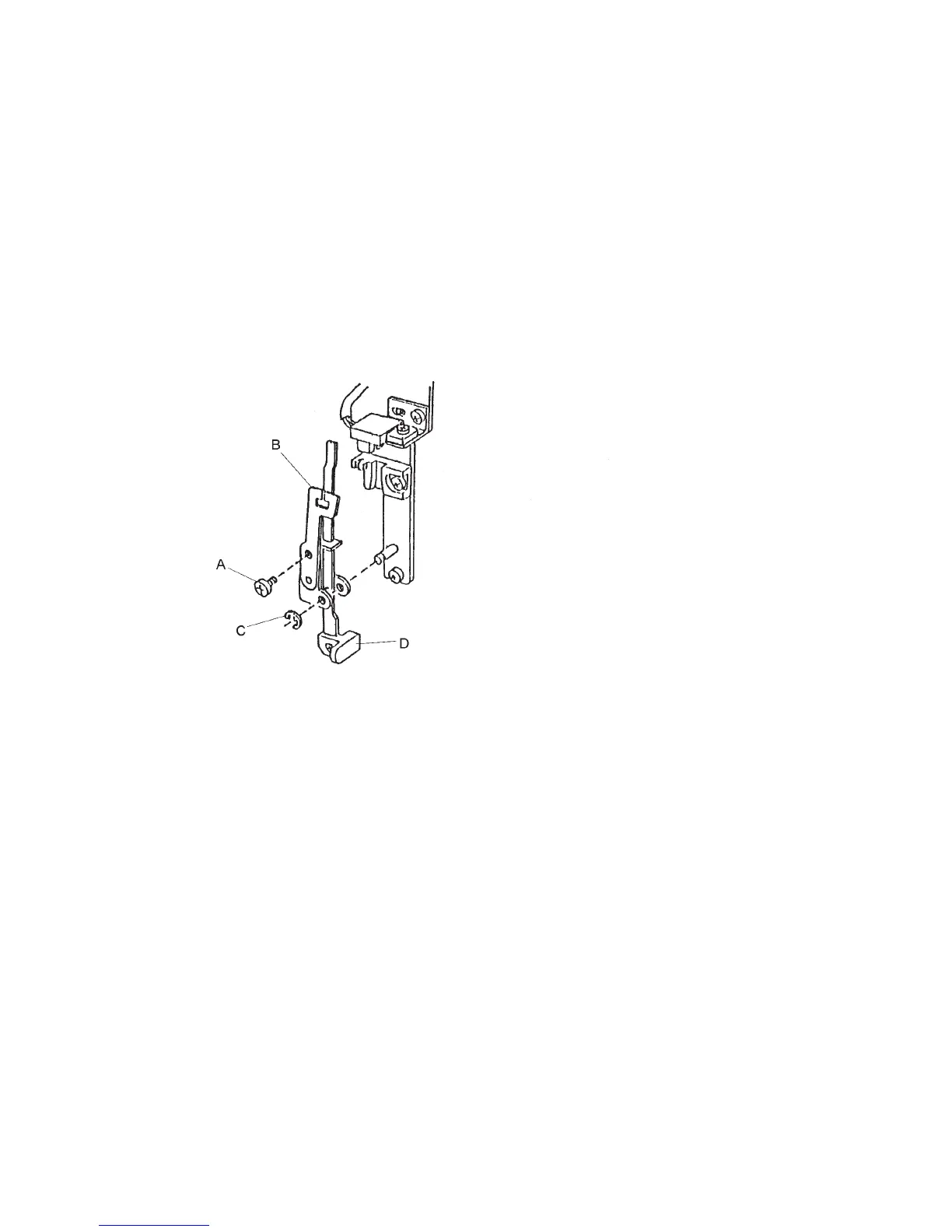

Buttonhole lever attaching and removing
(TO REMOVE)
1. Remove set screw (A) and BH shield plate (B).
2. Remove the snap ring (C).
3. Pull the buttonhole lever (D) toward you, and remove it.
(TO ATTACH)
4. Insert the shaft into the holes of the buttonhole lever (D) , and attached the buttonhole
lever with the snap ring.
5. Attach the buttonhole shield plate (B) with the screw (A).
NOTE: After changing the buttonhole lever, adjust the buttonhole lever position (See page
16).
