Janome Memory Craft 3000 Service Manual

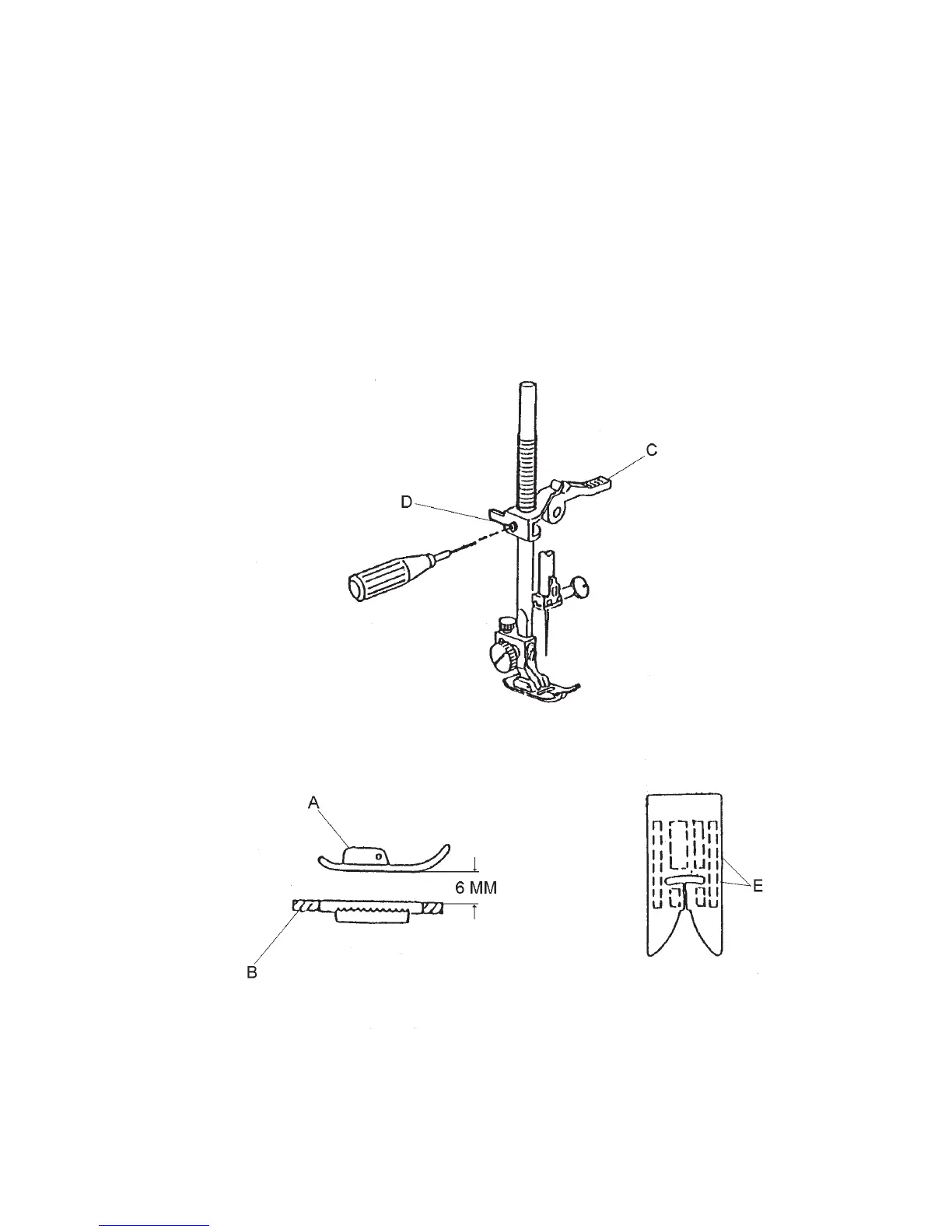

To adjust the presser bar height
The standard presser bar height is 6.0 mm between the bottom surface of the foot (A) and
needle plate(B) when the presser bar (C) lifter is lifted.
1. Open the face plate.
2. Raise the presser foot, loosen the presser bar bracket screw (D) and adjust the height to
6.0 mm.
3. Check if the presser foot is parallel to the openings for the feed dog on the needle plate as
shown below (E). If not, adjust it.
4. Tighten the presser bar bracket screw while holding the presser bar to keep the foot parallel
to the openings.
5. Close the face plate.
5

Janome Memory Craft 3000 Specifications

General

Brand	Janome
Model	Memory Craft 3000
Category	Sewing Machine
Language	English
