Janome Memory Craft 3000 - Top Cover & Face Plate Attaching and Removing

Top cover & face plate attaching and removing

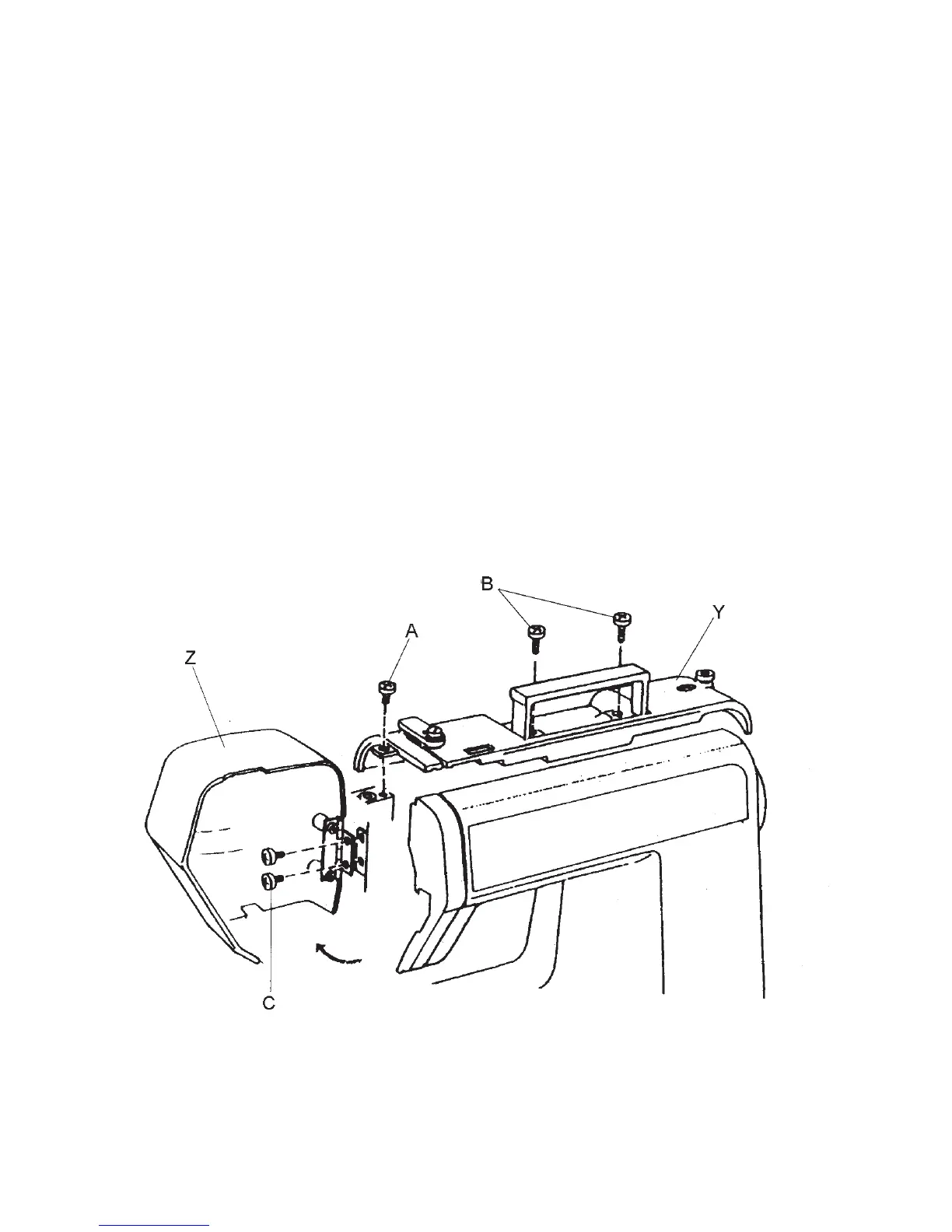

TOP COVER (Y)
(TO REMOVE)
1. Remove 3 screws (A & B) and top cover.
(TO ATTACH)
2. Attached the top cover with 3 screws (A and B).
FACEPLATE (Z)
(TO REMOVE)
3. Remove 2 screws (C) and face plate.
(TO ATTACH)
4. Attach the face plate with 2 screws (C).
