Transformer unit attaching and removing
(TO REMOVE)

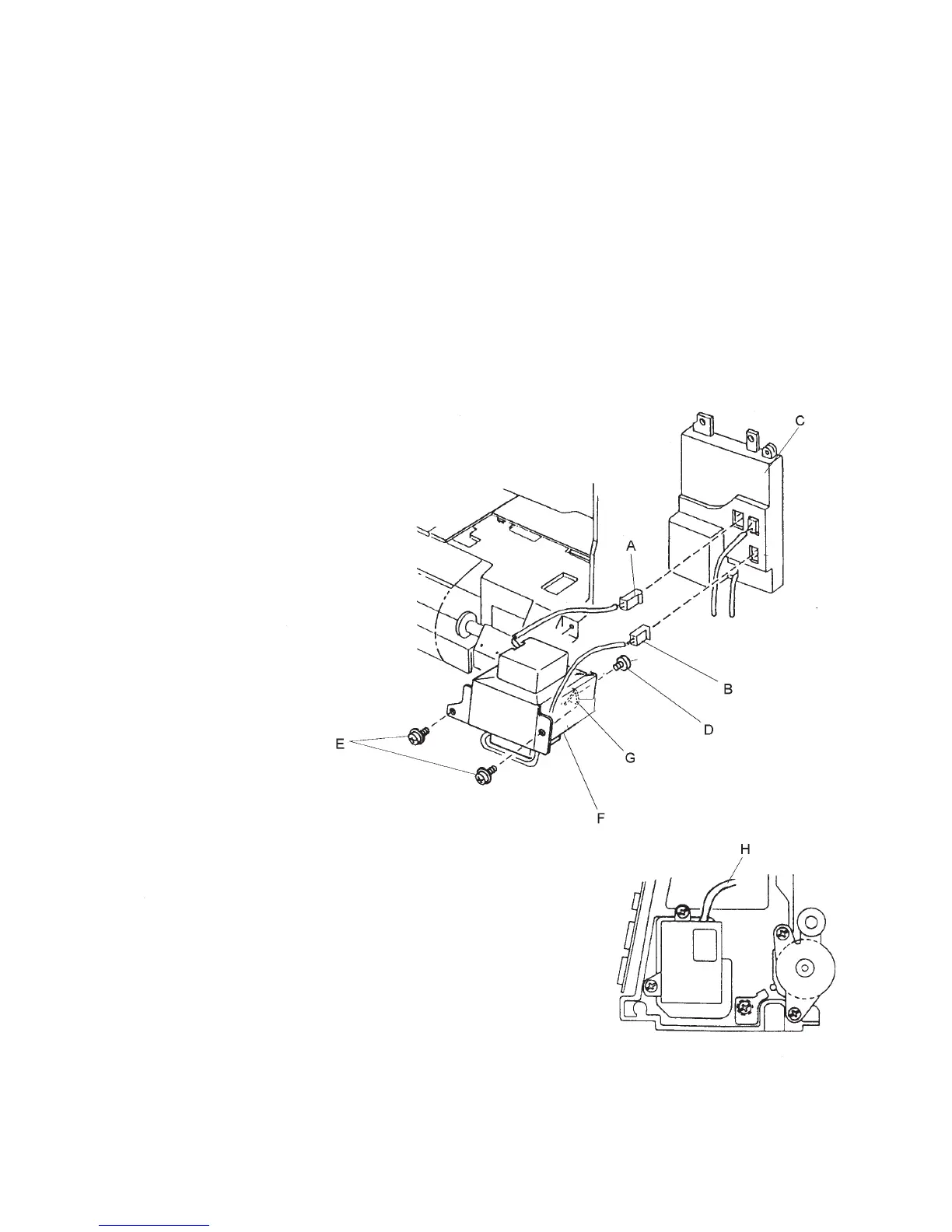

1. Remove the front panel unit (See page 4).
2. Remove the Board A and C (See page 17) and machine socket unit (See page 20).
3. Pull out the connectors (A & B) for the transformer (F) from the Board C.
4. Remove 3 screws (D & E) and transformer (F).
(TO ATTACH)
5. Attach the transformer unit (F) with 3 screws (D & E).
2 for the transformer (F) and 1 for the hook (G).
6. Insert the connectors (A & B) into the Board C.
The cord (H) for connector (A) should be set as shown below.
7. Attach the machine socket unit, Board C, Board A and front panel.
21
