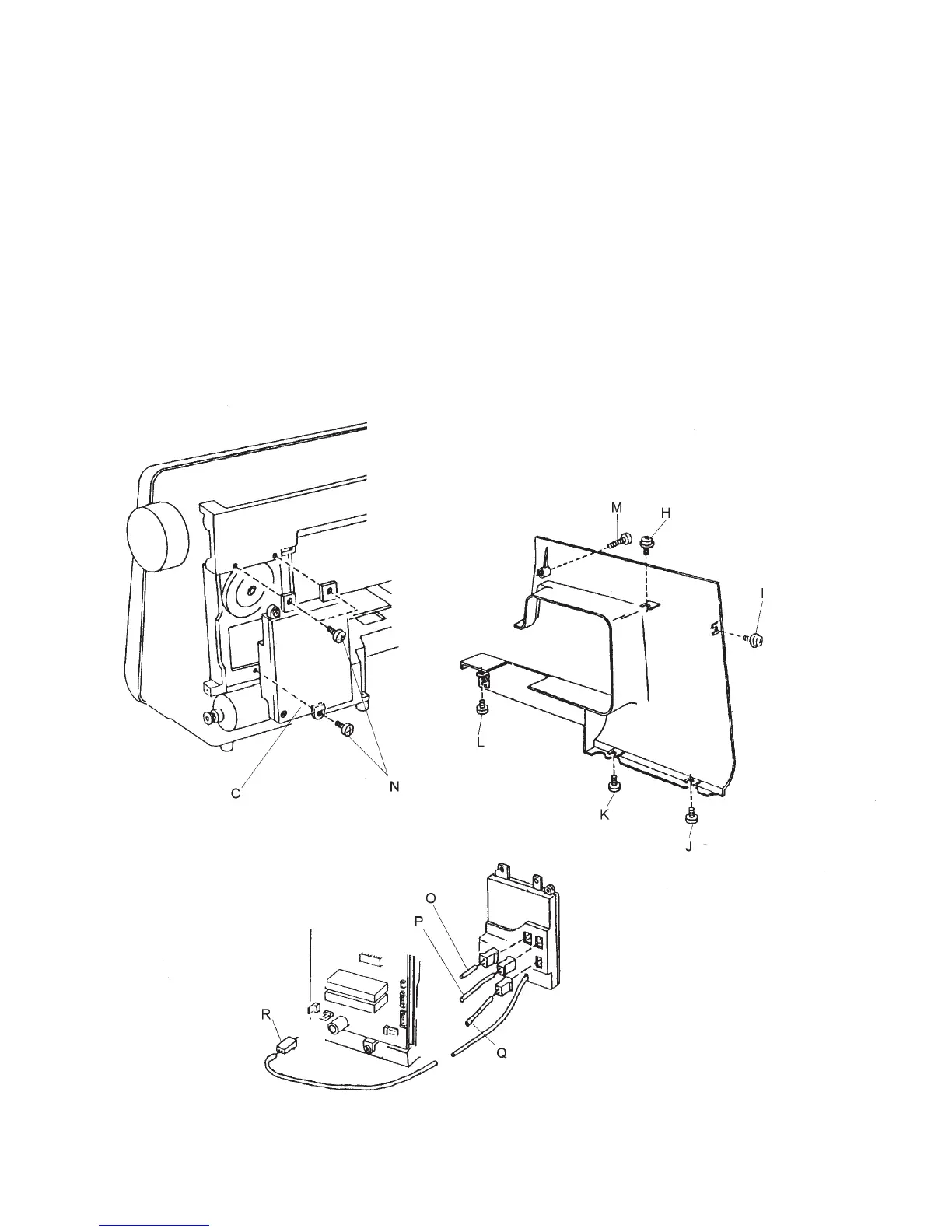

Board C attaching and removing
(TO REMOVE)
1. Remove the front panel unit (See page 4).
2. Loosen screws (H, I & J), and remove screws L and M.
3. Remove the rear cover (W).
4. Pull out the 4 connectors (O, P, Q & R) and remove screws N.
O: Transformer (primary)
P: Machine socket
Q: Transformer (secondary)
5. Remove Board C.
(TO ATTACH)
6. Attach Board C with 3 screws (N) and insert the connectors (O, P, Q & R).
7. Attach the rear cover with 6 screws (H, I, J, K, L & M).
8. Attach the front panel unit.
18
