Janome Memory Craft 3000 Service Manual

To adjust the needle drop
When you select the pattern 01 (straight stitch on center needle position), the needle drop
should be in the center position of the needle hole in the needle plate.

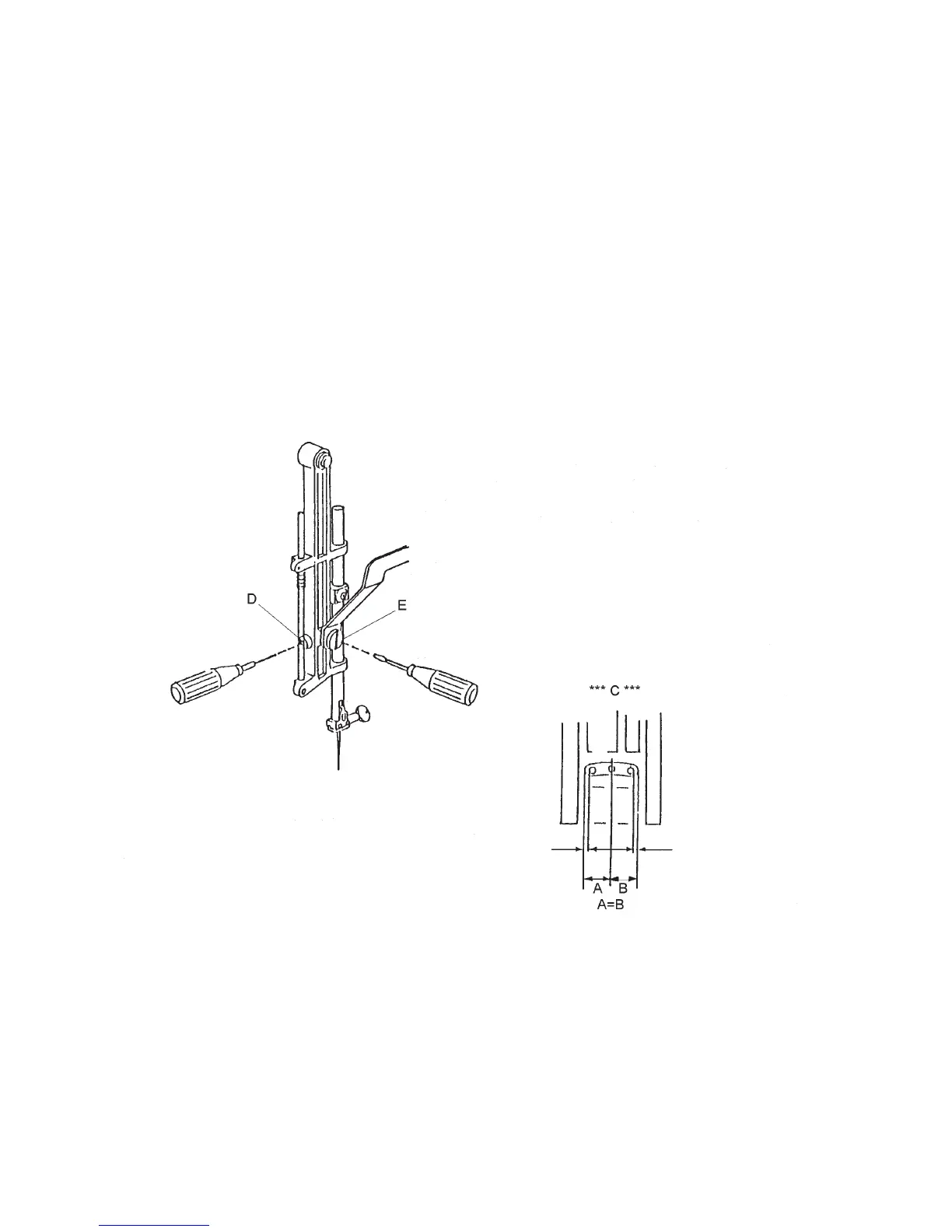

When the needle swings in maximum zigzag width, the distance between both edges of the
needle hole on the needle plate and the needle drop position should be equal as shown below
(*** C ***).
1. Turn on the power switch.
2. Select pattern 01 (straight stitch on center needle position), or pattern 07 (simple zigzag) at
maximum zigzag width.
3. Loosen the set screw (D).
4. Turn the eccentric pin (E) to adjust the needle drop.
5. Tighten the set screw (D).
NOTE: Check the hook timing after this adjustment.
6
