- 102 - UD - 319472KFR EN DE
Housing ABS Choc, yellow, plug-in
IP40
Dimensions
40x96x23 mm
Storage temperature range -30°C to +35°C
Charging temperature range
0°C to +45°C
Complete slow charging time
14 hours
Indicator lights Charging : 1 red light indicator on battery pack
Charge status : 1 red light indicator on transmitter
Charging voltage
10 to 30 VDC
Mechanical, functional and environmental characteristics
5.6-
UDB2 UDB2
UDB2 UDB2
UDB2 Battery pack technical characteristics
5.6.1- Battery pack storage precaution and general information
5.6.2- Precaution when inserting battery pack in transmitter unit
UDB2 battery pack must be stored charged in a proper and dry area with specified temperature
range on above table.
Self-discharge is estimated at 15% the first month and then low (it is mandatory to recharge
the battery pack every 6 months mini.). The number of full charge cycles is 500 minimum
(without damaging the battery pack capacity).
Whenever changing the battery pack, check that it is
properly secured in its housing in the back of the
transmitter.
If not, a type 5 fault caused by power supply micro-
cutouts can occur (following fault list generated by
the transmitter)

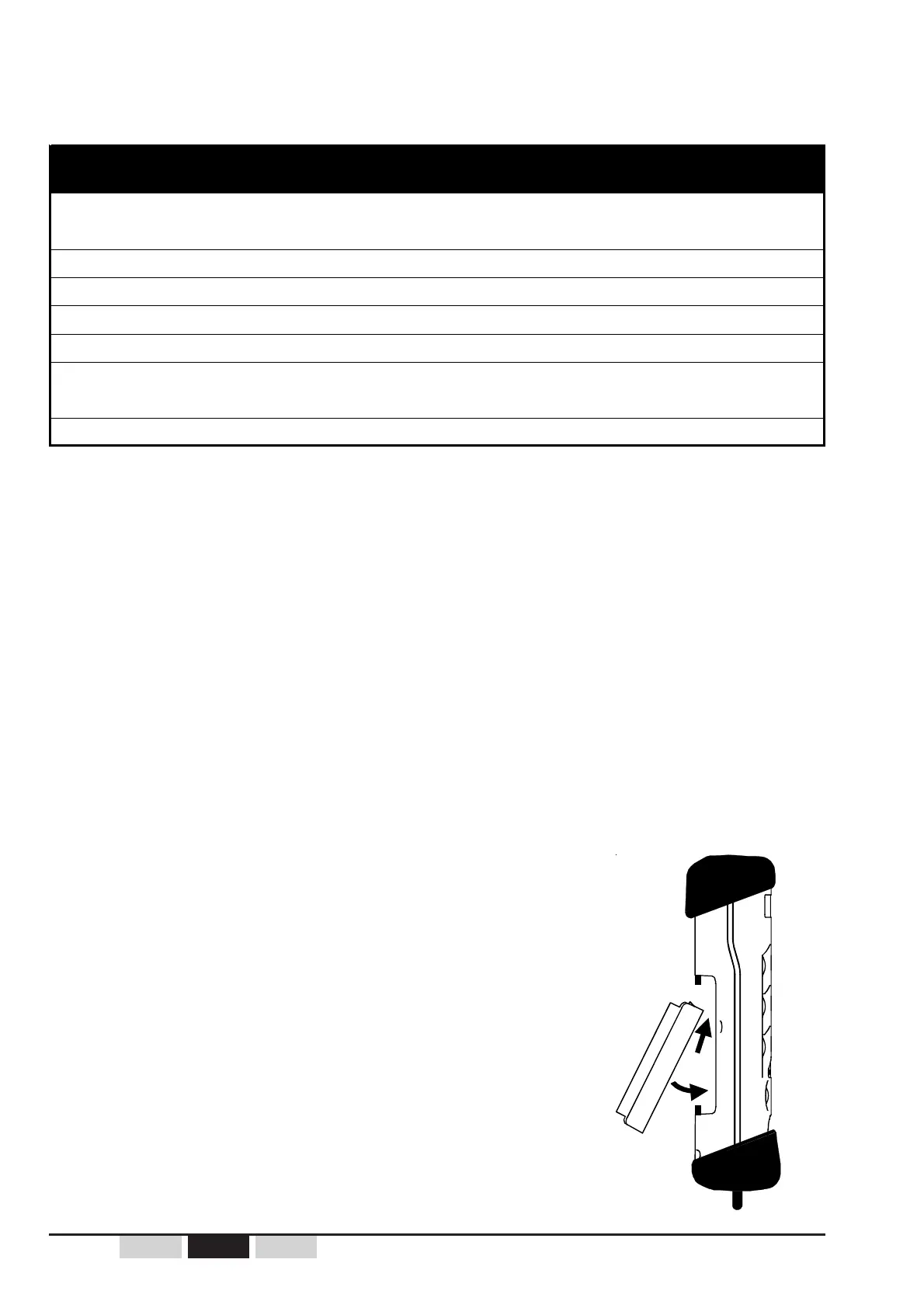

Insertion of battery
pack in the back of
transmitter
