Jay electronique UC Series User Manual

- 66 - UD - 319472KFR EN DE

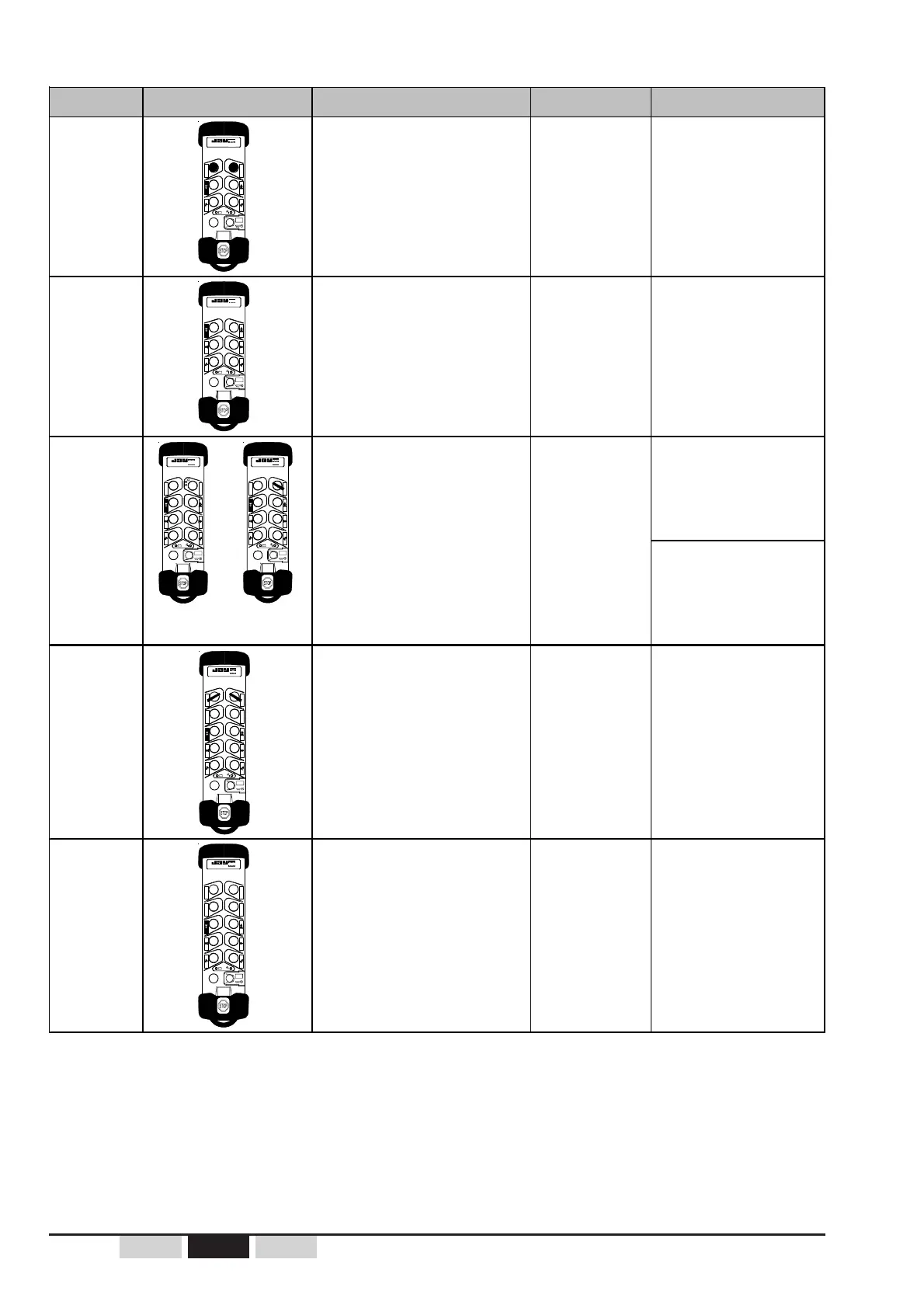

Applications Transmitter front view Transmitter configuration
Receiver
confi
g
uration
Unit references
Monorails
Jib cranes
4 double-speed function buttons
+ 1 "On/Horn" button
+ 1 stop palmswitch button
3 + 6 relays
UD00A

00
+ complementary ref. :

Travelling
cranes
Gantry
cranes
6 double-speed function buttons
+ 1 "On/Horn" button
+ 1 stop palmswitch button
3 + 12 relays
UD11B00
+ complementary ref. :

With electronic switch :
UD21B

00
+ complementary ref. :

With rotary switch :
UD22B00
+ complementary ref. :

Travelling
cranes
Gantry
cranes
6 double-speed function buttons
+ 2 one-speed function pushbuttons
+ 1 rotary switch with 2 fixed positions
+ 1 rotary switch with 3 fixed positions
+ 1 "On/Horn" button
+ 1 stop palmswitch button
3 + 18 relays
UD33C

00
+ complementary ref. :

Travelling
cranes
Gantry
cranes
10 double-speed function buttons
+ 1 "On/Horn" button
+ 1 stop palmswitch button
3 + 18 relays
UD31C00
+ complementary ref. :

Travelling
cranes
Gantry
cranes
6 double-speed function buttons
+ 1 one-speed function pushbutton
+ 1 rotary switch or electronic switch with
3 fixed positions
+ 1 "On/Horn" button
+ 1 stop palmswitch button
3 + 12 relays
2.3.5- Standard units (433-434MHz bands, radio channel number : 01)
él ectr oni qu e
él ectr oni que
électronique
1
électronique
1
électronique
12
34
électronique
1 2
Version with
electronic
switch
Version with
rotary switch
A standard unit comprises :
 1 transmitter with 1 battery pack UDB2 +1
electronic key + 2 label kits (UWE202 and
UWE207)
 1 additional battery pack UDB2
 1 receiver with VUB084 antenna + 1 wiring
accessory for common line UDWR12
 1 charger UBCU (for battery pack charging)
 1 installation and user manual
 0, 1 or 2 UDF IR modules (according to ref.)


 Receiver power
supply :
4 : 12 - 24 VDC
A : 24 - 48 VAC
B : 115 - 230 VAC


 IR Start-up validation
option :
0 : no
1 : yes, with 2 UDF IR modules
E : yes, with 1 UDF IR module


 Programming of
interlocking :
see §2.3.2 (receiver
complement)


 Programming of
two-step pushbuttons
(BPDV) :
see §2.3.2 (receiver
complement)


 Programming of
switchs with 3 positions
(COM3/COM3R/BPTR) :
see §2.3.2 (receiver
complement)
