Button
n°1
Button
n°2
"Locking-
unlocking" t he
electronic key
Working
frequency
programming
"Dead man"
function time
programming
Copying
electronic key
identity code in
transmitter
BPSV or
BPDV
BPSV or
BPDV
YES YES YES YES
BPSV or
BPDV
Other * NO NO YES NO
NO NO NO NO
* : COM2, COM3, COM3R, BPTR or Cover
Other button type *

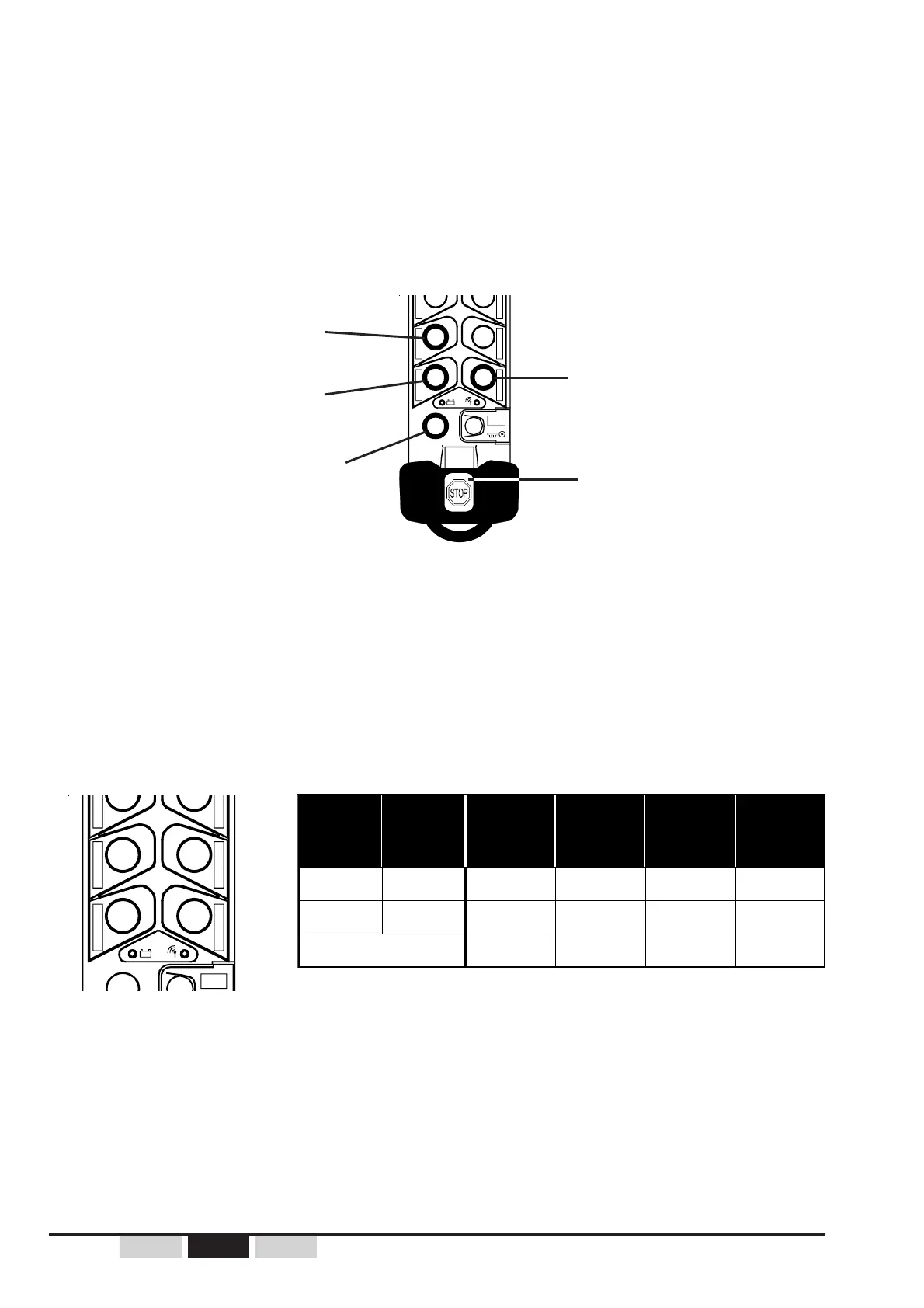

Programming limitations by the button type implanted at position «button n°1»,
«button n°2» and «button n°3» on the UDE transmitter :
n°1 n°2
n°5
n°6
n°3 n°4
The following parameters are configurable from the UDE transmitter unit :
• Transmit frequency (radio channel number selection).
• The "Dead man" function duration (01 to 98 minutes and infinite).
• Copy of electronic key identity code to transmitter memory.
Programming
button
n°1
Programming
button
n°2
stop plamswitch button
Programming
button
n°3
In order for the four programming functions to be programmable (locking-unlocking the electronic
key, frequency, "Dead man" duration and identity code copy), button n°1 and button n°2 must be
single or double speed pushbuttons (BPSV or BPDV).
If not, certain functions may not be accessible to the user. The table below shows the programming
modes available in accordance with the buttons n°1 and n°2 used :
3.5- UD system configuration and parameter setting
These configuration operations use procedures implementing buttons n°1, n°2, n°3, stop plamswitch
and "On/Horn" without having to open the transmitter or the receiver.
"On/Horn" button
(Can replace programming
button n°3 in certain cases, see
below)
n°1 n°2
n5
n6
n°3 n°4
If programing button n°3 is not of BPSV or BPDV type, the "On/Horn" button takes then the role
of programming button, and substitutes itself for button n°3.
Configuration parameters which cannot be programmed by the user will be taken into account on
the sales order and will not be re-configurable once the transmitter is manufactured.
However, it is always possible to order an electronic key containing the desired parameters
(reference: UDWE22)
By a specific operating mode, the person in charge of the equipment can lock or unlock the
access to the programming of Transmit frequency and "Dead man" function duration by locking or
unlockin the electronic key (see §3.5.1).
