Transmitter state
(The transmitter stop
palmswitch is unlocked)
Red
indicator light
Green
indicator light
Possible causes of failure Possible remedies
Before or after
"On/horn" button is
pressed
- Battery pack is discharged or disconnected
- Internal electronic failure
- Check battery pack load
or
- Contact the technical person in charge of
the installation
Before or after
"On/horn" button is
pressed
- Electronic key is not connected to
transmitter
- Bad connection of the electronic key
- Electronic key failure
- Internal electronic failure
- Install electronic key on tranmitter before
powering up the transmitter
or
- Contact the technical person in charge of
the installation
Before or after
"On/horn" button is
pressed
- Access to the transmitter programming is
prohibited (the electronic key is locked)
- If the transmit frequency or "Dead man"
function duration must be changed, the
electronic key must be unlocked. Follow
procedure described in §3.5.1.
or
- Contact the technical person in charge of
the installation
Before "On/horn"
button is pressed
- The transmitter identity code is different
from that contained in the electronic key
- Internal electronic failure
- Reprogramming is required, see
procedure in §3.5.4.
or
- Contact the technical person in charge of
the installation
Before or after
"On/horn" button is
pressed
- The button configuration is different from
that contained in the electronic and the
physical configuration on the transmitter
- One or several function buttons are
defective
- Internal electronic failure
- Contact the technical person in charge of
the installation
Before "On/horn"
button is pressed
- Micro power cuts due to a bad battery pack
connection
- Internal electronic failure
- Check that battery pack is correctly
inserted in transmitter housing
or
- Contact the technical person in charge of
the installation
Before "On/horn"
button is pressed
- Internal electronic failure
- Contact the technical person in charge of
the installation
Before "On/horn"
button is pressed
- Internal electronic failure
- Contact the technical person in charge of
the installation
Before "On/horn"
button is pressed
- Internal electronic failure
- Contact the technical person in charge of
the installation
Transmitter state
(stop palmswitch button
unlocked)
Red
indicator light
Green
indicator light
Before "On/horn"
button is pressed
OFF ON
Before "On/horn"
button is pressed
Flashes SLOW ON
Before "On/horn"
button is pressed
Flashes FAST ON
After "On/horn" button
is pressed
OFF Flashes
After "On/horn" button
is pressed
Flashes FAST Flashes
8 flashes
Error messages
continuously OFF
continuously ON
3 flashes
4 flashes
flash in a alternative way
5 flashes
6 flashes
7 flashes
Battery pack charge level
Function or corresponding message
Radio transmission
Battery pack charge < or = LOW BATT level
Battery pack charge > 90%
90% > Battery pack charge > LOW BATT level
Battery pack charge < or = LOW BATT level
Radio transmission
Battery pack charge > LOW BATT level

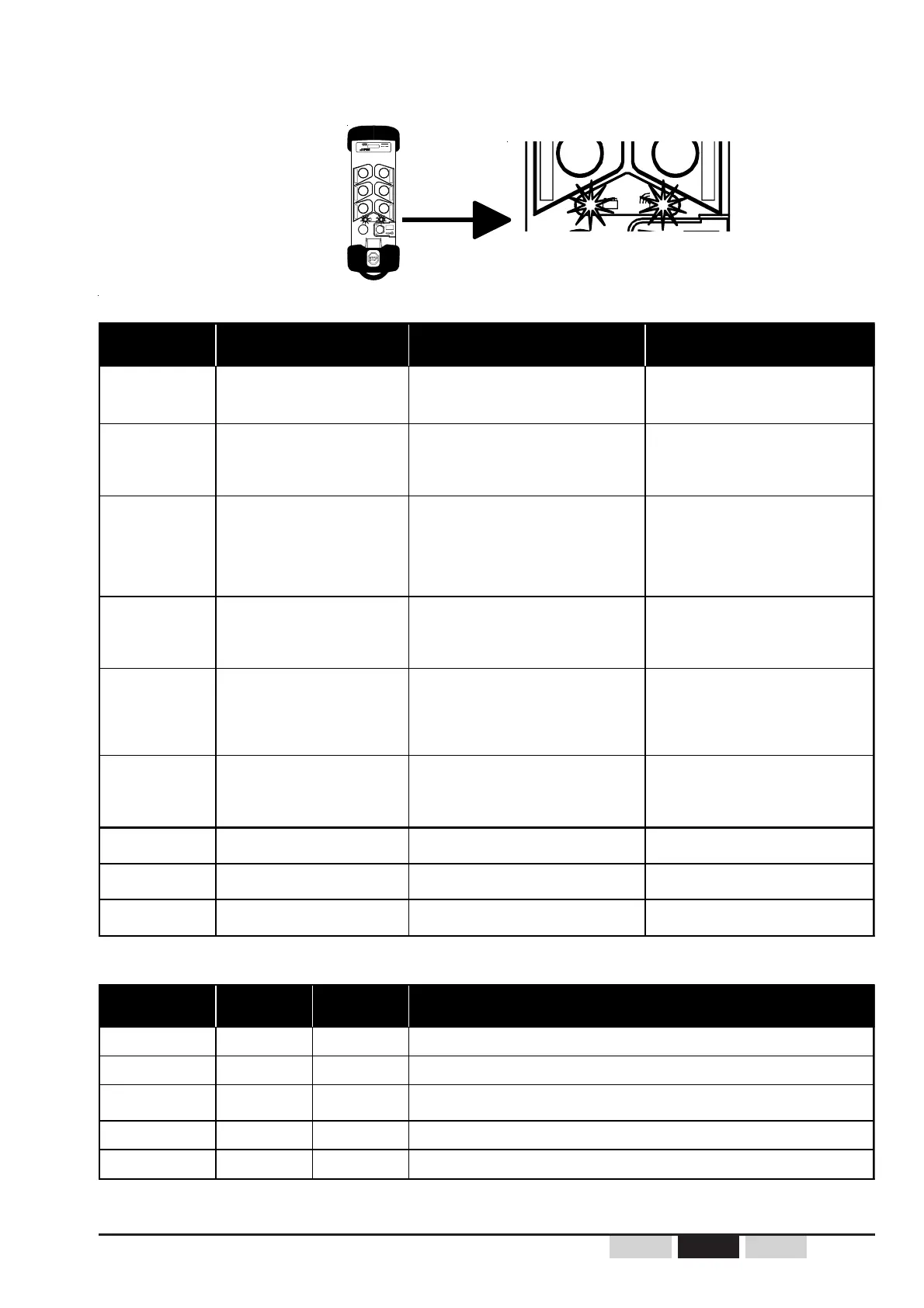

4.3- Product indicator lights function
4.3.1 UDE transmitter indicator lights
«LOW BATT level» = low battery (battery pack charge level lower than 10%), the battery pack must be reloaded.
