Jay electronique UC Series User Manual

UD - 319472K - 69 -FRENDE

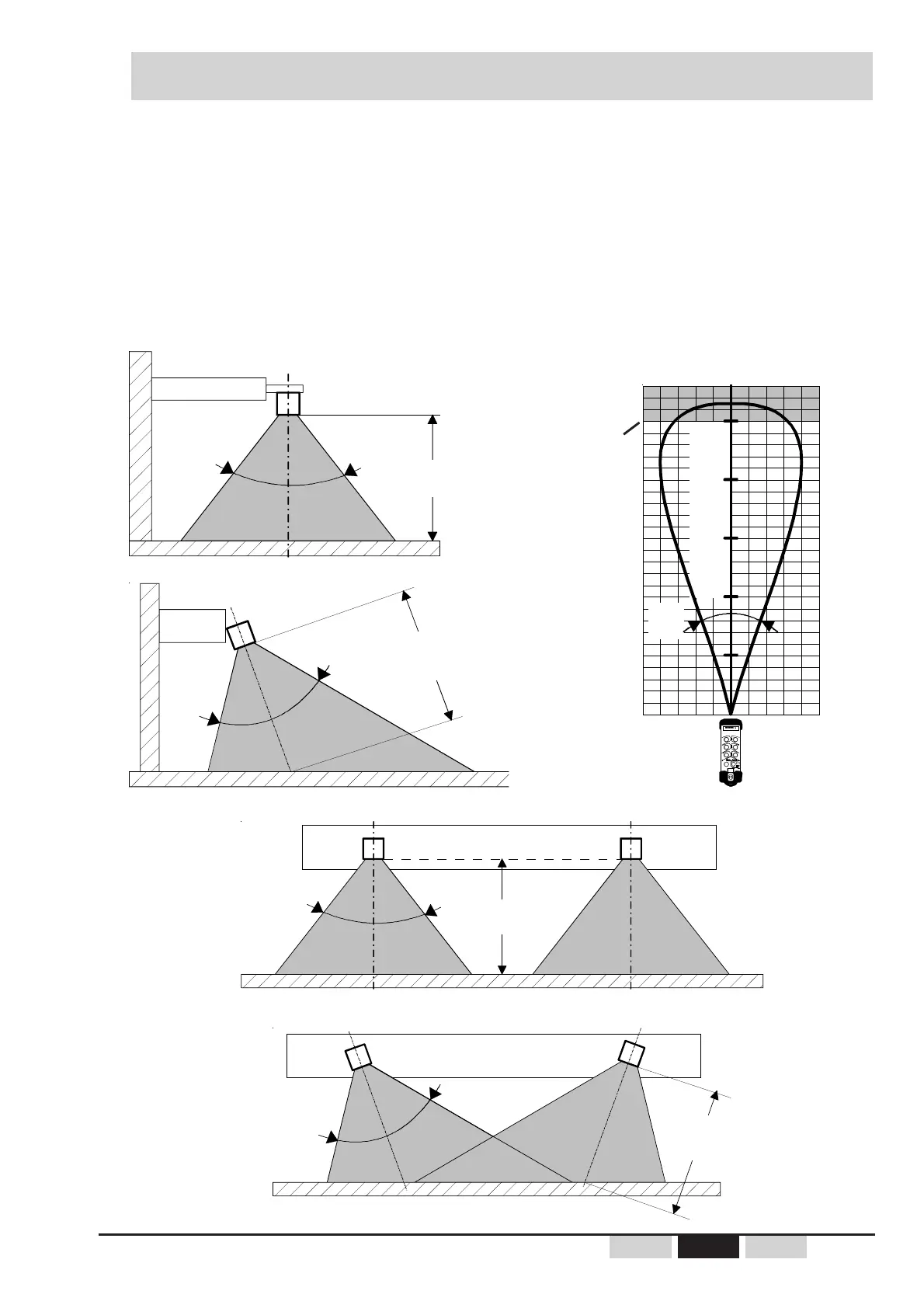

UDF infrared module position for ««start-up by IR validation» option
25
20
15
10
5
20°
UDE
électronique
60°
UDF UDF
60°
UDF UDF
Startup area
(active infrared area)
Range (m)
Max. range
recommanded
Fig. A
Startu area
60°
UDF
60°
UDF
Max range
see fig.A
Max range
see fig.A
Max range
see fig.A
Max range
see fig.A
IR field
width
(m)
To strengthen the safety of the remote-controlled equipment, the use of an infrared validation at
the start-up can be used.
- To start the unit, the operator is required to point the transmitter toward the UDF IR module
installed on the equipment to be controlled (see positioning below). This ensures an error-free
match-up between the transmitter and the equipment to be controlled.
- The IR start-up field of action has a range of 0 to 25 m (see Fig. A).
- Up to 3 UDF IR modules can be connected to the UDR receiver.
Startup area
Startup area
Startup area
Startup area
Startup area
