UD - 319472K - 71 -FRENDE
RK
RS1
RS2
F1
F2
A
B
C
2223 21 20
UDR**40* - ***
12 - 24 VDC
+ 12VD
C
+ 24VDC
0V
2223 21 20
UDR**A0* - ***
24/48 VAC
24VAC
48VAC
N
2223 21 20
UDR**B0* - ***
115/230 VAC
115VAC
Caution: The electrical connections should be made such that when the main switch
is off, the UD remote control receiver is also deactivated.

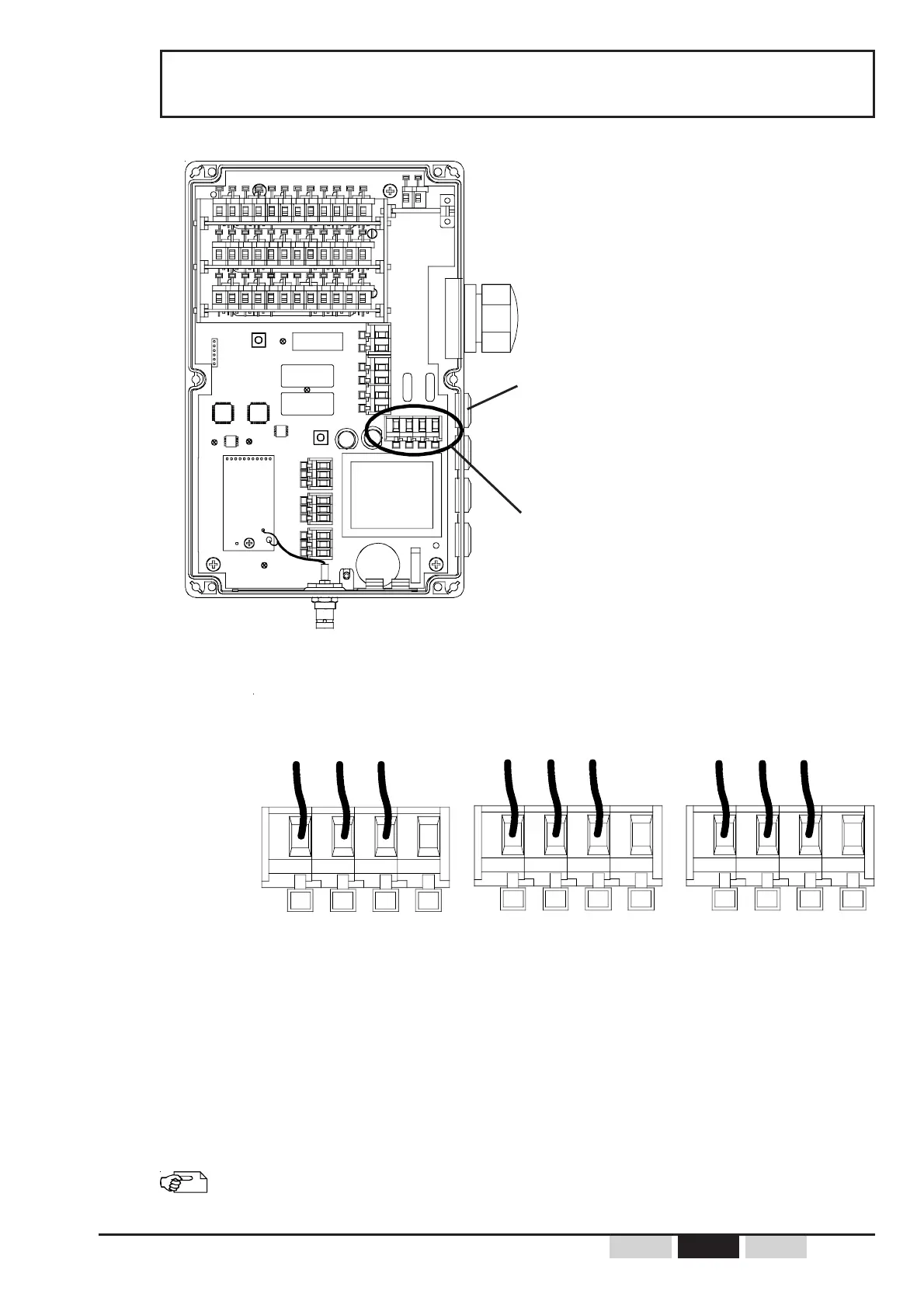

Power supply terminals strips
Advised way for power supply cable
UDR receiver
reference :
For the wiring and to determine the correspondence between the action on a function button or
switch and the relay controlled, refer to the configuration table supplied with the receiver (label
on housing cover) and appendix A.
See wiring example in appendix D
